Understand the Micsig MHO14 Series High-Resolution Tablet Oscilloscopes in One Article

Updated:2025-06-25



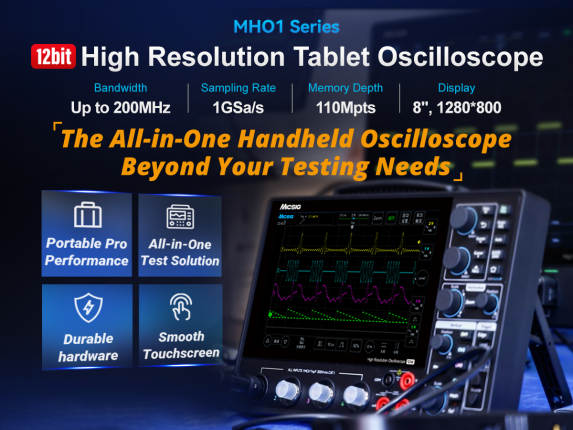

Since Micsig's disruptive invention of the first tablet oscilloscope in 2012, tablet oscilloscopes have undergone six generations of development and transformation. The newly released MHO14 series high-resolution tablet oscilloscopes this year incorporate optimization suggestions put forward by engineers from various fields over the past decade. We believe it will surely meet all your expectations for professional-grade portable oscilloscopes (handheld oscilloscopes )!


This article will help you quickly get to know it.

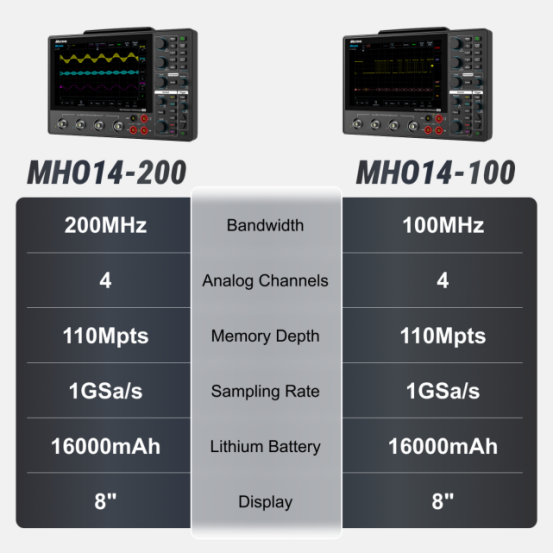

Main Performance Parameters




1. 12-bit High-Resolution Display




Vertical ResolutionEquipped with a 12-bit ADC, it provides 4096-level quantization precision, 16 times that of traditional 8-bit oscilloscopes, significantly enhancing the ability to present small-signal details.

Sampling RateAchieves 1 GSa/s real-time sampling in single-channel mode.

Storage DepthThe single-channel storage depth reaches 110 Mpts. When four channels are synchronously acquired, each channel has 27.5 Mpts. It supports up to 10,000 segments of segmented storage to cyclically capture occasional abnormal signals.

DC Gain Accuracy≤1%, voltage measurement error ≤1% (DC)/1.5% (AC 50Hz~10kHz), providing reliable data support for R&D debugging.

Accurate Small-Signal CaptureThe full-range (1mV/div~10V/div) background noise is ≤150μVrms, which can clearly present details such as weak sensor signals and power supply ripples.



2. Portable Design





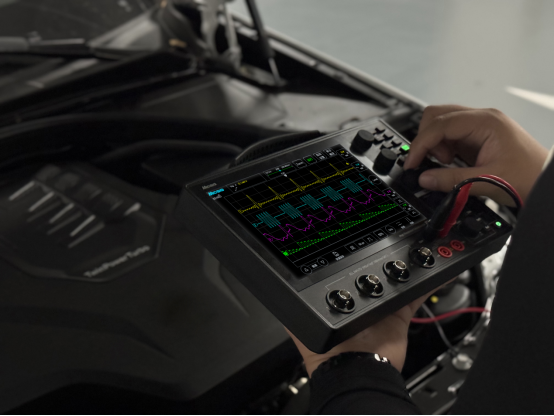

Ultimate PortabilityDimensions: 265×174×31mm (thickness: only 3.1cm, equivalent to the thickness of a book), net weight 1.73kg. It allows easy single-hand holding and fits into a backpack without taking up much space, making it the top choice for professional-grade portable oscilloscopes during fieldwork.

Protection DesignThe MHO14 Series features an expanded soft rubber coverage area. Protective rubber is applied not only to critical sections but also extends to the bottom of the device, forming a more comprehensive shock-absorbing buffer layer.

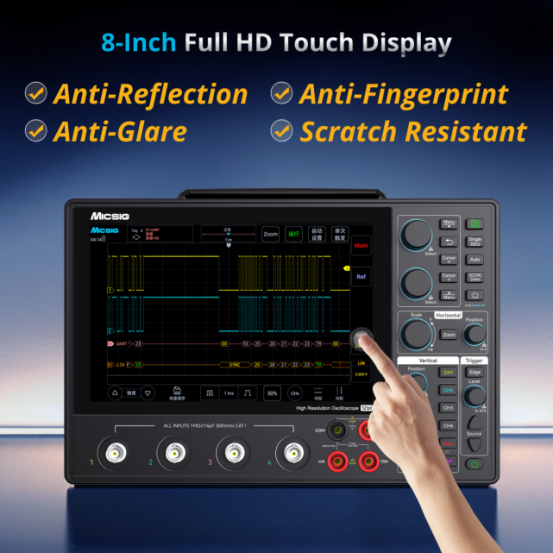

Display SystemEquipped with an 8-inch high-definition touchscreen (1280×800 resolution) that is anti-reflective, anti-fingerprint, anti-glare, and (non-marking), ensuring delicate and clear waveform display.

Battery and Interfaces:

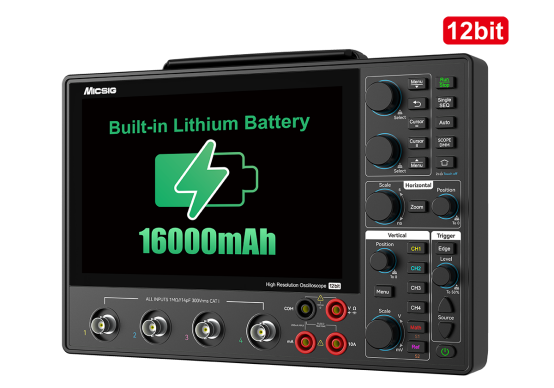

Built-in Rechargeable Battery16000mAh lithium-ion battery (3.7V) with cyclic charging capability.

Power lock for safer carryingActivate the power lock by long-pressing the power button for 3 seconds, which prevents accidental startup during transportation or movement. When the power lock is disabled, the oscilloscope can be turned on/off and operated normally, balancing safety and convenience.

Multiple Charging Solutions: Type-C Interface: Supports 5V/2A fast charging and is compatible with mobile power banks for emergency power supply, freeing users from power cord constraints.12V DC Adapter: Supports global voltage (100-240V~) and allows simultaneous charging and operation to ensure stable testing.

Interfaces: Equipped with USB 3.0 Host (for connecting USB drives /printers),Type-C(for data transmission/charging),LAN(for remote control), HDMI (for 1080P screen projection), and Trigger out(for calibration signal output), meeting connectivity needs in diverse scenarios.

Remote control: Supports the SCPI protocol for seamless integration with LabVIEW/Matlab automated testing systems.The mobile APP (Micsig Connect) enables remote control and real-time synchronization of the oscilloscope interface.

Three Operation Modes: Features high-quality knobs and buttons combined with full-touch operation. The touchscreen offers sensitive and fast response.

Multiple Featured Quick Functions: One-key full-screen display of all menus, quick setup of channel functions, and fast switching between channel settings.Eight customizable function keys for quick access to high-frequency operations such as trigger modes, storage, menus, and decoding.Supports memory of the latest 10 groups of configurations and one-key screenshot (saving to 64G built-in storage or USB drive), facilitating fast switching between testing scenarios, data saving, and transmission.

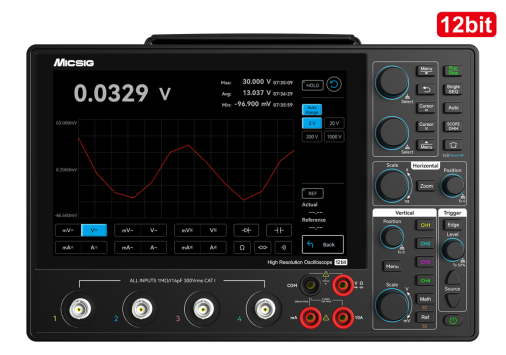

3.Integrated 4½-digit Multimeter (New Function)






Partial Specifications:


DC Voltage: DCV ranges: 2V, 20V, 200V, 1000V with accuracy of ±0.05%; DCmV ranges: 20mV, 200mV with accuracy of ±0.1%

AC Voltage: ACV ranges: 2V, 20V, 200V, 750V with accuracy of ±0.5%; ACmV ranges: 20mV, 200mV with accuracy of ±0.5%

DC Current: DCA ranges: 2A, 10A with accuracy of ±0.5%;DCmA ranges: 20mA, 200mA with the same accuracy.

AC Current: ACA ranges: 2A, 10A with accuracy of ±0.8%;ACmA ranges: 20mA, 200mA with accuracy of ±0.8%.

Capacitance Measurement: 0 - 10nF range accuracy: ±5% ;10nF - 1mF range accuracy: ±2%;1mF - 100mF range accuracy: ±5% .

Additional practical features: Multimeter trend graph function,Low-power online resistance measurement,Continuity test with buzzer alarm when resistance < 50Ω and overload (OL) display when > 200Ω,Diode test range from 0.0000V to 3.0000V, showing OL for readings above 3.0V.


4.Quick Introduction to Oscilloscope Functions







Basic Analysis Features:


Inheriting Micsig's exclusive Sigtest UI professional system for testing instruments, the interface is simple and clear, enabling users to learn quickly without memorizing any menu operation options.


Automatic MeasurementSupports automatic measurement of over 30 parameters such as peak-to-peak value, RMS value, rise time, and duty cycle. It can simultaneously calculate the average/maximum/minimum values of 10 parameters.

Mathematical OperationsProvides functions like FFT (360k points adjustable, supporting rectangular window/Hamming window), integration/differentiation, and custom function expressions (e.g., sqrt/abs/intg) to meet diverse analysis needs.

Basic TriggerSupports trigger modes such as edge, pulse width, amplitude dropout, and slope to accurately capture target signals.

Logical Trigger: Requires optional digital channels.

Serial Trigger: Supports protocols like UART/SPI/I²C/CAN/LIN, suitable for debugging complex signals.

Storage & Utilities64G large storage supports multiple saving methods for images, videos, waveform data, etc.Built-in electronic tools: user manual, calculator, file management, and more.

Hardware Digital FilteringSupports 20MHz bandwidth limiting and high-pass/low-pass filtering (adjustable cutoff frequency), effectively suppressing power frequency interference and high-frequency noise to improve signal-to-noise ratio.

Serial bus DecodeStandard Decoding: UART/SPI/I²C with automatic baud rate identification, displaying decoded data synchronized with waveformsOptional Decoding: CAN/CAN FD/LIN/ARINC429 and other protocols to meet bus debugging needs in automotive electronics, avionics, and other fields.



5. Professional Carry Bag/Suitcase Set


Provide handbag sets and suitcase sets according to requirements!

Note: This article only describes partial functions of the MHO14. For a detailed breakdown of functions, please follow Micsig's official platforms.
