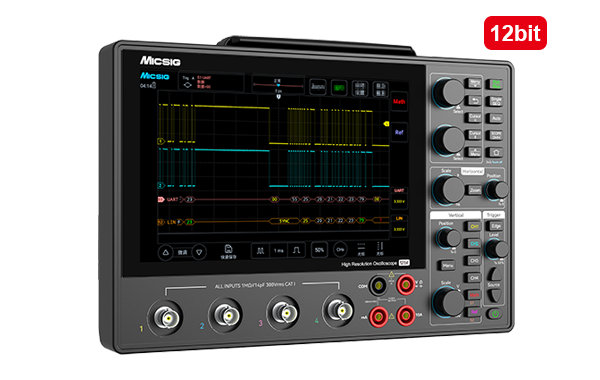

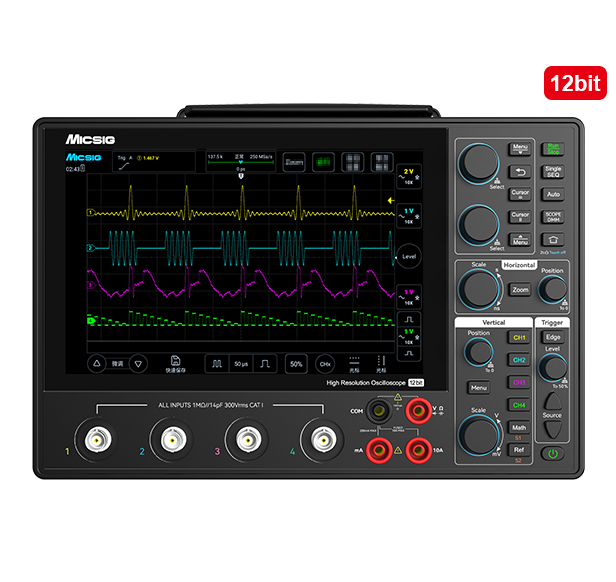

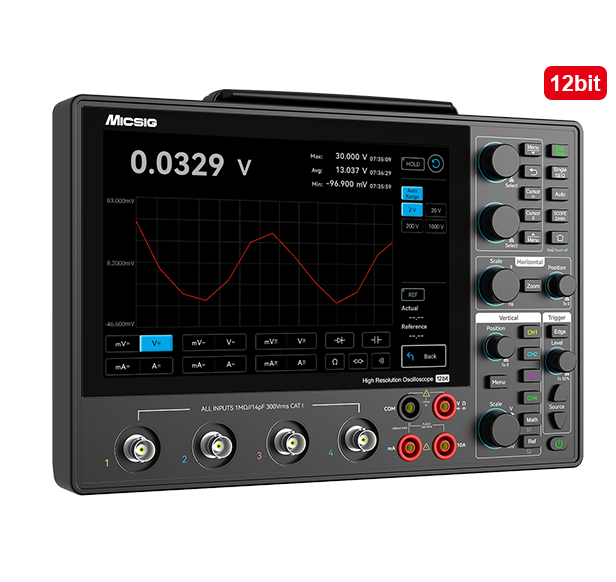

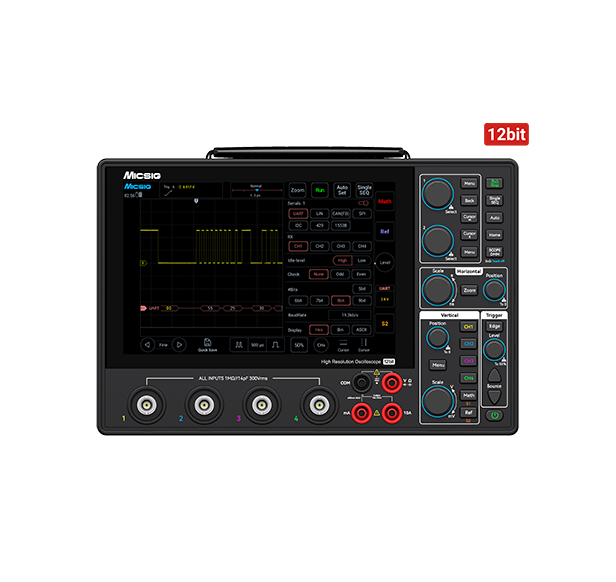

Micsig MHO1 series is an ultra-portable professional-grade high-resolution oscilloscope, equipped with a 12-bit high-precision ADC, featuring a bandwidth of up to 200MHz, 4 analog channels, a real-time sampling rate of 1GSa/s, and a storage depth of 110Mpts. These high-performance parameters ensure that every measurement is accurate and provides a solid foundation for in-depth signal analysis. With a body thickness of only 3.1 cm, it can be easily placed in a backpack for efficient testing anytime, anywhere. It is equipped with an 8-inch high-definition anti-glare touch screen with a resolution of up to 1280*800, offering a delicate and clear picture and responsive touch, bringing users an ultimate operating experience.

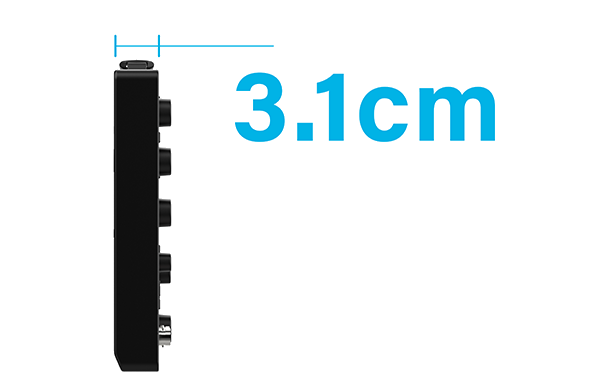

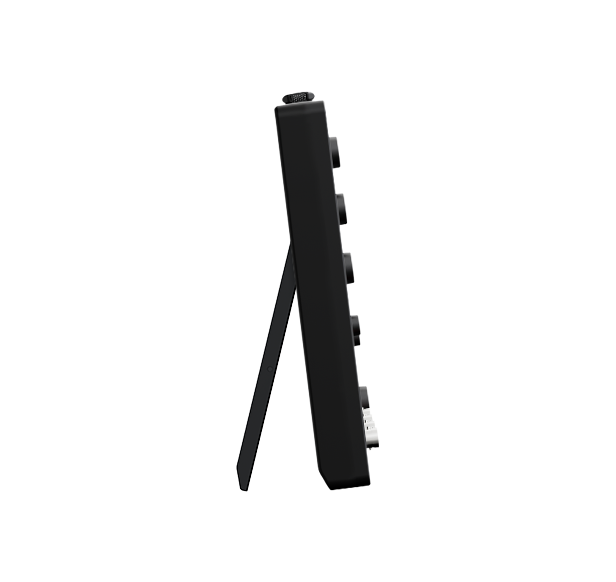

Ultra-thin 3.1cm Body

The MHO1 series has a body thickness of only 3.1cm, which is very compact and small, easily fitting into your backpack for efficient testing anytime, anywhere.

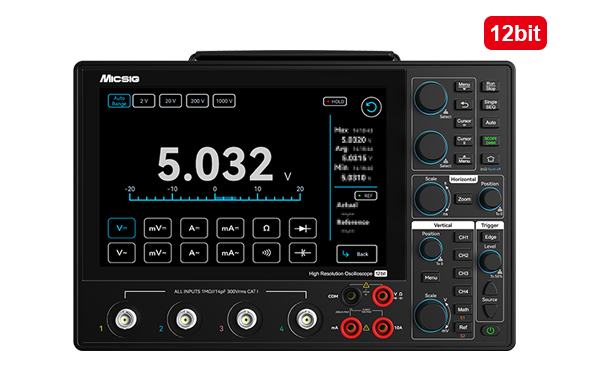

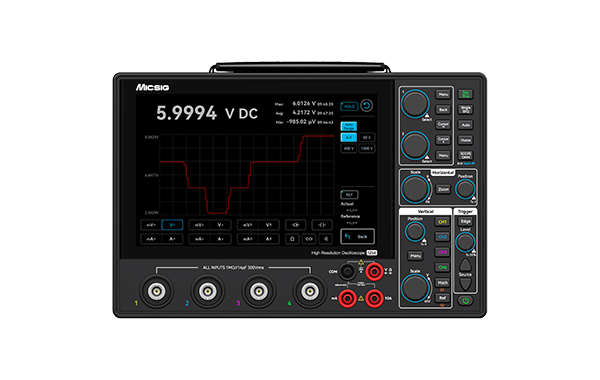

Integrated Multimeter Function

The MHO1 series oscilloscope innovatively incorporates a 4½-digit multimeter function, supporting a variety of measurements including voltage, current, resistance, continuity testing, diode testing, and capacitance measurement. There's no need to carry an additional multimeter, as it can meet a diverse range of testing requirements. Furthermore, the system supports simultaneous operation of the oscilloscope and multimeter with seamless switching, greatly enhancing on-site work efficiency and convenience.

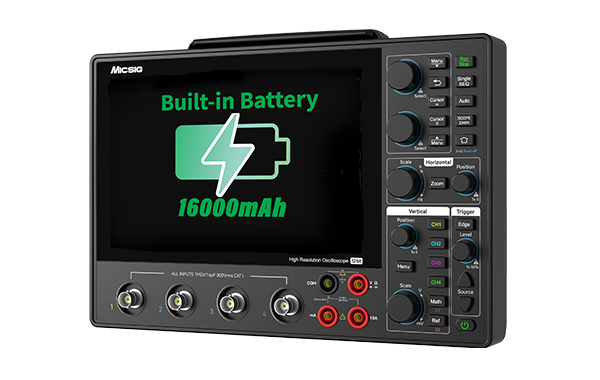

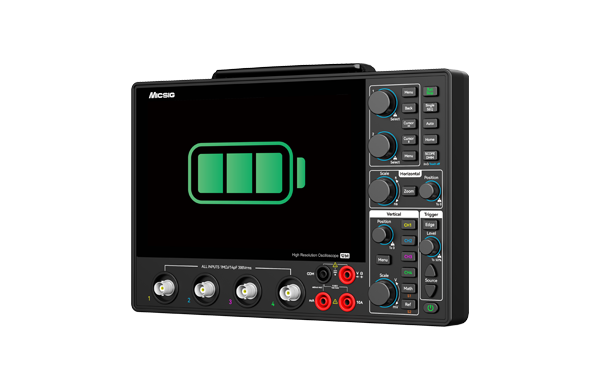

Built-in Battery for Ultimate Portability

Despite its ultra-thin design, the MHO1 series features a soft rubber protective casing that not only offers a comfortable grip but also excellent protective capabilities. Equipped with a 16000mAh high-capacity, long-life lithium-ion battery, it can withstand over 1000 charge-discharge cycles and continue working for up to 4 hours without an external power source. Additionally, it supports charging via power banks, completely eliminating worries about battery life and making testing work more worry-free.

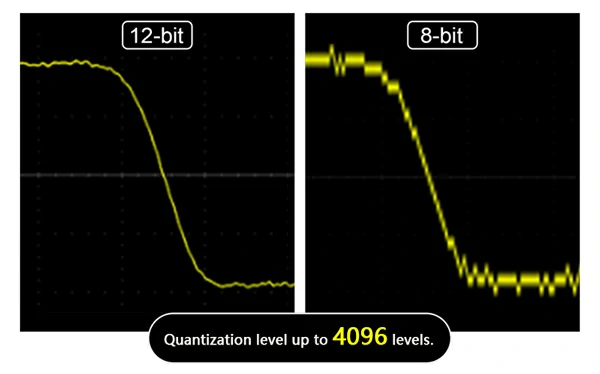

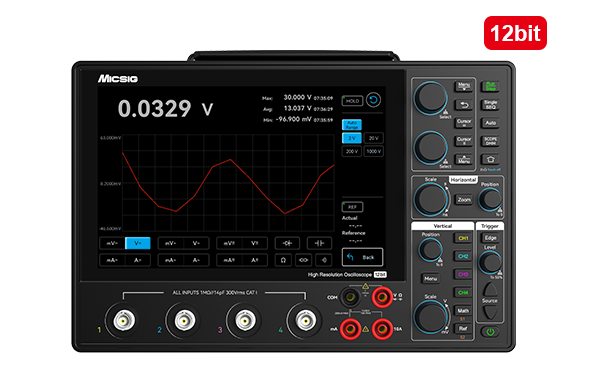

12-Bit Vertical Resolution

The MHO1 series utilizes a 12-bit high-resolution ADC, offering up to 4096 quantization levels, which is 16 times that of a traditional 8-bit ADC. This allows users to observe waveform details more completely and clearly.

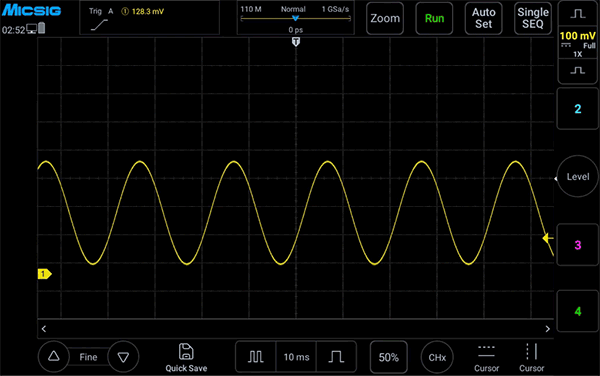

User-Friendly UI for Quick Start

Three Operation Modes: Fully Touchscreen, Physical Buttons and Knobs, and Hybrid Operation; Equipped with the SigTest UI, a Specialized Instrument System Evolved from Thousands of Engineer User Suggestions, All Operations Can Be Completed Swiftly, Simplifying Complex Tasks.

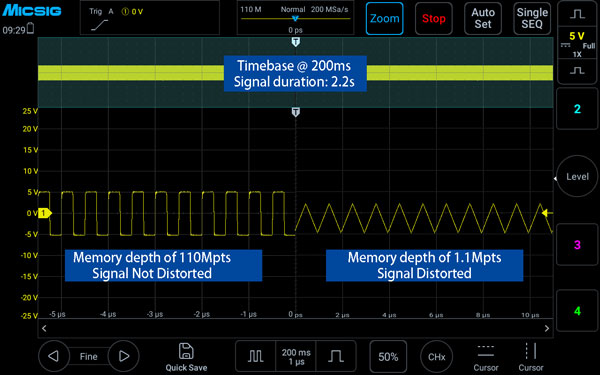

Deep Storage, Standard Segmented Storage

Standard segmented storage divides limited storage space into multiple small segments, gathering multiple trigger events within a single storage space. With convenient analysis and viewing functions, it allows for both integrated and individual display, making analysis and positioning more accurate and efficient, turning "finding a needle in a haystack" into a possibility.
