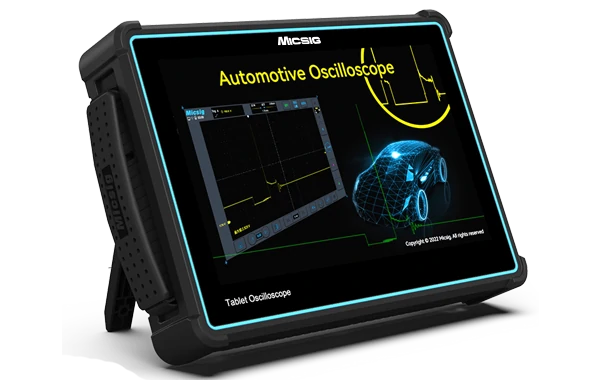

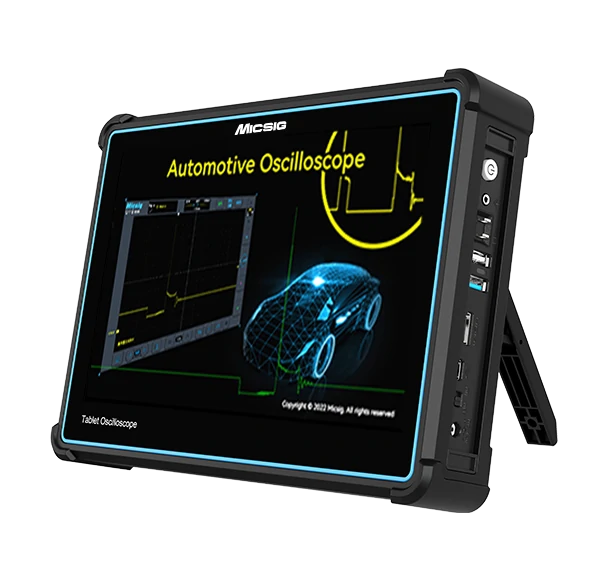

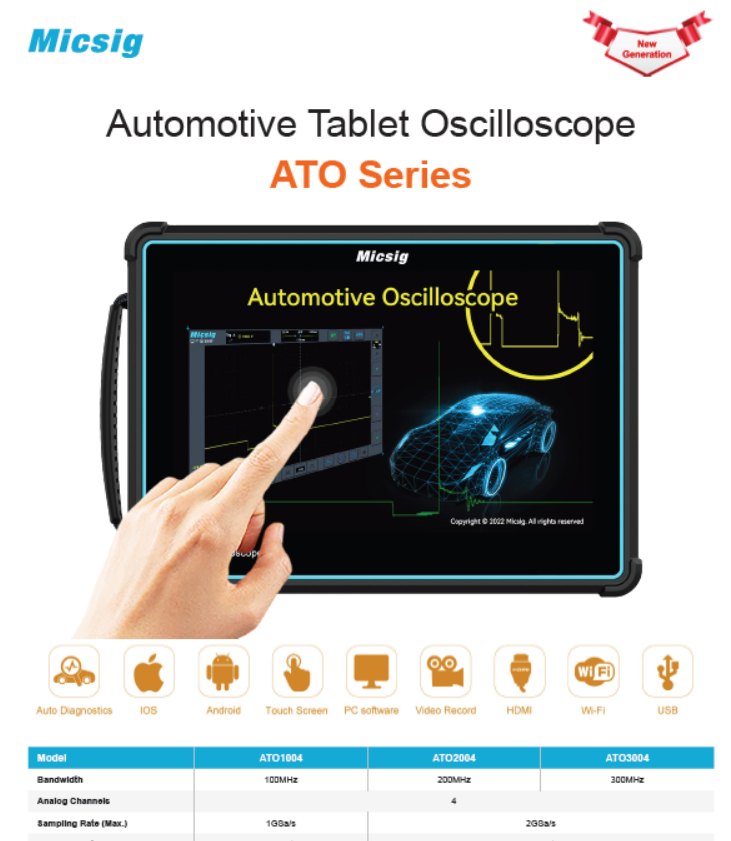

Automotive Oscilloscope ATO Series

Bandwidth:300MHz

Sampling Rate:2GSa/s

Memory Depth:220Mpts

Channels:4CH

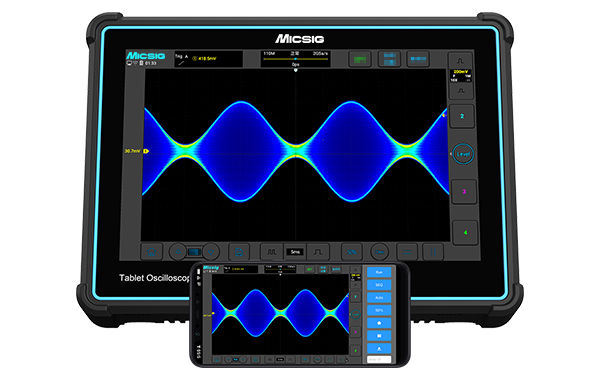

Automotive Oscilloscope ATO Series

Bandwidth:300MHz

Sampling Rate:2GSa/s

Memory Depth:220Mpts

Channels:4CH

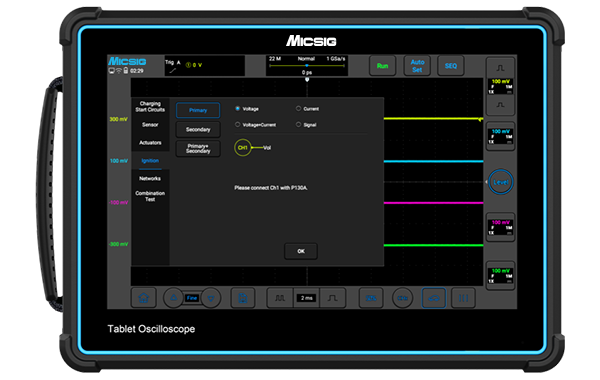

Charging / Start Circuit Tests


Support 12V & 24V charging/start, Charging Ripple, Cranking Current and other tests

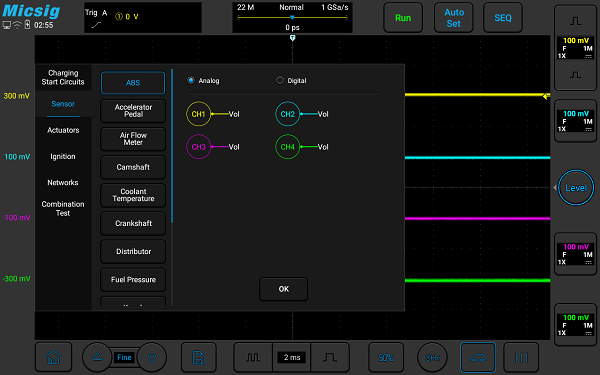

Various Sensor Tests


Supports testing of ABS, Accelerator Pedal, Throttle Position, Fuel Pressure, Air Flow meter, Crankshaft, Camshaft, Knock, MAP, etc.

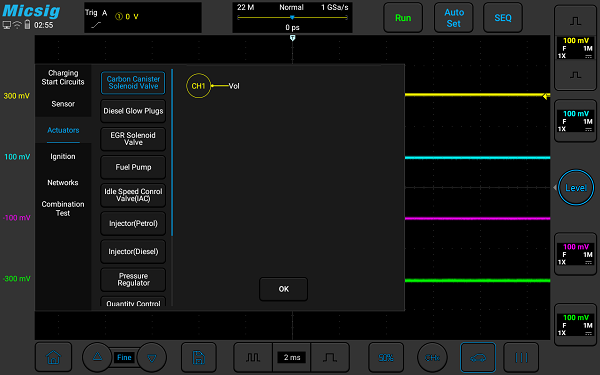

Actuators


One-press to get signals, Fast and Easy.

Support various Actuator tests: multiple fuel injector voltages and currents, fan control signals, variable valve timing, carbon canister solenoid valves, EGR solenoid valves, etc.

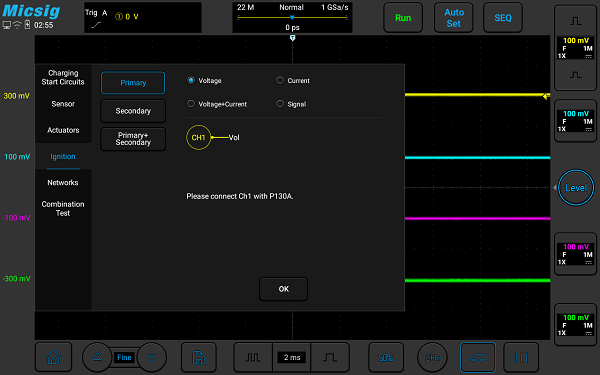

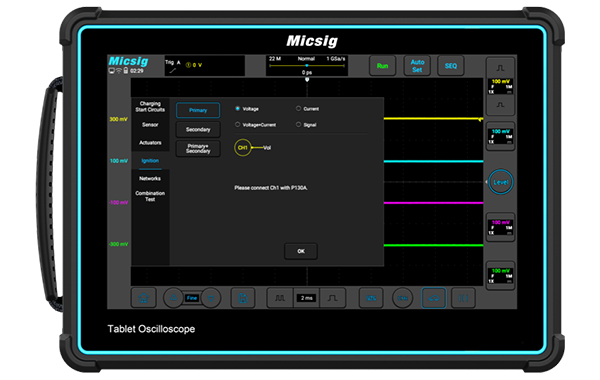

Ignition


Including Primary ignition, Secondary ignition, and combined Primary+Secondary ignition tests.

Network


CAN (CAN High / CAN Low), CAN FD, LIN, FlexRay, and K line

Combination Tests


Multiple channels of oscilloscope can be measured together to perform a variety of combined tests, such as the combined test of the Crankshaft and the Camshaft, or the combined test of the Primary Ignition and the Fuel Injector Voltage, etc.

Charging / Start Circuit Tests

Support 12V & 24V charging/start, Charging Ripple, Cranking Current and other tests.


Various Sensor Tests

Supports testing of ABS, Accelerator Pedal, Throttle Position, Fuel Pressure, Air Flow meter, Crankshaft, Camshaft, Knock, MAP, etc.


Actuators

One-press to get signals, Fast and Easy.

Support various Actuator tests: multiple fuel injector voltages and currents, fan control signals, variable valve timing, carbon canister solenoid valves, EGR solenoid valves, etc.


Ignition

Including Primary ignition, Secondary ignition, and combined Primary+Secondary ignition tests.



Network

CAN (CAN High / CAN Low), CAN FD, LIN, FlexRay, and K line.


Combination Tests

Multiple channels of oscilloscope can be measured together to perform a variety of combined tests, such as the combined test of the Crankshaft and the Camshaft, or the combined test of the Primary Ignition and the Fuel Injector Voltage, etc.

Key Specifications

ModelATO3004ATO2004ATO1004
Bandwidth300MHz200MHz100MHz
Analog channel4
44
Rise Time≤1.16ns≤1.75ns≤3.5ns
Max. Sampling Rate2GSa/s2GSa/s1GSa/s
Max. Memory Depth220Mpts220Mpts110Mpts
Waveform capture rate (Max) 300,000 wfms/s 300,000 wfms/s 78,000 wfms/s
Input sensitivity range 1mV/div ~ 10V/div (1MΩ);1mV/div ~ 10V/div (50Ω)1mV/div ~ 10V/div
Bandwith Filter20MHz、 Low Pass (to 30Hz) 20MHz、 Low Pass (to 30KHz)
Segmented StorageSupport,capture max 10,000 waveform eventsNot Support

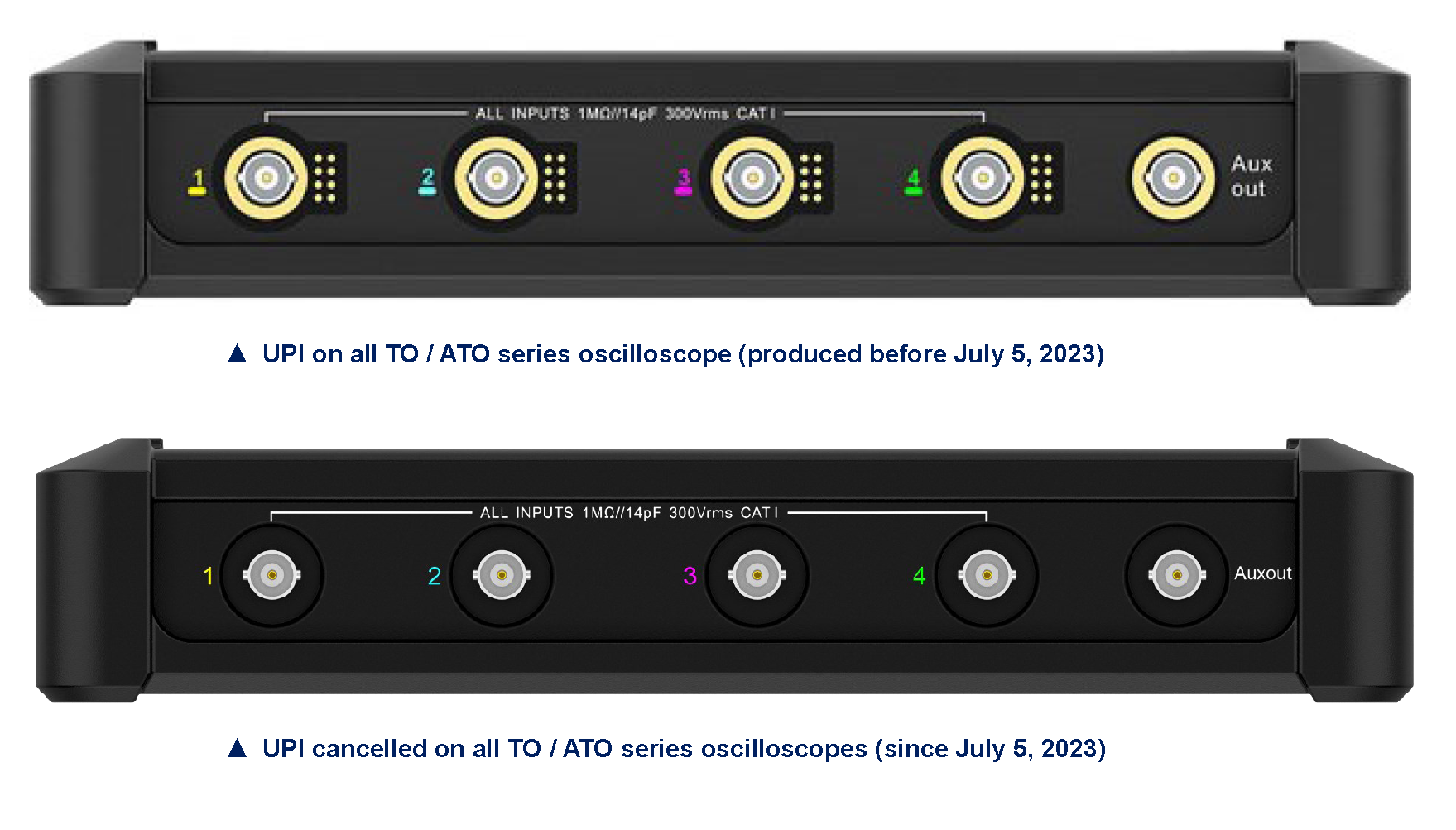

Input impedance1MΩ/50Ω1MΩ
Timebase range1ns/div ~ 1ks/div2ns/div ~ 1ks/div
Support TestCharging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, CAN FD, LIN, Flexray, K line), Combination Tests

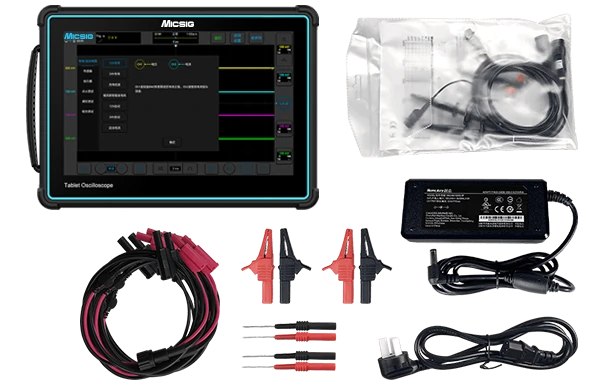

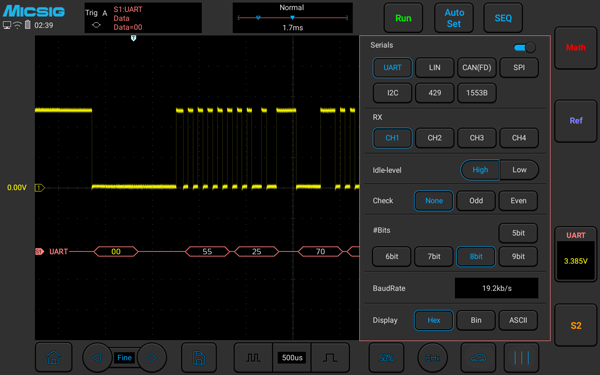

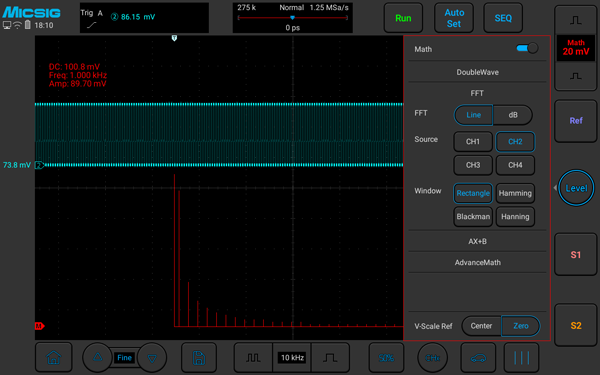

Bus decodingUART、CAN、CAN FD、LIN、SPI、I²C
InterfacesWi-Fi、USB 3.0/2.0 Host、USB type-C、Grounding、HDMI、Trigger out

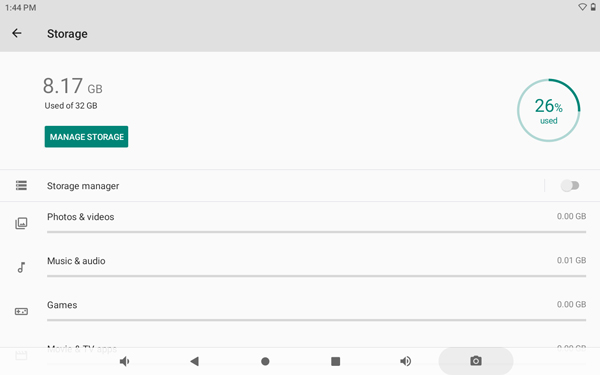

Storage32GB
Display10.1 Inch LCD capacitive touch display,1280*800 resolution,11*10 grids
Battery7.4V、7500mAh Li-Ion battery / 2H lifetime7.4V、7500mAh Li-Ion battery / 5H lifetime
Size/Net weight265*192*50mm / 1.9kg(with battery)

Key Specifications

ModelATO3004ATO2004ATO1004
Bandwidth300MHz200MHz100MHz
Analog channel4
44
Rise Time≤1.16ns≤1.75ns≤3.5ns
Max. Sampling Rate2GSa/s2GSa/s1GSa/s
Max. Memory Depth220Mpts220Mpts110Mpts
Waveform capture rate (Max) 300,000 wfms/s 300,000 wfms/s 78,000 wfms/s
Input sensitivity range 1mV/div ~ 10V/div (1MΩ);1mV/div ~ 10V/div (50Ω)1mV/div ~ 10V/div
Bandwith Filter20MHz、 Low Pass (to 30Hz) 20MHz、 Low Pass (to 30KHz)
Segmented StorageSupport,capture max 10,000 waveform eventsNot Support
Input impedance1MΩ/50Ω1MΩ
Timebase range1ns/div ~ 1ks/div2ns/div ~ 1ks/div
Support TestCharging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, CAN FD, LIN, Flexray, K line), Combination Tests
Bus decodingUART、CAN、CAN FD、LIN、SPI、I²C
InterfacesWi-Fi、USB 3.0/2.0 Host、USB type-C、Grounding、HDMI、Trigger out
Storage32GB
Display10.1 Inch LCD capacitive touch display,1280*800 resolution,11*10 grids
Battery7.4V、7500mAh Li-Ion battery
Size/Net weight265*192*50mm / 1.9kg(with battery)
