Automotive Oscilloscope

ATO1000 Series

Bandwidth:100MHz

Sampling Rate:1GSa/s

Memory Depth:28Mpts

Analog Channels:4

Automotive Oscilloscope

ATO1000 Series

Bandwidth:100MHz

Sampling Rate:1GSa/s

Memory Depth:28Mpts

Analog Channels:4

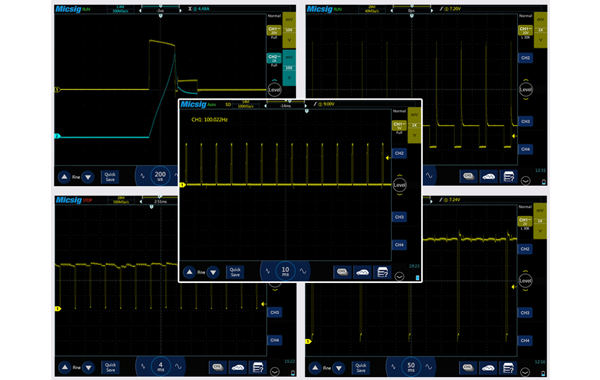

Various Actuator Tests

Carbon Canister Solenoid Value, Diesel Glow Plugs, EGR Solenoid Value, Fuel Plum, ldle Speed Control Value (IAC), Injector (Petrol), Injector(Diesel), Pressure Regulator, Quantity Control Value, Throttle Servomotor, Variable-speed Cooling Fan, Variable Value Timing

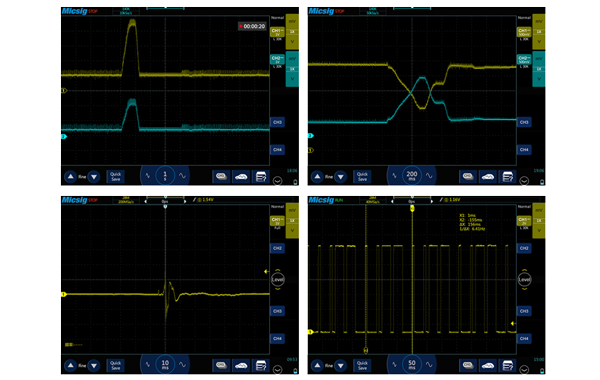

Various Sensor Tests

ABS, Accelerator Pedal, Air Flow Meter, Camshaft, Coolant Temperature, Crankshaft, Distributor, Fuel Pressure, Knock, Lambda, MAP, Road Speed, Throttle Position

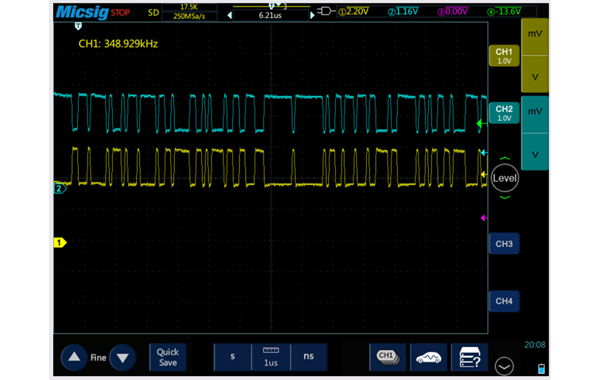

Networks

CAN, LIN, Flexray, K-line


Charging / Start Circuits

12V Charging, 24V Charging, Alternator AC Ripple, Ford smart Alternator, 12V Start, 24V Start, Cranking Current

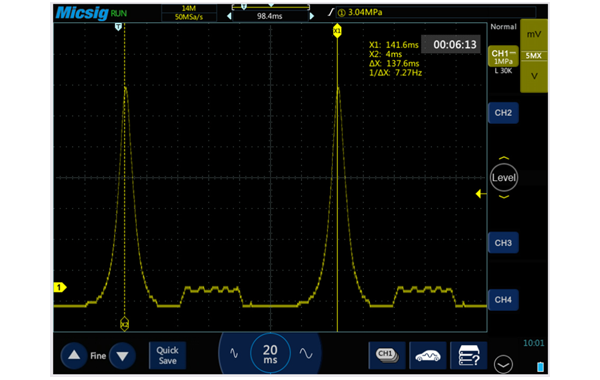

Pressure Test

Intake Manifold, Exhaust Tailpipe, In-Cylinder, In-Crankcase


Remote Control

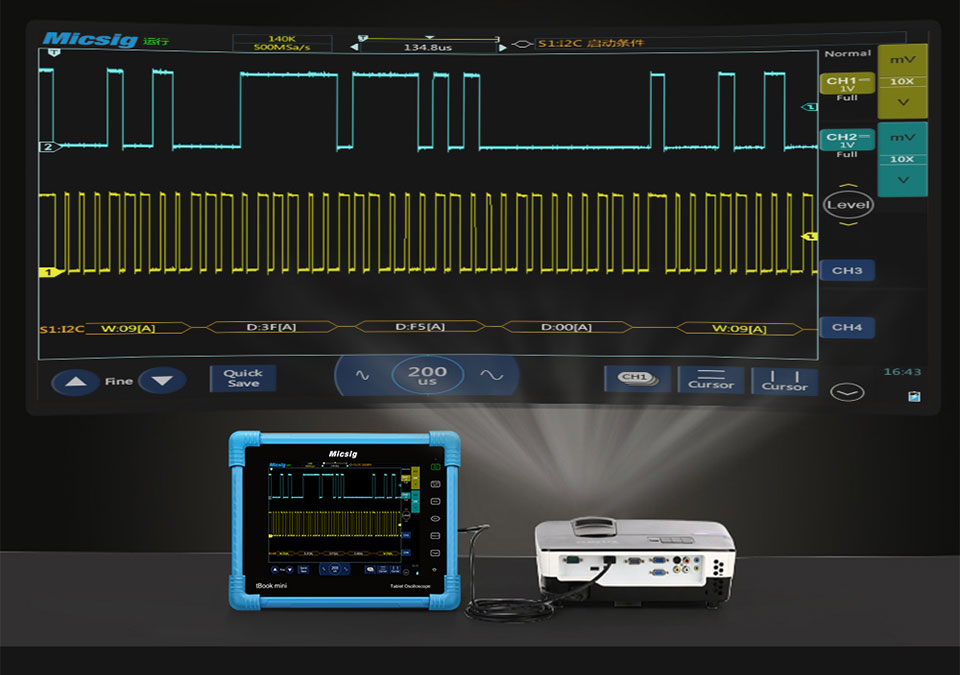

Support PC, Smart phone App (Android & iOS) remote control and HDMI connection for traning or public presentation.

Love from Worldwide Customers

Key Specifications

Model ATO1104
Bandwidth 100MHz
Analog channels 4
Real-time sampling rate 1GSa/s
Memory Depth 28Mpts
Support Test

Charging & Start circuit, Sensor, Actuator, ignition Test, Communication Test (including CAN, LIN, Flexray, K, etc.),

 Pressure Test (cylinder pressure, intake & exhaust pressure, fuel pressure...)

Bandwith limitation Full bandwidth, Low pass
Interfaces Wifi、LAN、HDMI、USB Host、USB Device、GND、DC Power
Display 8" TFT LCD capacitive touch screen, resolution: 800*600 pixels, 14*10 grids
Dimension 280*180*50mm

Key Specifications

Model ATO1104
Bandwidth 100MHz
Analog channels 4
Real-time sampling rate 1GSa/s
Memory Depth 28Mpts
Support Test

Charging & Start circuit, Sensor, Actuator, ignition Test, Communication Test (including CAN, LIN, Flexray, K, etc.),

 Pressure Test (cylinder pressure, intake & exhaust pressure, fuel pressure...)

Bandwith limitation Full bandwidth, Low pass
Interfaces Wifi、LAN、HDMI、USB Host、USB Device、GND、DC Power
Display 8" TFT LCD capacitive touch screen, resolution: 800*600 pixels, 14*10 grids
Dimension 280*180*50mm
