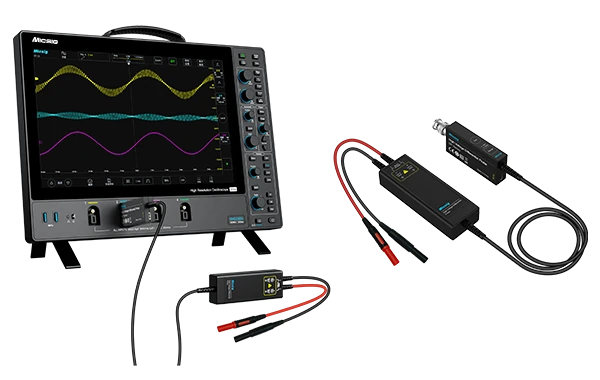

High Voltage Differential Probe DP Series
Originated from Micsig's cutting-edge SigOFIT™ technology, the DP
series differential probe has very low noise floor, excellent
high-voltage amplitude-frequency characteristics and industry-leading
common mode rejection capability, allow users to test high-frequency
and high-voltage signals with ease.
Bandwidth: 100MHz / 150MHz / 200MHz / 300MHz / 400MHz / 500MHz
Max. Voltage: 700Vpk / 1500Vpk / 3000Vpk / 7000Vpk

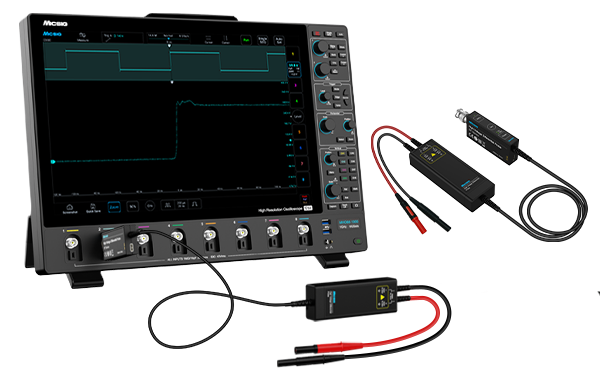

High Voltage Differential Probe DP Series
Originated from Micsig's cutting-edge SigOFIT™ technology, the DP series high-voltage differential probe has very low noise floor, excellent amplitude-frequency characteristics and industry-leading common mode rejection capability, allow users to test high-frequency and high-voltage signals with ease.
Bandwidth: 100MHz / 150MHz / 200MHz / 300MHz / 400MHz / 500MHz
Max. Voltage：700Vpk / 1500Vpk / 3000Vpk / 7000Vpk
With standard BNC interface, the DP series can work with any oscilloscope; probe body is only 2CM thick, protected by metal housing, achieves strong anti-interference ability. One-press auto Zero, dual-range and overload alarm design. High impedance designed, the single-ended impedance of the input end to the signal output BNC interface >8MΩ, single-ended capacitance <8pF, meets various safety test requirements. 5MHz bandwidth limit function can effectively filter out high-frequency noise and interference, ideal for switching power supplies, various high-frequency and high-voltage floating or isolated signal tests.
Excellent Bandwidth Flatness

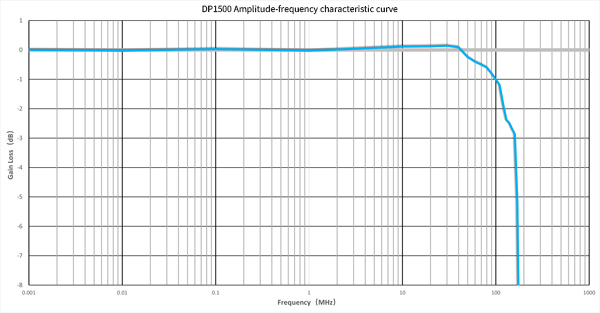

The DP series probe has excellent bandwidth flatness, amplitude fluctuation less than 0.5dB within its half bandwidth range, even in high frequency bands can also maintain high accuracy.
High Accuracy, High CMRR
High input impedance and low input capacitance, minimized load effect, greatly improved the accuracy of the differential signal. High common mode rejection capability, able to meet floating measurements of large common mode voltage at high frequencies.
CH1: @ 100KHz, 207.7V, output common mode signal amplitude 94.62mV, CMRR > -60dB
Low Noise

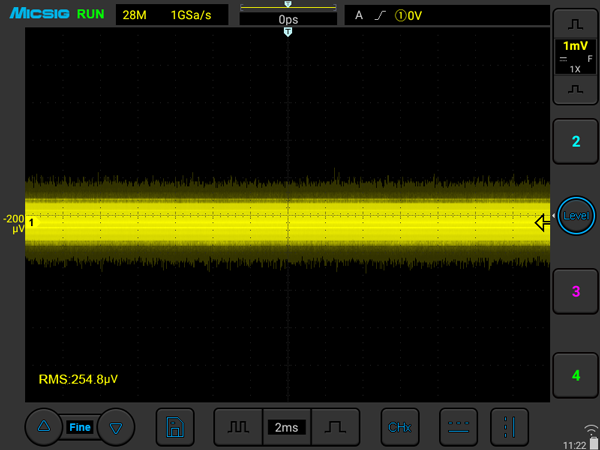

DP3000 test results: under 1000X, noise at full bandwidth is 254.8μVrms.
5MHz Bandwidth Limit
(only available on 100MHz ~ 200MHz versions，except DP7000)
When measuring FET switching frequency in most switching power supplies, DP probe effectively eliminates high-frequency noise.
Quick Zero
Short-circuit the test leads, press Zero button, the probe can be zeroed very fast.
Dual Range Selection
Improves signal-to-noise ratio, meet more test requirements.
BNC Interface
Standard BNC interface, work with any oscilloscope.
Overvoltage Alarm
LED flashes, buzzer "beeps" rapidly, indicating an over-range alert.

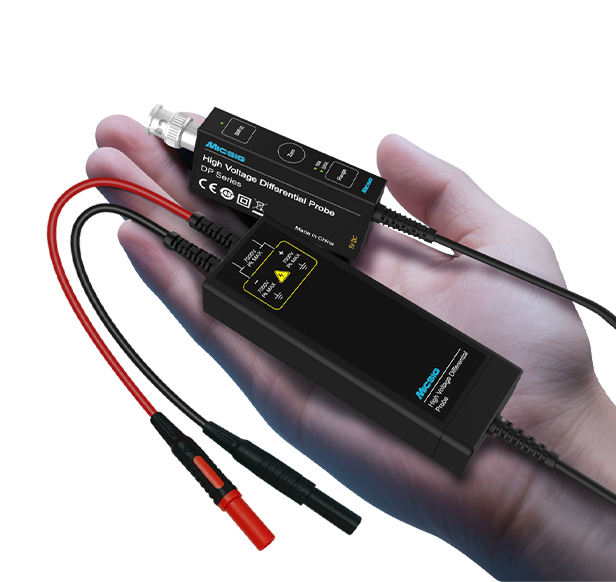

Compact & Exquisite
Much smaller than traditional differential probes.
Applications
● Floating measurements
● High voltage isolation measurements
● Switching power supply design
● Power converter design
● Inverter, UPS power supply
● Welding, electroplating power supply
● Electronic ballast design
● Motor drive design
● Induction heating, induction cooker
● CRT display design
● Low-voltage electrical appliances
● Electronic power and electric drive experiments
With standard BNC interface, the DP series can work with any oscilloscope; probe body is only 2CM thick, protected by metal housing, achieves strong anti-interference ability. One-press auto Zero, dual-range and overload alarm design. High impedance designed, the single-ended impedance of the input end to the signal output BNC interface >8MΩ, single-ended capacitance<8pF, meets various safety test requirements. 5MHz bandwidth limit function can effectively filter out high-frequency noise and interference, ideal for switching power supplies, various high-frequency and high-voltage floating or isolated signal tests.
Excellent Bandwidth Flatness
The DP series probe has excellent bandwidth flatness, amplitude fluctuation less than 0.5dB within its half bandwidth range, even in high frequency bands can also maintain high accuracy.

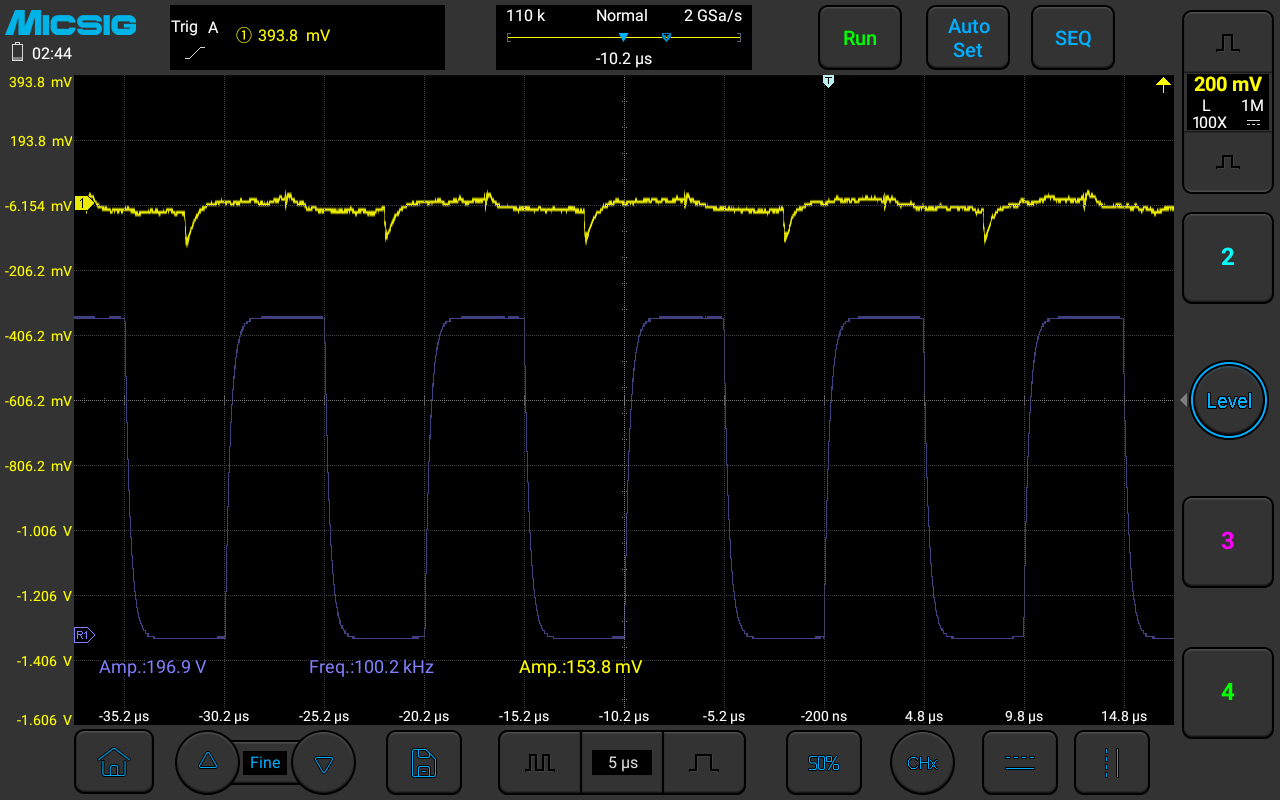

High Accuracy, High CMRR
High input impedance and low input capacitance, minimized load effect, greatly improved the accuracy of the differential signal. High common mode rejection capability, able to meet floating measurements of large common mode voltage at high frequencies.
CH1: @ 100KHz, 207.7V, output common mode signal amplitude 94.62mV, CMRR > -60dB.

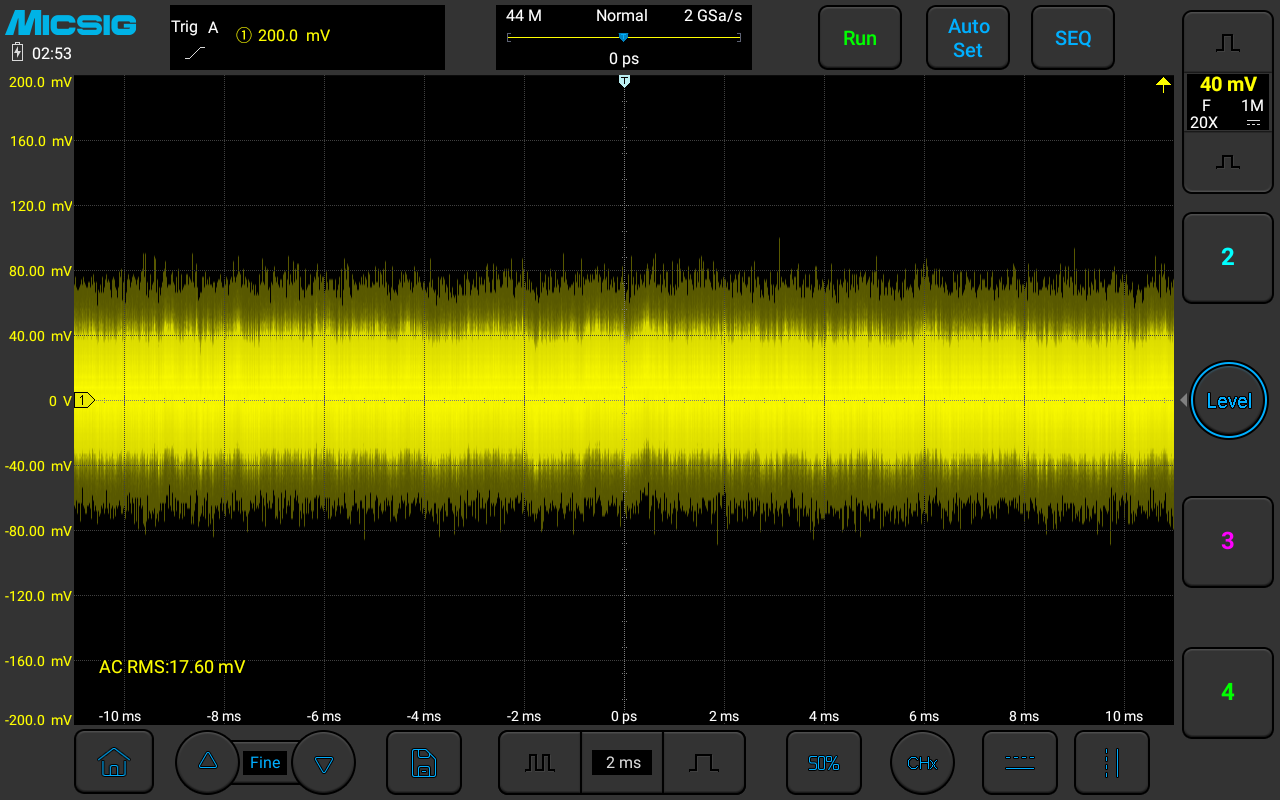

Low Noise
Short circuit the input ends, connect to CH1. Set both attenuation ratio at 50X, vertical scale at 250mV/div, time base at 1ms, input impedance is 1MΩ, observe the noise floor:
* Noise: 40.62mV (RMS) at full bandwidth.
5MHz Bandwidth Limit (only available on 100MHz ~ 200MHz versions，except DP7000)
When measuring FET switching frequency in most switching power supplies, DP probe effectively eliminates high-frequency noise.
Quick Zero
Short-circuit the test leads, press Zero button, the probe can be zeroed very fast.
Dual Range Selection
Improves signal-to-noise ratio, meet more test requirements.
BNC Interface
Standard BNC interface, work with any oscilloscope.
Overvoltage Alarm
LED flashes, buzzer "beeps" rapidly, indicating an over-range alert.
Compact & Exquisite
Much smaller than traditional differential probes.
Applications
● Floating measurements
● High voltage isolation measurements
● Switching power supply design
● Power converter design
● Inverter, UPS power supply
● Welding, electroplating power supply
● Electronic ballast design
● Motor drive design
● Induction heating, induction cooker
● CRT display design
● Low-voltage electrical appliances
● Electronic power and electric drive experiments
Key Specifications
*The previous model DP10007 has been upgraded to DP700.
*The previous model DP10013 has been upgraded to DP1500.
*The previous model DP20003 has been upgraded to DP3000.
Note: These models have not only been upgraded in performance (see parameter table), but also in appearance, which has been newly designed and made more compact and exquisite. When placing orders, please handle them according to the new model numbers.
