8CH High Resolution Oscilloscope

MHO 6 Series

Bandwidth:350MHz-1GHz

Sampling Rate:6GSa/s

Memory Depth:1800Mpts

Analog Channels:8

Display:16 inches, 1920*1200

8CH High Resolution Oscilloscope

MHO 6 Series

Bandwidth:350MHz-1GHz

Sampling Rate:6GSa/s

Memory Depth:1800Mpts

Analog Channels:8

Display:16 inches, 1920*1200

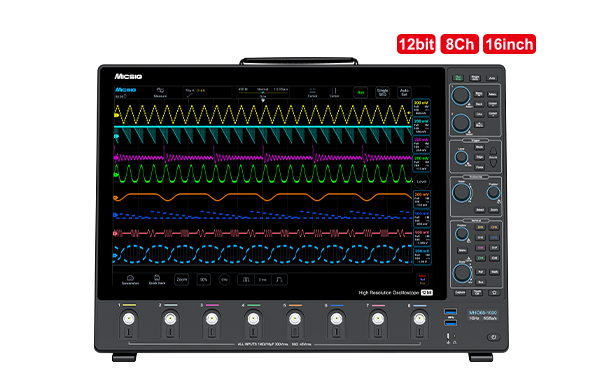

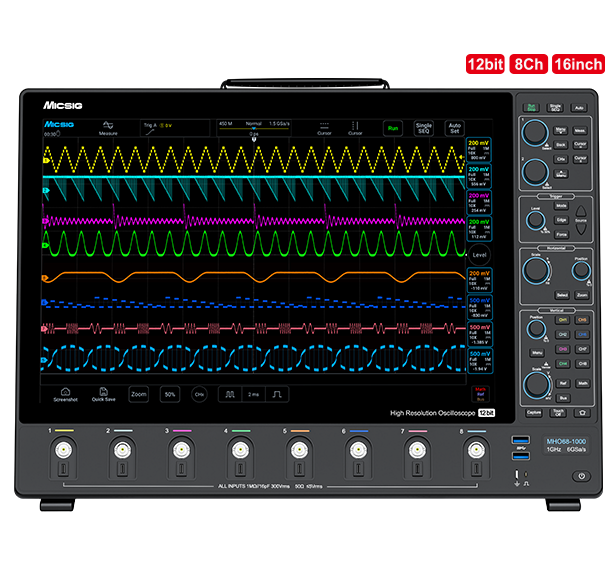

MHO high-resolution oscilloscope 6 series

The MHO high-resolution oscilloscope 6 series features a 1GHz bandwidth, 6GSa/s sampling rate, 8 analog channels, a storage depth of 1800 million points (Mpts), and a 12-bit vertical resolution. Its high bandwidth and 8-channel capability are suitable for faster circuit analysis and more synchronized signal testing. Its ultra-thin design of 3.52 cm can save a lot of your precious desk space; a 16-inch touch screen with a resolution of 1920*1200 provides you with a super clear waveform display for a more comfortable visual experience.

high-precision 12-bit high-speed ADC

Outstanding Performance
Precise Insight

The MHO 6 series oscilloscopes utilize high-precision 12-bit high-speed ADC technology with a sampling rate up to 6Gsa/s. Combined with meticulous circuit design and advanced signal processing techniques, they achieve comprehensive capture and stable analysis of signals ranging from weak to high-speed, providing solid assurance for high-precision testing in fields such as scientific research, production, and education. Their maximum analog bandwidth reaches 1GHz, easily meeting the testing challenges of the most cutting-edge devices in the field of power electronics.

8-analog channels oscilloscopes

Multi-Channel Parallelism
Efficiency Upgraded

Equipped with 8 independent analog channels, the MHO 6 series oscilloscopes enable engineers to simultaneously observe and analyze up to 8 test points, greatly enhancing testing efficiency and accuracy. This provides strong support for timing analysis, troubleshooting, and performance optimization of complex systems.

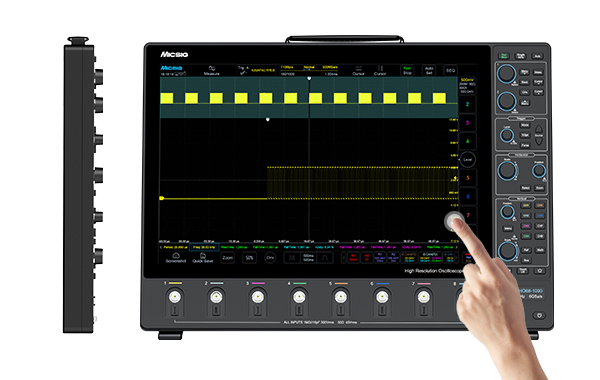

16-inch high-definition touch

Outstanding Display

Featuring a 16-inch high-definition touch screen with a resolution of up to 1920*1200, it delivers a delicate and clear visual experience. The ultra-thin body design, with a thickness of only 3.52cm, is both portable and aesthetically pleasing, making every operation a pleasure.

Complete connectivity

Complete connectivity

Original Mic-OPI™ probe interface, automatically identifies passive probe attenuation, one-click to proceed auto-calibration; standard with BNC adapter;


also has USB 3.0 Host, USB Type-C, LAN, HDMI etc...

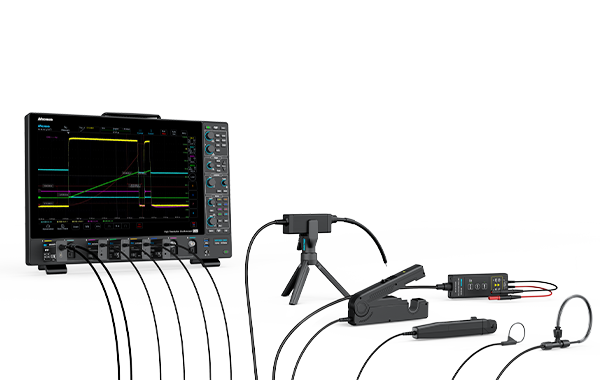

SigOFIT Optical-fiber Isolated Probe

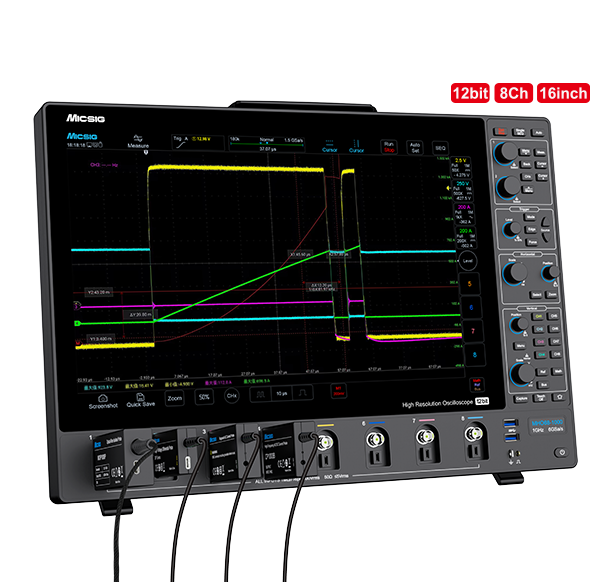

Comprehensive selection of probes

ased on Micsig's comprehensive probe product line, the MHO6 series oscilloscopes can be paired with SigOFIT Optical-fiber Isolated Probe, high-voltage differential probes, Rogowski coils, and high-frequency AC/DC current probes, among others. Each of these probes has its own unique features, capable of flexibly adapting to various testing scenarios, providing a complete and reliable solution for power electronics testing.

MHO high-resolution oscilloscope 6 series

The MHO high-resolution oscilloscope 6 series features a 1GHz bandwidth, 6GSa/s sampling rate, 8 analog channels, a storage depth of 1800 million points (Mpts), and a 12-bit vertical resolution. Its high bandwidth and 8-channel capability are suitable for faster circuit analysis and more synchronized signal testing. Its ultra-thin design of 3.52 cm can save a lot of your precious desk space; a 16-inch touch screen with a resolution of 1920*1200 provides you with a super clear waveform display for a more comfortable visual experience.


MHO high-resolution oscilloscope 6 series

Outstanding Performance
Precise Insight

The MHO 6 series oscilloscopes utilize high-precision 12-bit high-speed ADC technology with a sampling rate up to 6Gsa/s. Combined with meticulous circuit design and advanced signal processing techniques, they achieve comprehensive capture and stable analysis of signals ranging from weak to high-speed, providing solid assurance for high-precision testing in fields such as scientific research, production, and education. Their maximum analog bandwidth reaches 1GHz, easily meeting the testing challenges of the most cutting-edge devices in the field of power electronics.


MHO high-resolution oscilloscope 6 series

Multi-Channel Parallelism
Efficiency Upgraded

Equipped with 8 independent analog channels, the MHO 6 series oscilloscopes enable engineers to simultaneously observe and analyze up to 8 test points, greatly enhancing testing efficiency and accuracy. This provides strong support for timing analysis, troubleshooting, and performance optimization of complex systems.


MHO high-resolution oscilloscope 6 series

Outstanding Display

Featuring a 16-inch high-definition touch screen with a resolution of up to 1920*1200, it delivers a delicate and clear visual experience. The ultra-thin body design, with a thickness of only 3.52cm, is both portable and aesthetically pleasing, making every operation a pleasure.


MHO high-resolution oscilloscope 6 series

Complete connectivity

Original Mic-OPI™ probe interface, automatically identifies passive probe attenuation, one-click to proceed auto-calibration; standard with BNC adapter;


also has USB 3.0 Host, USB Type-C, LAN, HDMI etc...


MHO high-resolution oscilloscope 6 series

Comprehensive selection of probes

ased on Micsig's comprehensive probe product line, the MHO6 series oscilloscopes can be paired with SigOFIT Optical-fiber Isolated Probe, high-voltage differential probes, Rogowski coils, and high-frequency AC/DC current probes, among others. Each of these probes has its own unique features, capable of flexibly adapting to various testing scenarios, providing a complete and reliable solution for power electronics testing.

Key Specifications

ModelMHO68-1000MHO68-500MHO68-350
Bandwidth1GHz500MHz350MHz
Rise Time≤0.4ns≤0.7ns≤1ns
Analog channels888
Real-time sampling rate6GSa/s6GSa/s6GSa/s
Memory Depth1800Mpts1800Mpts1800Mpts
Vertical Resolution12bit
Input impedance50Ω / 1MΩ
Display16" full touch display, 1920 x 1200 resolution
Dimension / Net Weight44.3.*30.7*3.52cm / 5.7kg

Key Specifications

ModelMHO68-1000MHO68-500MHO68-350
Bandwidth1GHz500MHz350MHz
Rise Time≤0.4ns≤0.7ns≤1ns
Analog channels888
Real-time sampling rate6GSa/s6GSa/s6GSa/s
Memory Depth1800Mpts1800Mpts1800Mpts
Vertical Resolution12bit
Input impedance50Ω / 1MΩ
Display16" full touch display, 1920 x 1200 resolution
Dimension / Net Weight44.3.*30.7*3.52cm / 5.7kg
