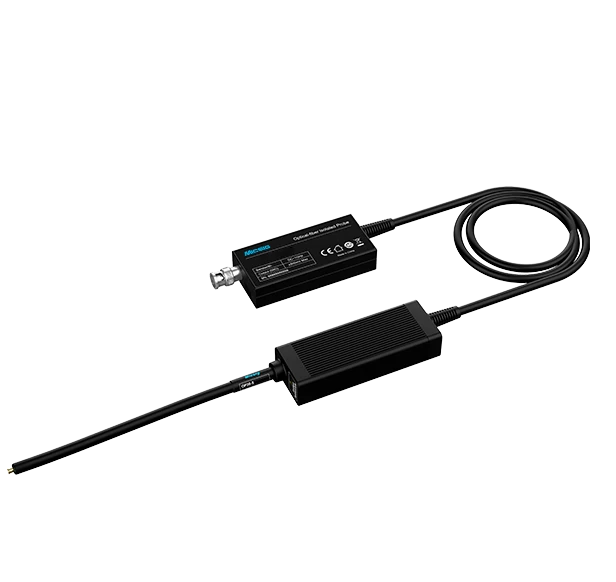

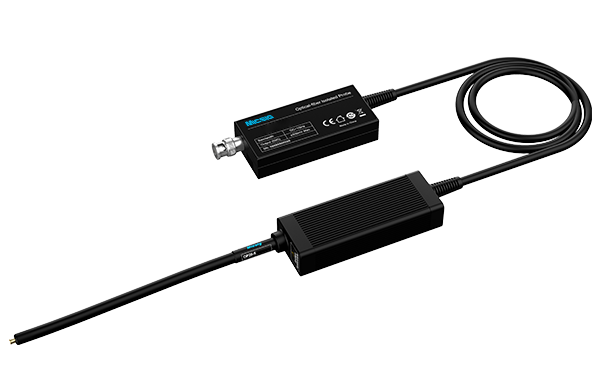

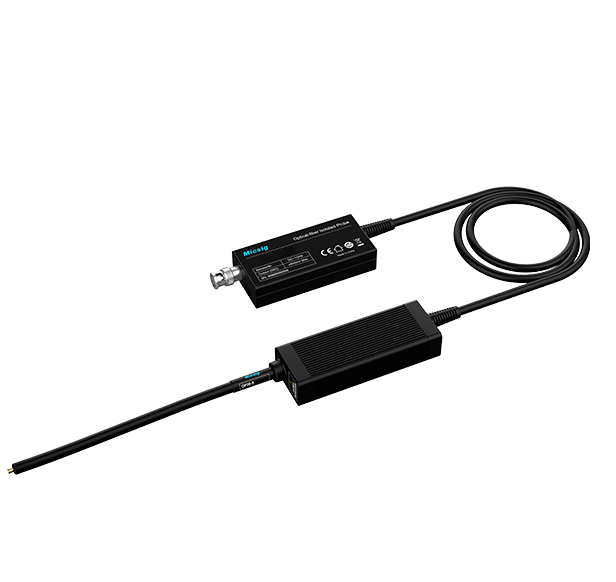

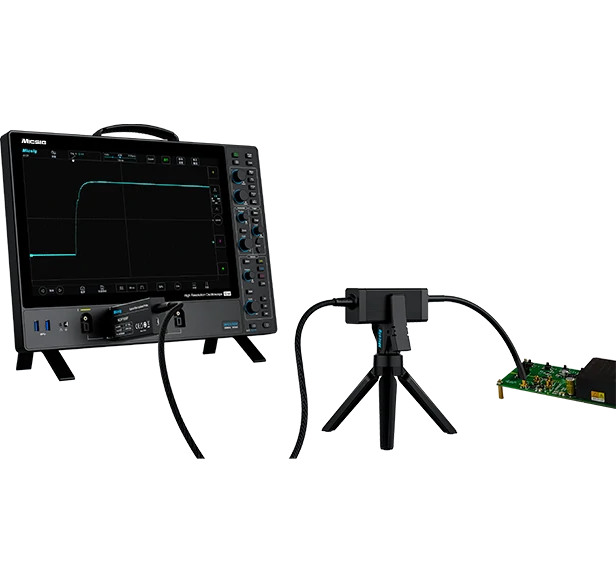

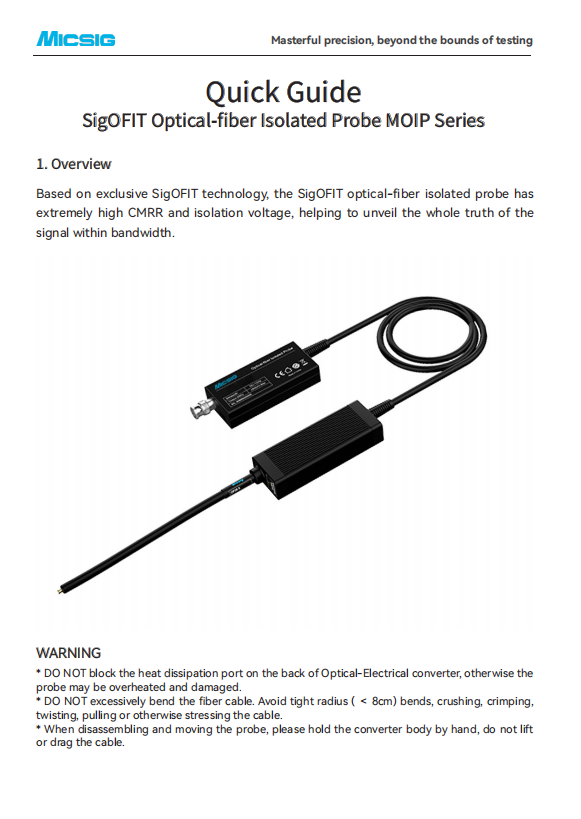

SigOFIT Optical-fiber Isolated Probe


Unveil Real Signal You've Never Seen


Based on exclusive SigOFIT™ technology, the SigOFIT optical-fiber isolated probe

has extremely high CMRR and isolation voltage, help to unveil the whole truth of the signal within bandwidth.


Bandwidth:  DC-1GHz

CMRR:  DC-160dB

Common Mode Voltage:  60kVpk

DC Accuracy:  1%

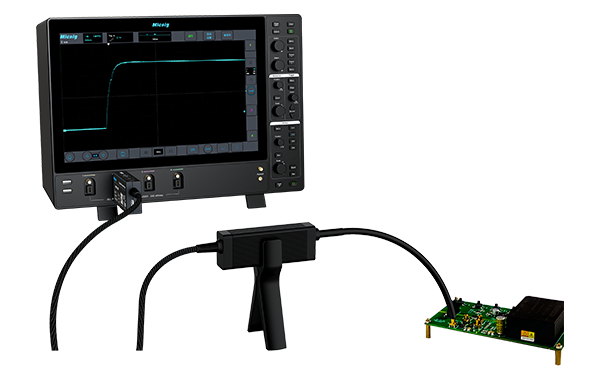

SigOFIT Optical-fiber Isolated Probe


Unveil Real Signal You've Never Seen


Based on exclusive SigOFIT™ technology, the SigOFIT optical-fiber isolated probe

has extremely high CMRR and isolation voltage, help to unveil the whole truth of the signal within bandwidth.


Bandwidth:  DC-1GHz

CMRR:  DC-160dB

Common Mode Voltage:  60kVpk

DC Accuracy:  1%

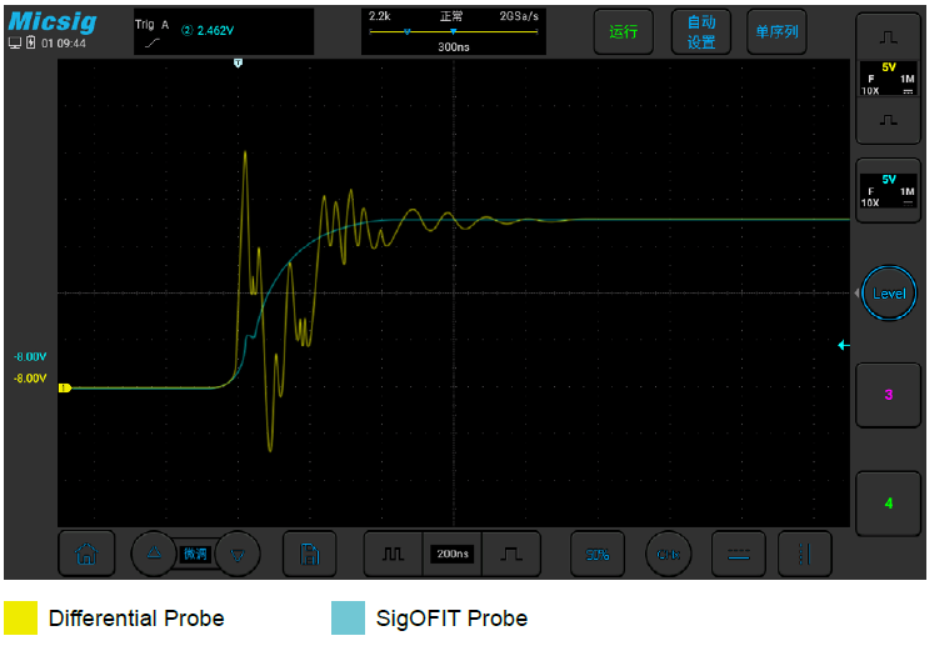

Present True Signal

SigOFIT probe has highest common mode rejection ratio, or CMRR, up to 112dB at 100MHz, over 100dB at 500MHz. It's the ultimate referee of signal fidelity measured by other voltage probes.

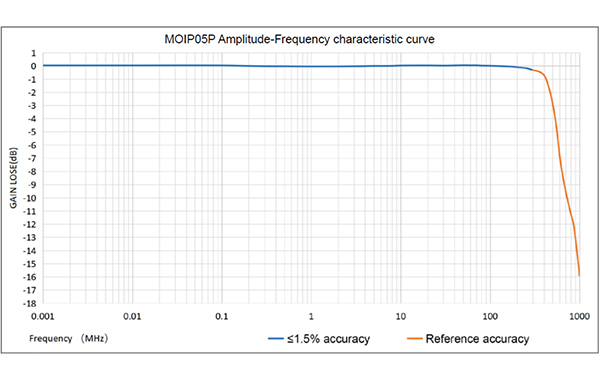

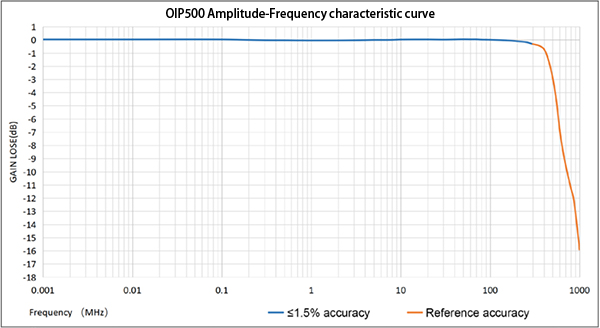

Highest Accuracy


SigOFIT probe has excellent amplitude-frequency characteristics,  and the DC gain accuracy is better than 1%. The maximum noise floor within the range is 1.41mVrms, and zero drift is less than 500μV after warm-up.

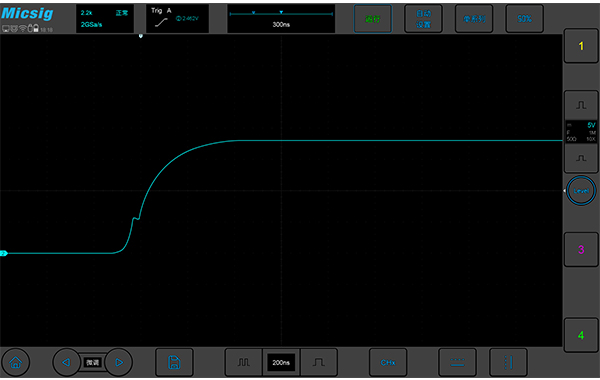

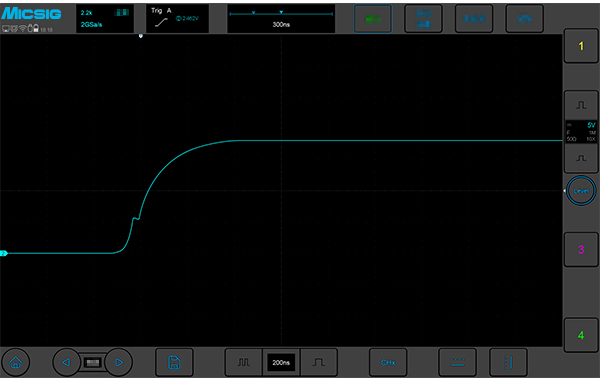

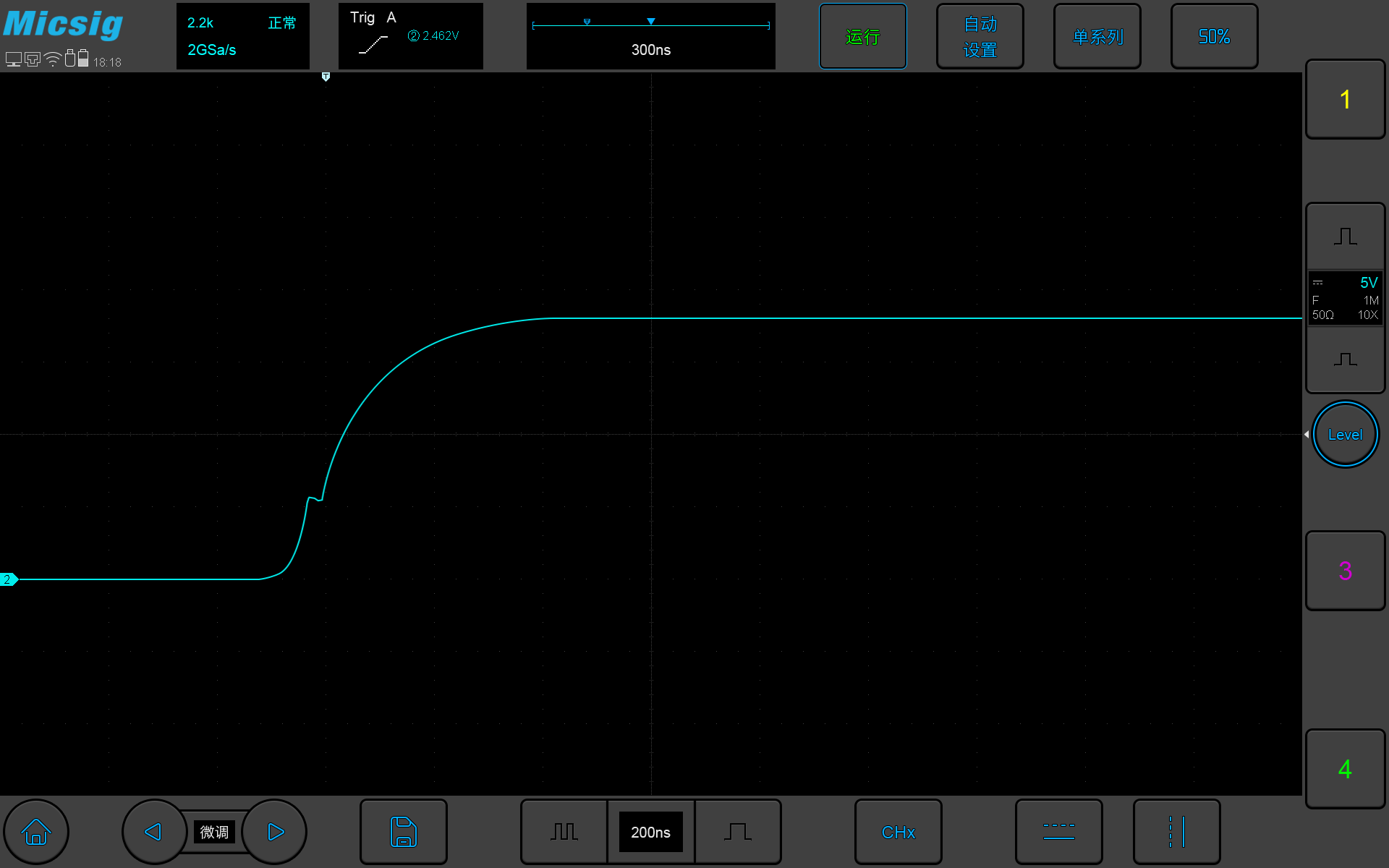

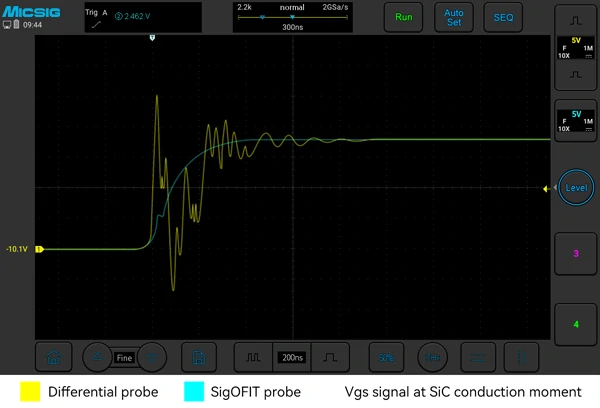

Best Probe for Third-Gen Semiconductor

SiC & GaN device can switch high voltages in a few nanoseconds, the signal may have high-energy high-frequency harmonics.

Even at the highest bandwidth, the SigOFIT probe still have nearly 100dB CMRR, perfectly suppressed the oscillation caused by high-frequency common-mode noise, no redundant components. It's the best choice for 3rd-gen semiconductor test & measurement.

Safe to Test GaN

The test leads of SigOFIT probe are short and with coaxial cable transmission, has less than 3pF input capacitance, very safe to test GaN.

* When the working parameters of the device are already in the critical state of explosive, there will be nearly 3pF more capacitance added when connected to the DUT, safety hence is not guaranteed.

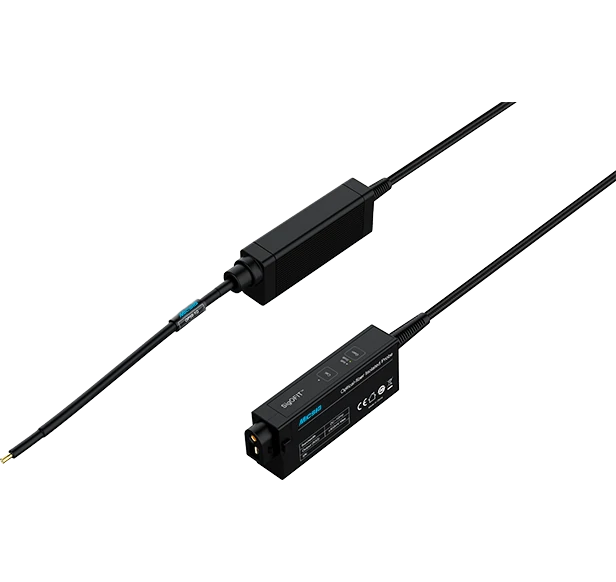

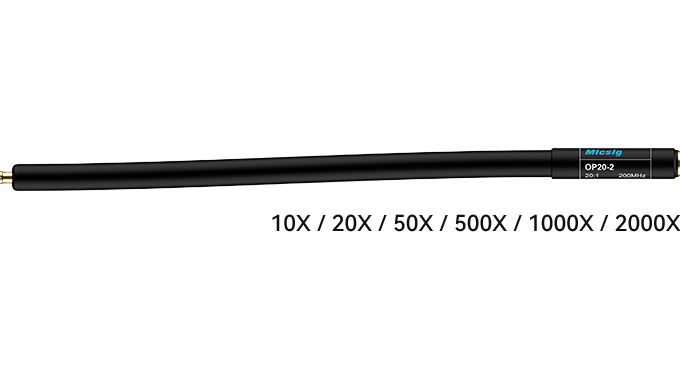

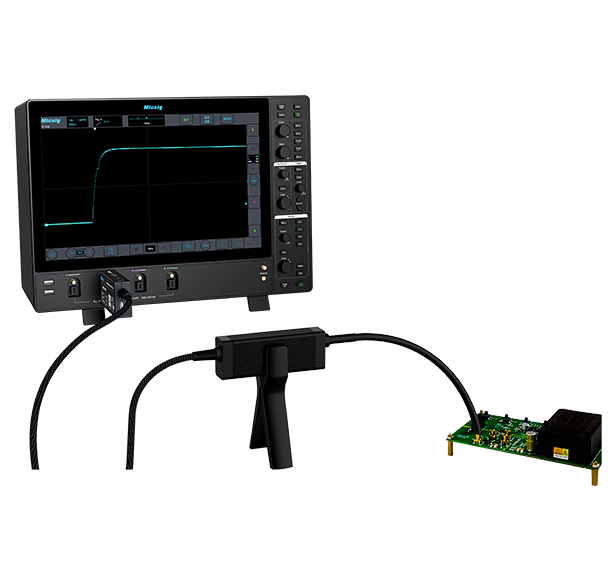

Optical-fiber Isolated Probe OP

Wide Measurement Range

Unlike traditional differential probes can only test high-voltage signals, SigOFIT probe can be used with different attenuator tips to test differential mode signals from ±1.25V to ±2500V, achieve full-range output and very high signal-to-noise ratio.

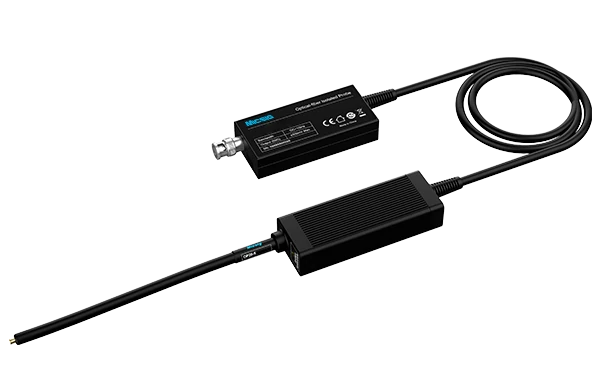

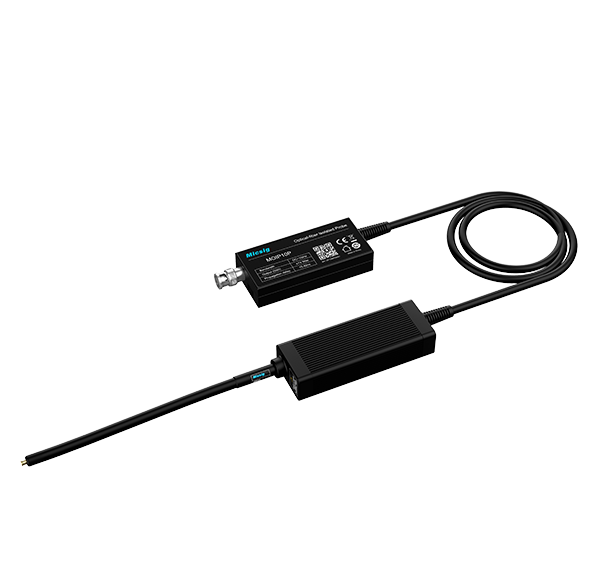

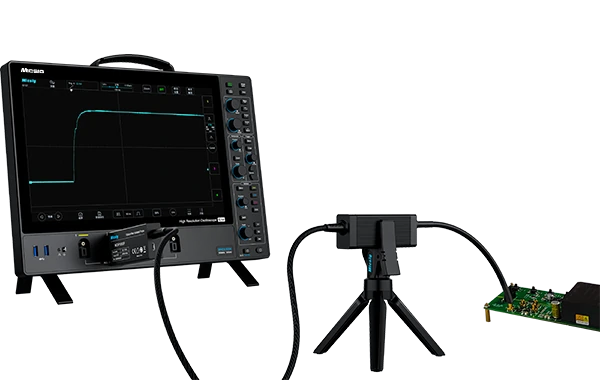

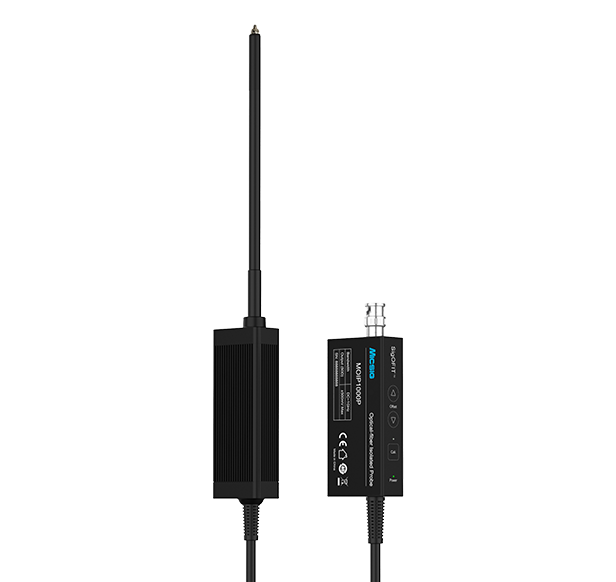

SigOFIT Optical-fiber Isolated Probe MOIP10P


Efficient & Affordable

Fastest response, can be tested immediately after power-on; AutoZero completed in less than 1 second, ensures accurate signal output in real time.


Design of GaN, SiC, IGBT Half/Full bridge devices

Applications

*  Design of motor drive, power converter, electronic ballast

*  Design of GaN, SiC, IGBT Half/Full bridge devices

Design of inverter, UPS and switching power supply

Safety test for high voltage, high bandwidth applications

Power device evaluation

Current shunt measurements

EMI & ESD troubleshooting

Floating measurements




Present  True Signal

SigOFIT series probe has highest common mode rejection ratio, or CMRR, up to 112dB at 100MHz, over 100dB at 500MHz. It's the ultimate referee of signal fidelity measured by other voltage probes.

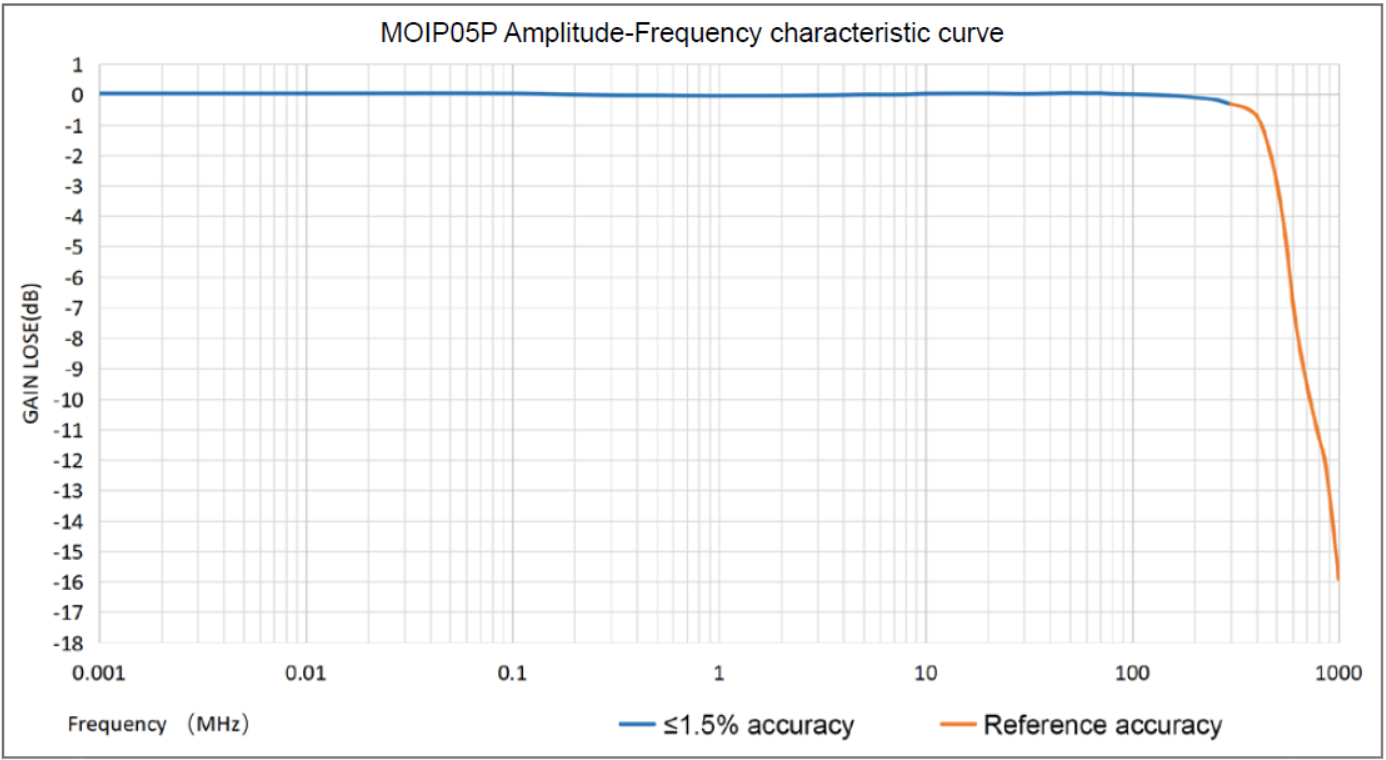

500MHz curve.png

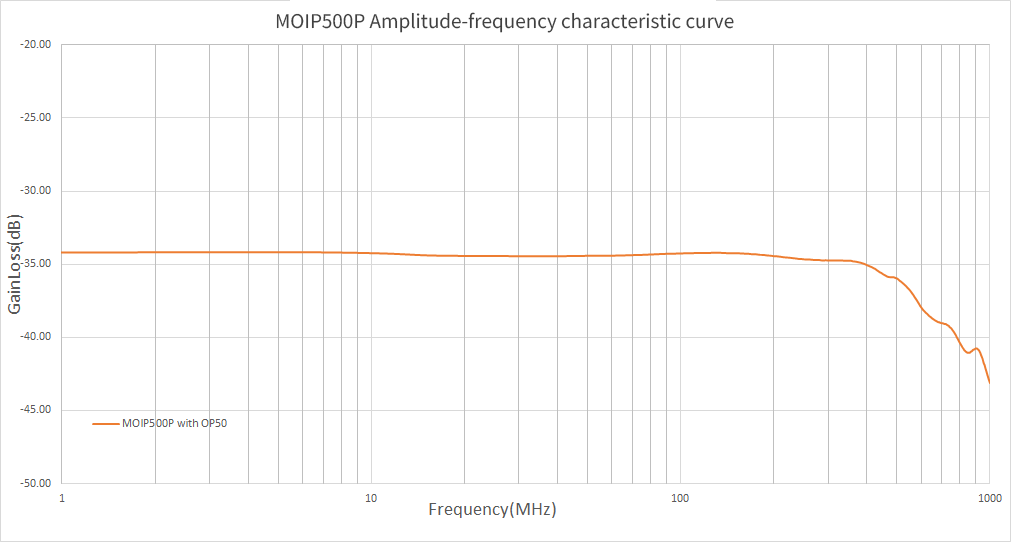

Highest Accuracy

SigOFIT probe has excellent amplitude-frequency characteristics, and the DC gain accuracy is better than 1%. The maximum noise floor within the range is 1.41mVrms, and the zero drift is less than 500μV after warm-up.

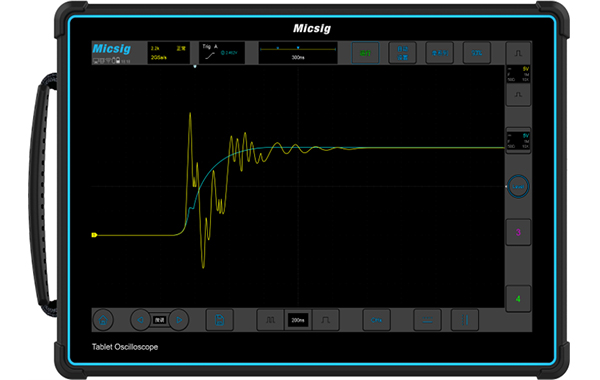

Best Probe for  Third-Gen Semiconductor

SiC & GaN device can switch high voltages in a few nanoseconds, the signal may have high-energy high-frequency harmonics.

Even at the highest bandwidth, the SigOFIT probes still have nearly 100dB CMRR, perfectly suppressed the oscillation caused by high-frequency common-mode noise, no redundant components. It's the best choice for 3rd-gen semiconductor test & measurement.



Safe to Test GaN

The test leads of SigOFIT probes are short and with coaxial cable transmission, has less than 3pF input capacitance, very safe to test GaN.

* When the working parameters of the device are already in the critical state of explosive, there will be nearly 3pF more capacitance added when connected to the DUT, safety hence is not guaranteed.

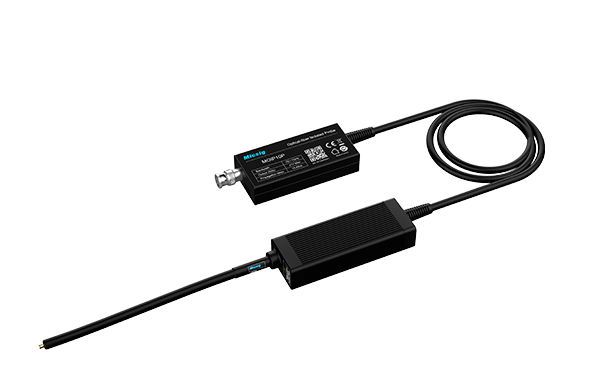

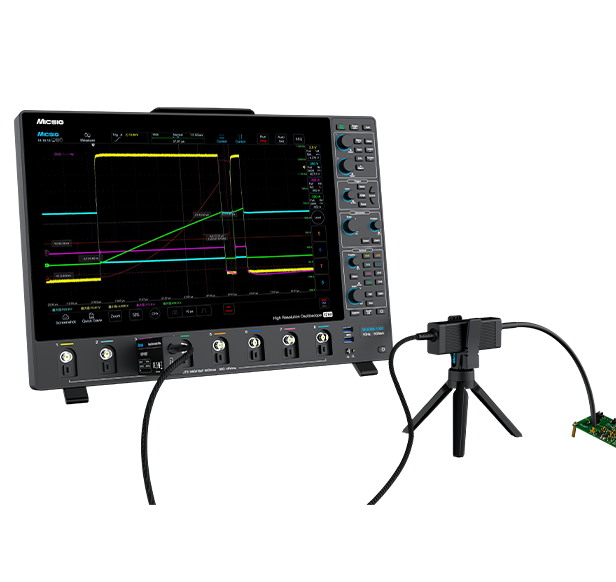

SigOFIT Optical-fiber Isolated Probe MOIP10P


Compact & Simple

Smaller size than traditional differential probes, has more accurate probe tips,  makes it much more easier and flexible to use.


Optical-fiber Isolated Probe OP

Wide Measurement Range

Unlike traditional differential probes can only test high-voltage signals, SigOFIT probe can be used with different attenuator tips to test differential mode signals from ±1.25V to ±2500V, achieve full-range output and very high signal-to-noise ratio.



Efficient & Affordable

Fastest response, can be tested immediately after power-on;

AutoZero completed in less than 1 second, ensures accurate signal output in real time.


Design of GaN, SiC, IGBT Half/Full bridge devices

Applications

*  Design of motor drive, power converter, electronic ballast

*  Design of GaN, SiC, IGBT Half/Full bridge devices

*  Design of inverter, UPS and switching power supply

*  Safety test for high voltage, high bandwidth applications

*  Power device evaluation

*  Current shunt measurements

*  EMI & ESD troubleshooting

*  Floating measurements


Key Specifications

Model MOIP01P MOIP02P MOIP03P MOIP05P MOIP08P MOIP10P
Bandwidth100MHz200MHz350MHz500MHz800MHz1GHz
Rise Time≤3.5ns≤1.75ns≤1ns≤700ps≤438ps≤350ps
SMA input impedance1MΩ || 10pF1MΩ || 10pF1MΩ || 10pF1MΩ || 10pF1MΩ || 10pF1MΩ || 10pF
Output Voltage±2.5V±1.25V
Differential Voltage Range 1X:±2.5V

10X:±25V

20X:±50V

500X:±1250V

1000X:±2500V

1X:±1.25V

20X:±25V

50X: ±62.5V

1000X:±1250V
2000X:±2500V
Noise <1.41mVrms
Propagation Delay 15.42ns(2m cable length)
Power Supply USB Type-C,DC:5V
DC Gain Accuracy1%
Common Mode Voltage Range60kVpk
Cable Length 2m (Std.)  (customizable)



Attenuation & Input Impedance
Probe Tip Attenuation Input Impedance
SMA1X1MΩ || 10pF
OP1010X10MΩ || 3.0pF
OP2020X9.47MΩ || 2.8pF
OP5050X9.47MΩ || 2.8pF
OP500500X12.27MΩ || 2.6pF
OP10001000X12.28MΩ || 2.6pF
OP20002000X30MΩ || 1pF

Common Mode Rejection Ratio
Probe Tip DC1MHz100MHz200MHz350MHz500MHz800MHz1GHz
SMA160dB152dB112dB106dB102dB100dB94dB92dB
OP10160dB120dB96dB92dB90dB86dB84dB82dB
OP20160dB120dB92dB90dB86dB84dB82dB80dB
OP50160dB115dB86dB82dB80dB78dB75dB74dB
OP500160dB96dB56dB48dB40dB32dB28dB26dB
OP1000160dB90dB50dB42dB34dB26dB22dB20dB
OP2000160dB90dB50dB42dB34dB26dB22dB20dB
