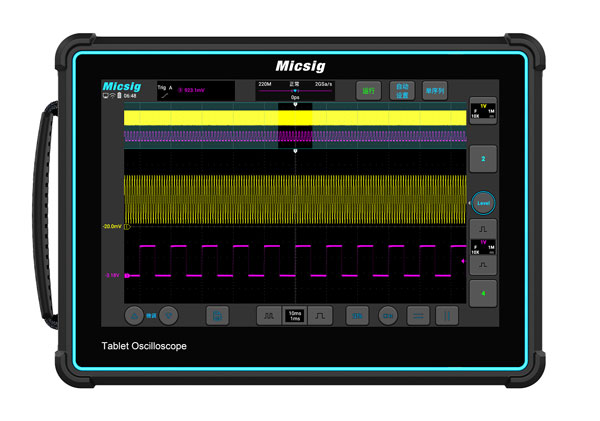

Tablet Oscilloscope TO Series

Bandwidth:300MHz

Sampling Rate:2GSa/s

Memory Depth:220Mpts

Channels:4

Tablet Oscilloscope TO Series

Bandwidth:300MHz

Sampling Rate:2GSa/s

Memory Depth:220Mpts

Channels:4

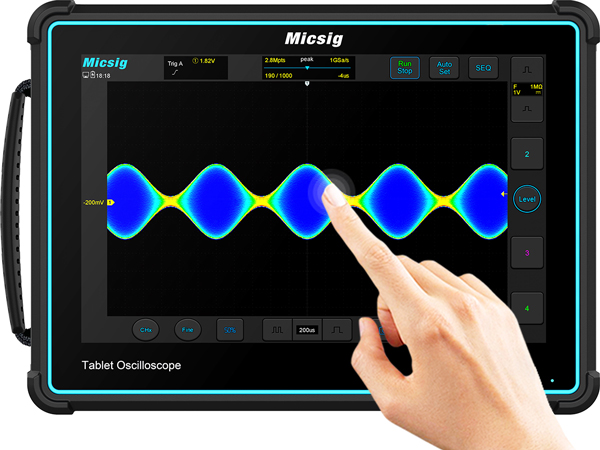

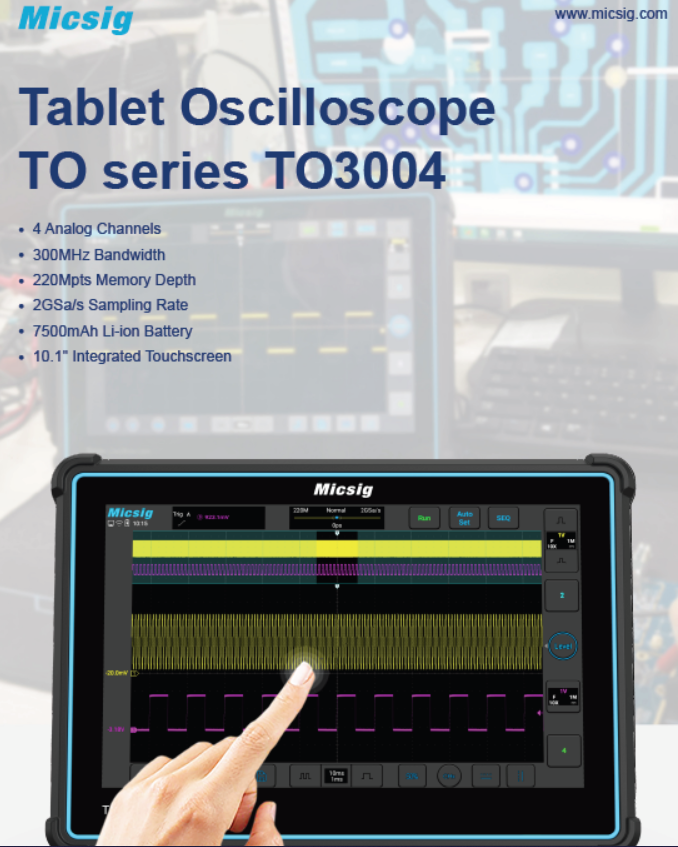

Full Touch Operation

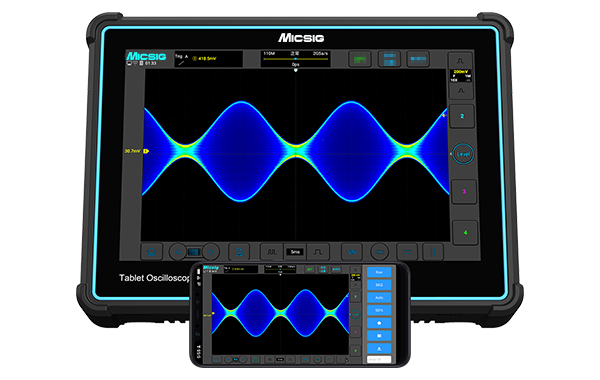

The new TO series oscilloscope provides full touch operation, with upgraded UI, it's much more efficient to use than traditional desktop oscilloscopes

10.1 Inch TFT-LCD Display

Ultra-high 1280*800 resolution plus seamless capacitive screen provides unmatched touch experience, compact design leading in portable solution

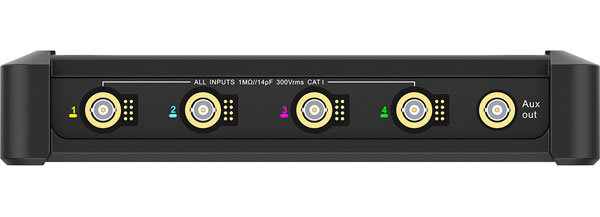

Universal Probe Interface (UPI)

The Micsig UPI can supply power to Micsig's active probes and configure the probe attenuation ratio with oscilloscope automatically.

Complete Connectivity

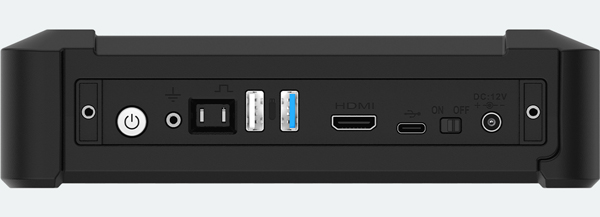

Equipped with Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, and Trigger Out interfaces

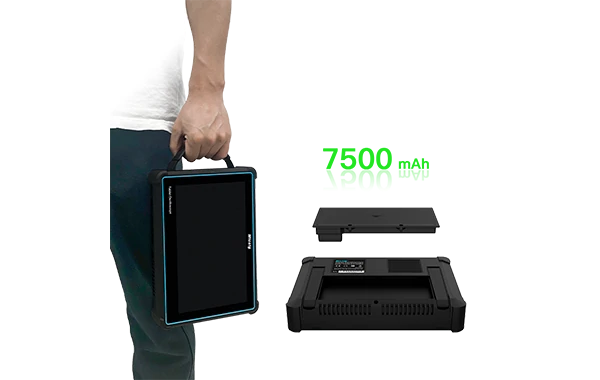

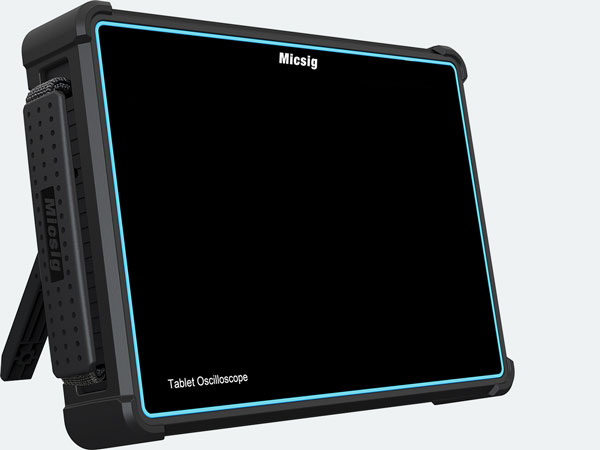

Portable & Benchtop

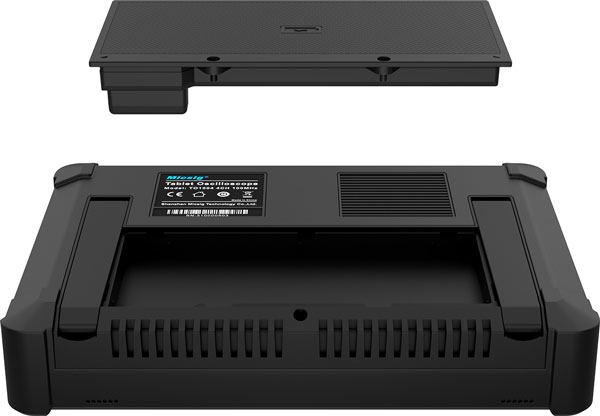

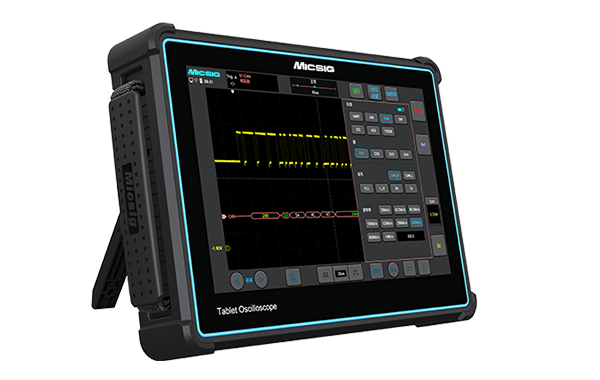

Built-in 7500mAh Li-ion battery support 4/5h long field work, Power-off lock secure safety to carry and store; Triangle back stand make sure it sits on the bench solidly as well.

Deep 220Mpts Memory Depth

Using hardware-based Zoom technology and max 220Mpts memory depth, users can capture signals at longer time periods at higher resollution, and to see more details

Max300,000 wfms/s waveform capture rate, the TO series can easily capture unusual or low-probability events.

Powerful Trigger Functions

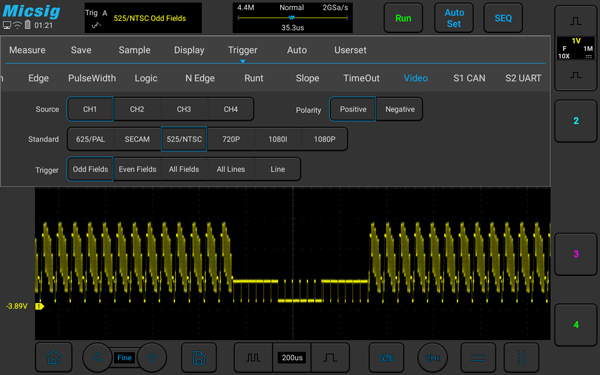

Support Edge, Pulse, Runt, Logic, N-edge, Video, Timeout, Slope etc.

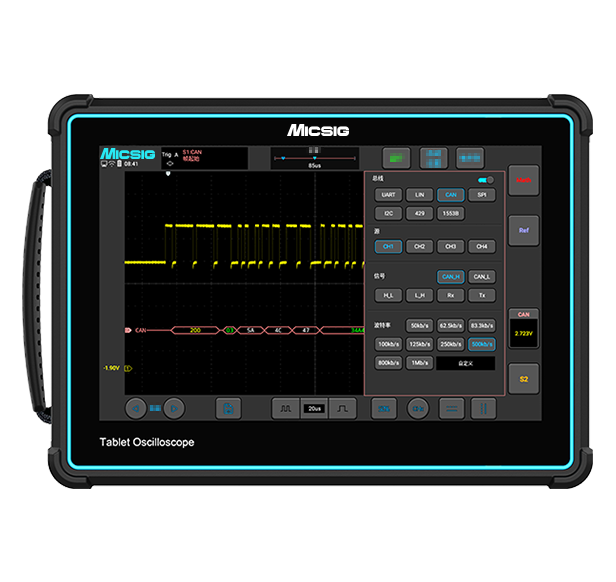

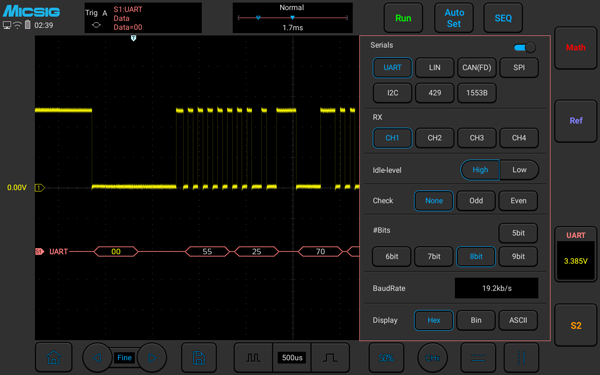

Serial Bus Decoding Function (Standard)

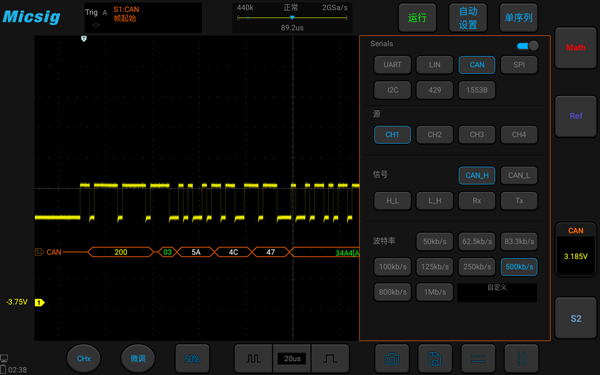

Support UART、CAN、LIN、SPI、I2C, also able to output the decoded data in Text mode or to CSV format

31 Auto Measurements

can be one-press displayed and cleared on the screen

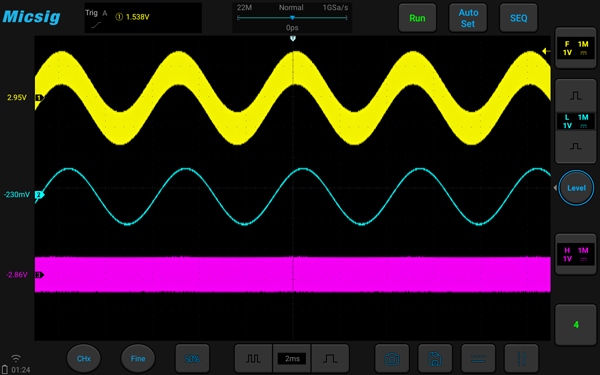

Support Hardware Digital Filter

Rule out insignificant frequency components to eliminate interference.

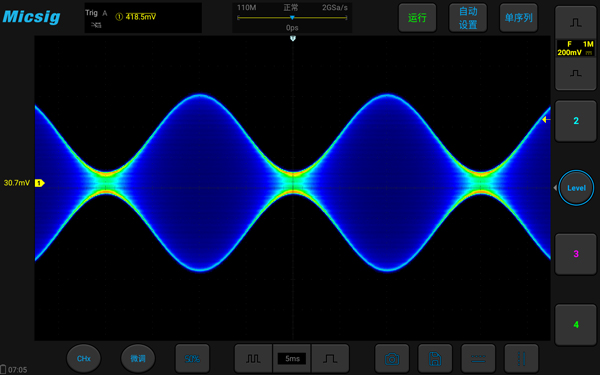

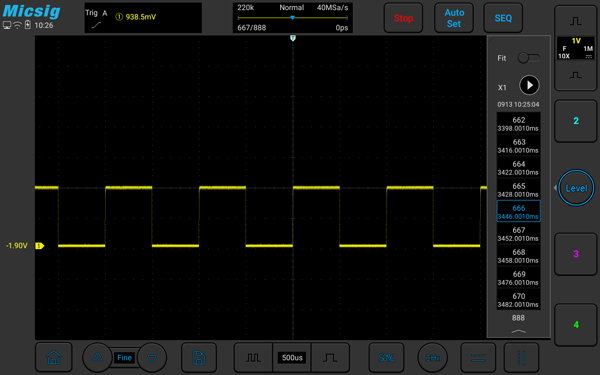

Segmented Storage Acquisition

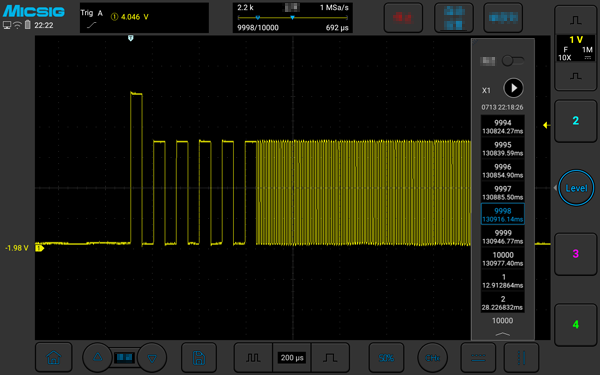

Up to 10,000 waveform events can be captured for efficient analysis, helping users to capture occasional signals and more optimally save the data required.

Support Color Temperature function

The trace occurrence is represented by different colors.

Red colors represent events that occur more frequently, while blue is used to mark points that occur less frequently, which help users capture occasional waveform so to set trigger conditions more conveniently.

Support HDMI Function

Useful for presentations on larger screen.

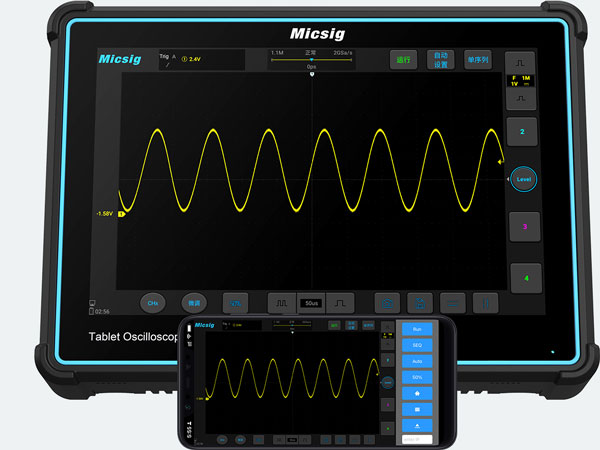

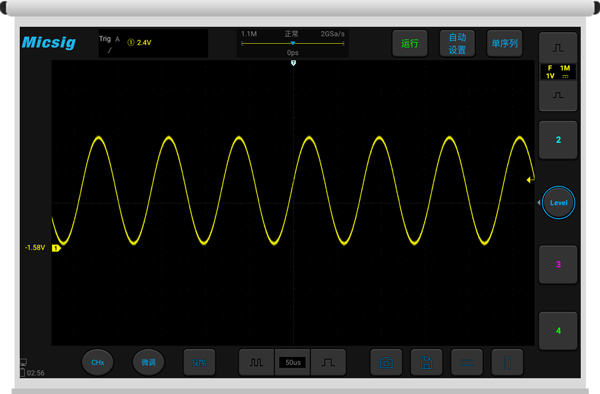

Support mobile APP (Android, iOS) and PC remote control.

Support Wi-Fi network upgrade and FTP data transfer.

Full Touch Operation

The new TO series oscilloscope provides full touch operation, with upgraded UI, it's much more efficient to use than traditional desktop oscilloscopes



10.1 Inch TFT-LCD Display

Ultra-high 1280*800 resolution plus seamless capacitive screen provides unmatched touch experience, compact design leading in portable solution


Universal Probe Interface (UPI)

The Micsig UPI can supply power to Micsig's active probes and configure the probe attenuation ratio with oscilloscope automatically.



Complete Connectivity

Equipped with Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, and Trigger Out interfaces


Portable & Benchtop

Built-in 7500mAh Li-ion battery support 4/5h long field work, Power-off lock secure safety to carry and store; Triangle back stand make sure it sits on the bench solidly as well.


Deep 220Mpts Memory Depth

Using hardware-based Zoom technology and max 220Mpts memory depth, users can capture signals at longer time periods at higher resollution, and to see more details


Max300,000 wfms/s waveform capture rate, the TO series can easily capture unusual or low-probability events.


Powerful Trigger Functions

Support Edge, Pulse, Runt, Logic, N-edge, Video, Timeout, Slope etc.


Serial Bus Decoding Function (Standard)

Support UART、CAN、LIN、SPI、I2C, also able to output the decoded data in Text mode or to CSV format


31 Auto Measurements

can be one-press displayed and cleared on the screen


Support Hardware Digital Filter

Rule out insignificant frequency components to eliminate interference.


Segmented Storage Acquisition

Up to 10,000 waveform events can be captured for efficient analysis, helping users to capture occasional signals and more optimally save the data required.


Support Color Temperature function

The trace occurrence is represented by different colors.

Red colors represent events that occur more frequently, while blue is used to mark points that occur less frequently, which help users capture occasional waveform so to set trigger conditions more conveniently.


Support HDMI Function

Useful for presentations on larger screen.


Support mobile APP (Android, iOS) and PC remote control.

Support Wi-Fi network upgrade and FTP data transfer.

Key Specifications

ModelTO3004TO2004TO1004
Bandwidth300MHz200MHz100MHz
Analog channel4
44
Rise Time≤1.16ns≤1.75ns≤3.5ns
Max. Sampling Rate2GSa/S2GSa/S1GSa/S
Max. Memory Depth220Mpts220Mpts110Mpts
Waveform capture rate (Max) 300,000 wfms/s 300,000 wfms/s 78,000 wfms/s
Input sensitivity range 1mV/div ~ 10V/div (1MΩ);1mV/div ~ 1V/div (50Ω)1mV/div ~ 10V/div
Bandwith Filter20MHz、High Pass / Low Pass (to 30Hz) 20MHz、High Pass / Low Pass (to 30KHz)
Segmented StorageSupport,capture max 10,000 waveform eventsNot Support
Input impedance1MΩ/50Ω1MΩ
Timebase range1ns/div ~ 1ks/div2ns/div ~ 1ks/div
Trigger typesEdge、Pulse Width、Logic、Nth Edge、Runt、Slope,、Time Out,、Video
Bus decodingUART、CAN、CAN FD、LIN、SPI、I²C

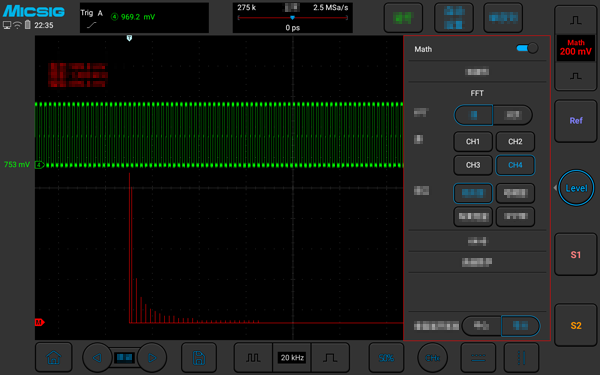

Advanced MathSqrt()、 Abs()、Deg()、 Rad()、Exp()、Diff()、ln()、Sine()、Cos()、Tan()、 Intg()、 Log()、arcsin()、arccos()、arctan()
InterfacesWi-Fi、USB 3.0/2.0 Host、USB type-C、Grounding、HDMI、Trigger out
Storage32GB
Display10.1 Inch LCD capacitive touch display,1280*800 resolution,11*10 grids
Battery7.4V、7500mAh Li-Ion battery / 2H duration7.4V、7500mAh Li-Ion battery / 5H duration
Size/Net weight265*192*50mm / 1.9kg(with battery)

Key Specifications

ModelTO3004TO2004TO1004
Bandwidth300MHz200MHz100MHz
Analog channel4
44
Rise Time≤1.16ns≤1.75ns≤3.5ns
Max. Sampling Rate2GSa/S2GSa/S1GSa/S
Max. Memory Depth220Mpts220Mpts110Mpts
Waveform capture rate (Max) 300,000 wfms/s 300,000 wfms/s 78,000 wfms/s
Input sensitivity range 1mV/div ~ 10V/div (1MΩ);1mV/div ~ 1V/div (50Ω)1mV/div ~ 10V/div
Bandwith Filter20MHz、High Pass / Low Pass (to 30Hz) 20MHz、High Pass / Low Pass (to 30KHz)
Segmented StorageSupport,capture max 10,000 waveform eventsNot Support
Input impedance1MΩ/50Ω1MΩ
Timebase range1ns/div ~ 1ks/div2ns/div ~ 1ks/div
Trigger typesEdge、Pulse Width、Logic、Nth Edge、Runt、Slope,、Time Out,、Video
Bus decodingUART、CAN、CAN FD、LIN、SPI、I²C
Advanced MathSqrt()、 Abs()、Deg()、 Rad()、Exp()、Diff()、ln()、Sine()、Cos()、Tan()、 Intg()、 Log()、arcsin()、arccos()、arctan()
InterfacesWi-Fi、USB 3.0/2.0 Host、USB type-C、Grounding、HDMI、Trigger out
Storage32GB
Display10.1 Inch LCD capacitive touch display,1280*800 resolution,11*10 grids
Battery7.4V、7500mAh Li-Ion battery / 2H duration7.4V、7500mAh Li-Ion battery / 5H duration
Size/Net weight265*192*50mm / 1.9kg(with battery)
