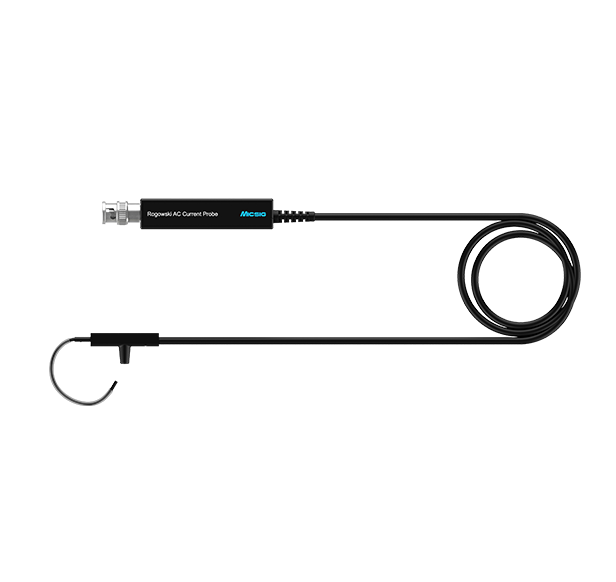

Rogowski AC Current Probe RCP series

Bandwidth:10Hz - 30MHz

Coil cross-section (diameter):1.6mm

Accuracy (typical):1%

Current Range:200mApk - 600Apk

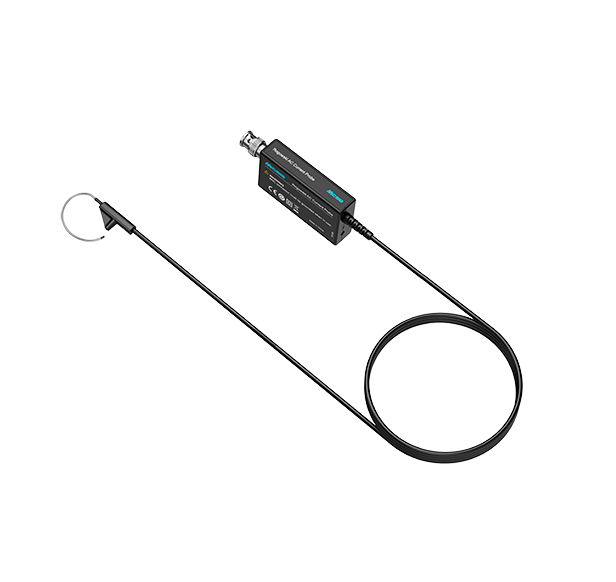

Rogowski AC Current Probe RCP series

Bandwidth:10Hz - 30MHz

Coil cross-section (diameter):1.6mm

Accuracy (typical):1%

Current Range:200mApk - 600Apk

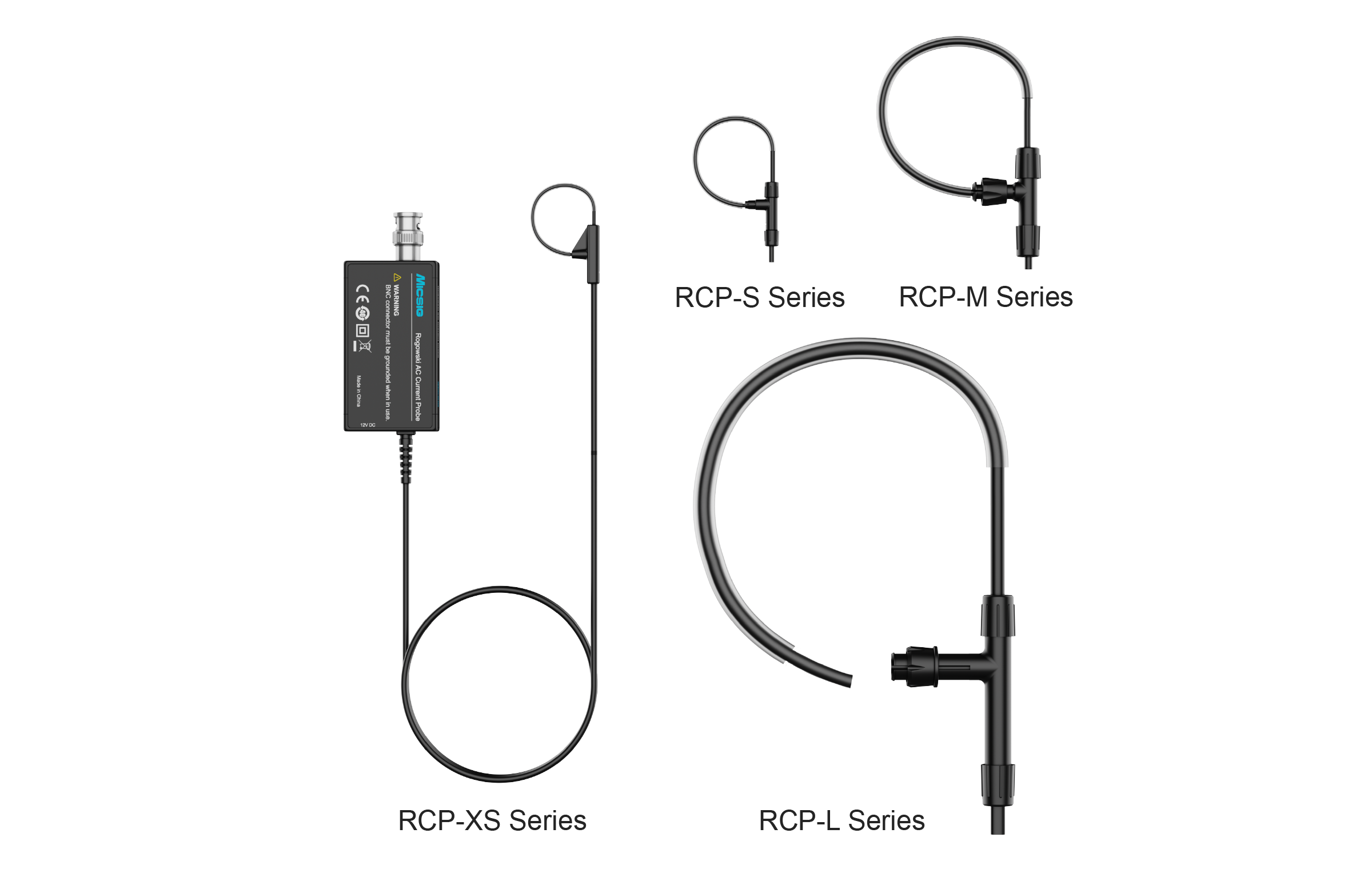

Rogowski AC Current Probe RCP series

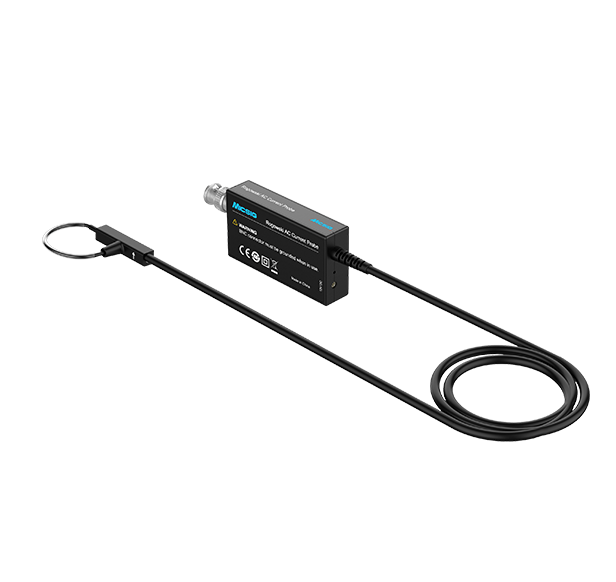

RCP series Rogowski coil current probe measures AC currents up to 600Apk, with bandwidth ranging from 10 Hz to 30 MHz, typical accuracy up to 1%, measures high-frequency, large current signals more easily and accurately.

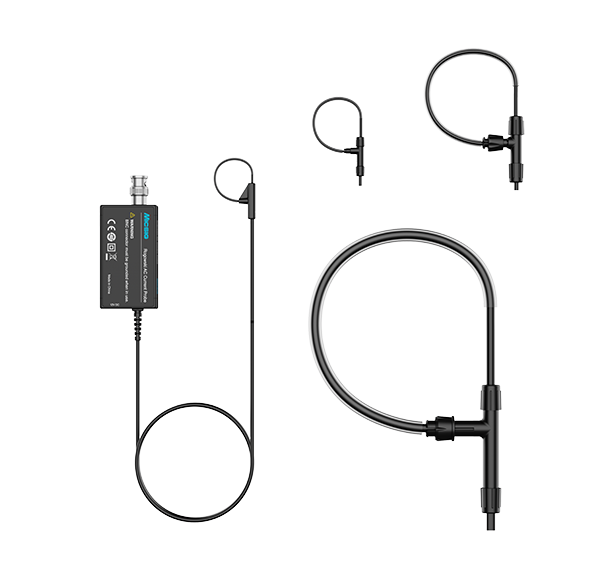

The RCP features excellent performance and exquisite design, a thin, flexible, clip-around Rogowski coil allow user to conduct measurements without damaging the conductor and have no interference to the DUT. Wire length and coil size can be customized, provides various choice to your daily design, and troubleshooting.

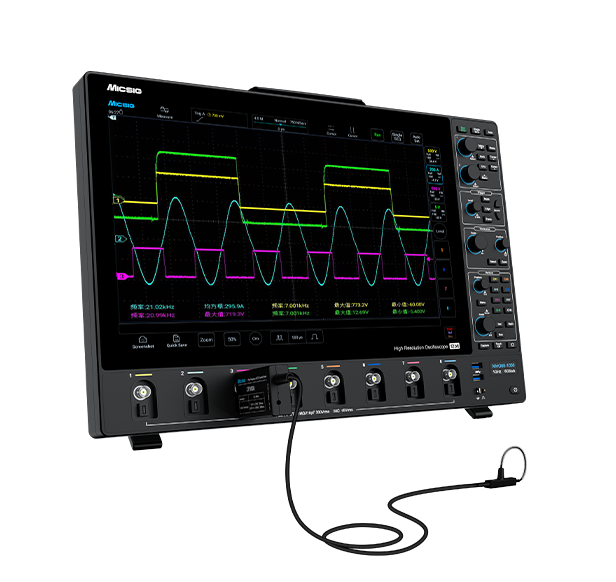

BNC interface

BNC interface

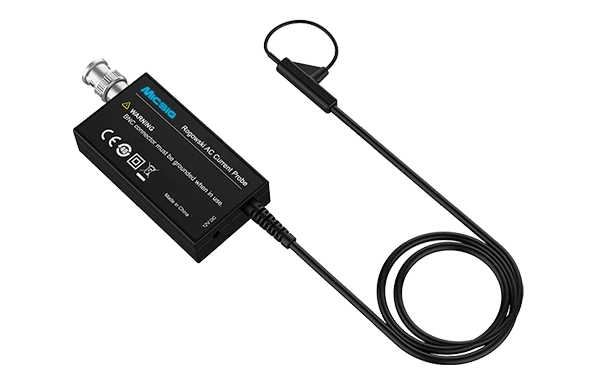

Standard BNC interface, compatible with any oscilloscope.

Smallest coil cross-section

Smallest coil cross-section

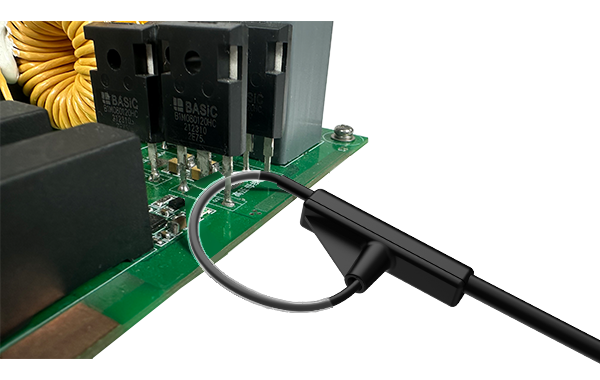

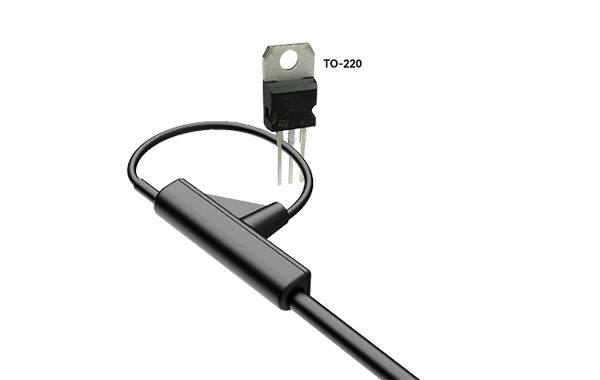

The cross-sectional diameter of the coil is only 1.6mm, allow engineers measure current in most difficult-to-reach parts of the circuit, such as narrow pin spacing chip like TO-220, TO-47.

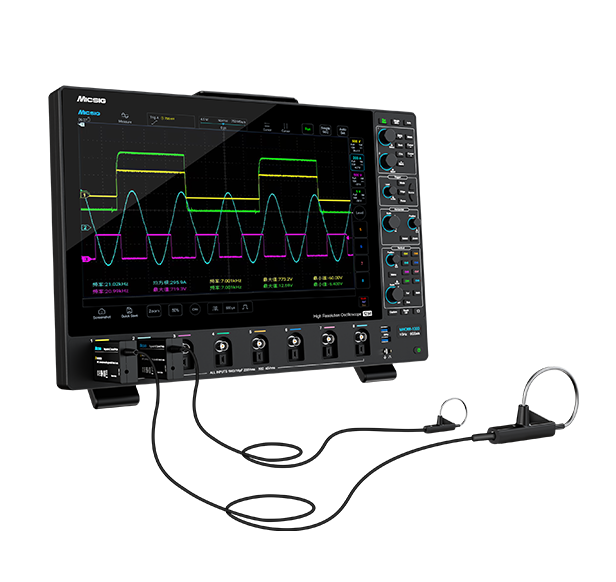

​Measure the Id current of MOSFET

Measure the Id current of MOSFET

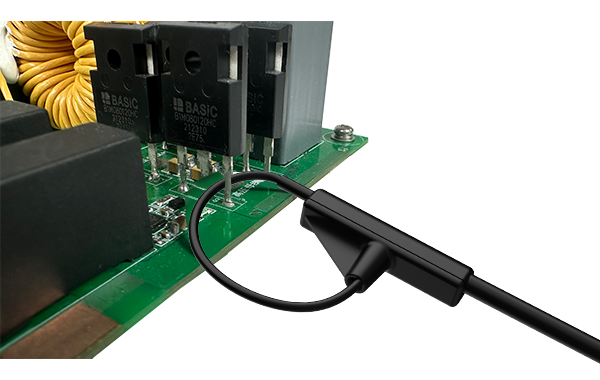

The RCP has excellent high-frequency measurement capabilities, easily handles high-speed signals and rapidly changing current waveforms, helping to observe high-frequency harmonic components when measuring the Id current of MOSFETs. (as shown the oscillation section).

​Applications

Applications

● Measurement of 50/60Hz power frequency current

● Measurement of harmonic components in the current

● Measurement of pin currents in MOSFET or IGBT devices

● Measurement of load current and high-order harmonic current in power electronics

Rogowski AC Current Probe RCP series

RCP series Rogowski coil current probe measures AC currents up to 600Apk, with bandwidth ranging from 10 Hz to 30 MHz, typical accuracy up to 1%, measures high-frequency, large current signals more easily and accurately.


The RCP features excellent performance and exquisite design, a thin, flexible, clip-around Rogowski coil allow user to conduct measurements without damaging the conductor and have no interference to the DUT. Wire length and coil size can be customized, provides various choice to your daily design, and troubleshooting.


BNC interface

BNC interface

Standard BNC interface, compatible with any oscilloscope.


Smallest coil cross-section

Smallest coil cross-section

The cross-sectional diameter of the coil is only 1.6mm, allow engineers measure current in most difficult-to-reach parts of the circuit, such as narrow pin spacing chip like TO-220, TO-47.


Measure the Id current of MOSFET

Measure the Id current of MOSFET

The RCP has excellent high-frequency measurement capabilities, easily handles high-speed signals and rapidly changing current waveforms, helping to observe high-frequency harmonic components when measuring the Id current of MOSFETs. (as shown the oscillation section).


Applications

Applications

● Measurement of 50/60Hz power frequency current

● Measurement of harmonic components in the current

● Measurement of pin currents in MOSFET or IGBT devices

● Measurement of load current and high-order harmonic current in power electronics

Key Specifications

ModelRCP300XSRCP600XS
Bandwidth10Hz - 30MHz10Hz - 30MHz
Measurement range200mApk - 300Apk200mApk - 600Apk
Output sensitivity20mV/A (50X)10mV/A(100X)
Accuracy (typical)1%1%
Noise<18mVpp<12mVpp
Peak coil isolation voltageAC 1kVrms (1 min)   (50Hz/60Hz) (Rogowski coil part only)
Coil cross-section diameter1.6mm
Interface1MΩ BNC

Key Specifications

ModelRCP300XSRCP600XS
Bandwidth10Hz - 30MHz10Hz - 30MHz
Measurement range200mApk - 300Apk200mApk - 600Apk
Output sensitivity20mV/A (50X)10mV/A(100X)
Accuracy (typical)1%1%
Noise<18mVpp<12mVpp
Peak coil isolation voltageAC 1kVrms (1 min)   (50Hz/60Hz) (Rogowski coil part only)
Coil cross-section diameter1.6mm
Interface1MΩ BNC
