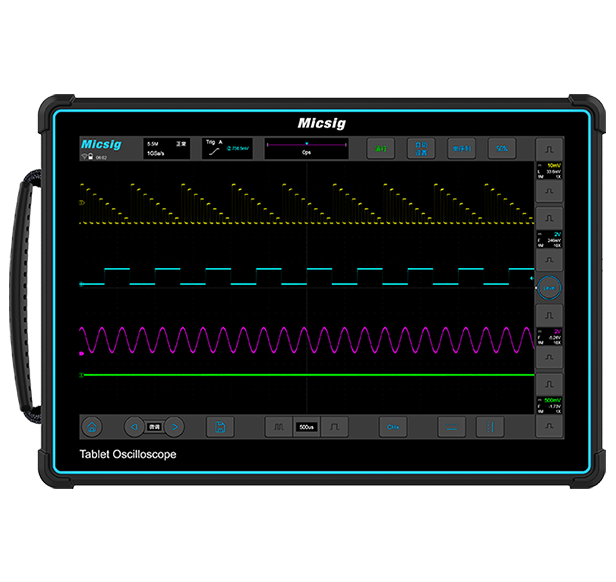

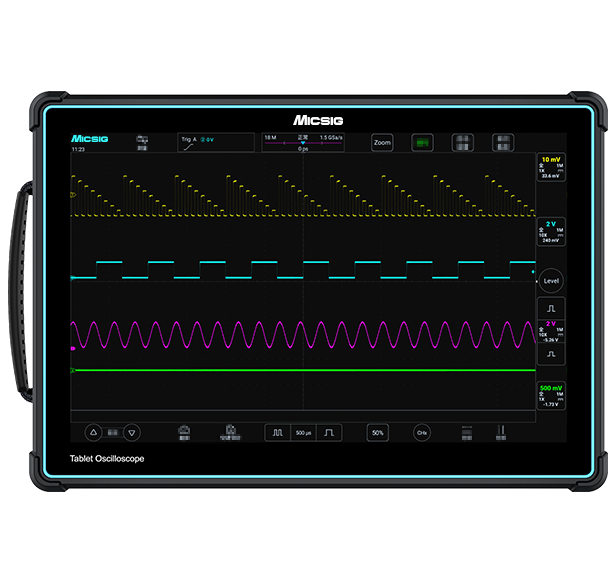

GEN 5 Tablet Oscilloscope

ETO Series

Bandwidth:350MHz-500MHz

Sampling Rate:3GSa/s

Memory Depth:360Mpts

Analog Channels:4

Display:14 inches, 1920*1200

GEN 5 Tablet Oscilloscope

ETO Series

Bandwidth:350MHz-500MHz

Sampling Rate:3GSa/s

Memory Depth:360Mpts

Analog Channels:4

Display:14 inches, 1920*1200

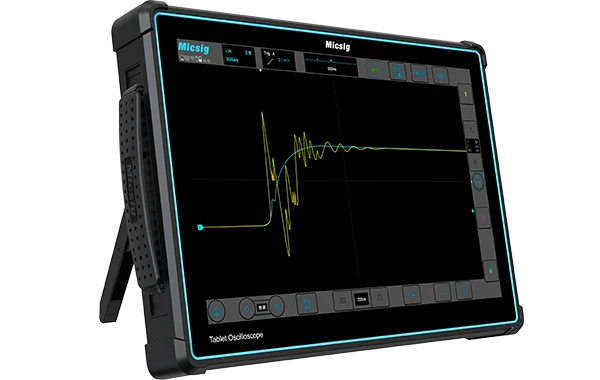

Oscillsocope ETO Series

Equipped with dedicated SigtestUI™ multitasking system, the ETO series is very smooth to operate. Soft rubber protected slim body, with a 14-inch integrated touch screen and highest resolution of 1920 x 1200 pixels, brings ultra-clear waveform display you might never experienced.

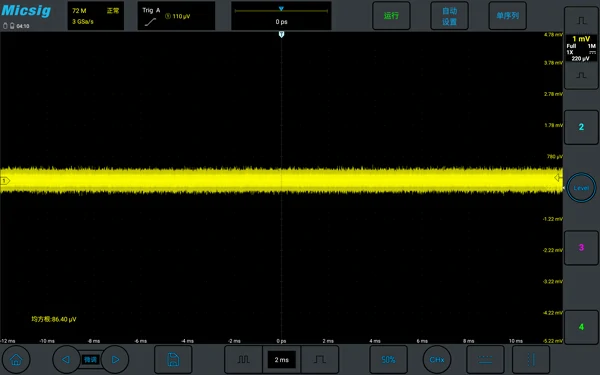

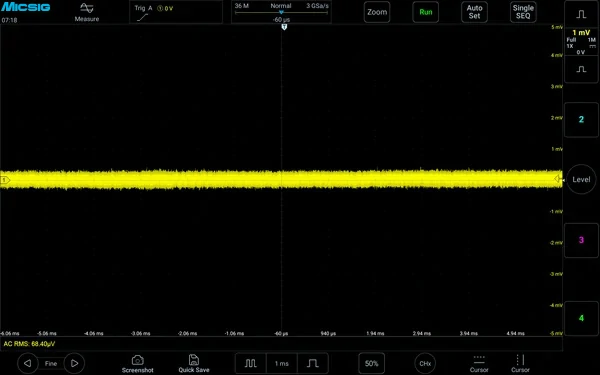

Ultra-low Noise Floor

Ultra-low Noise Floor

Less than 90μVrms noise floor even at 500M full bandwidth, able to capture weak but important events during signal debugging and analysis.

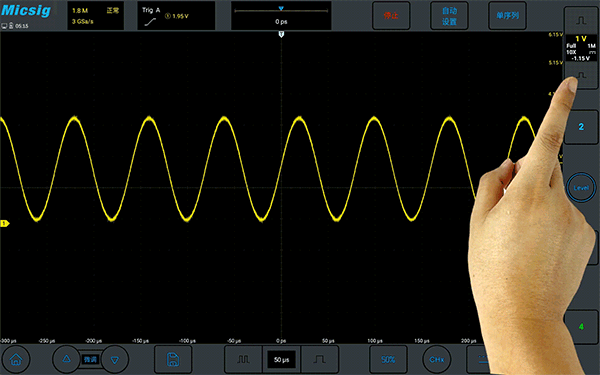

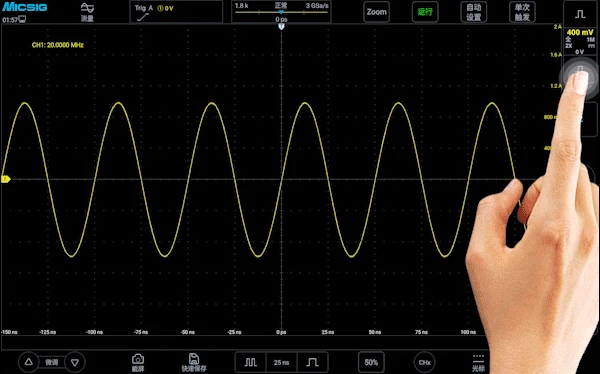

Intuitive Operating Interface

Intuitive Operating Interface

Equipped with Micsig's dedicated instruments system -- the SigTest UI, all operations on the ETO can be completed easily and quickly, it's a combination of thousands suggestions from our engineer users.

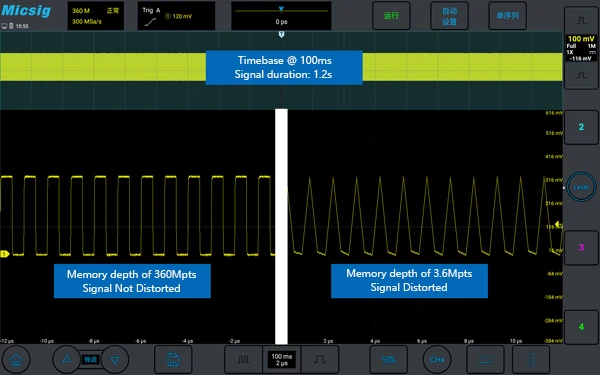

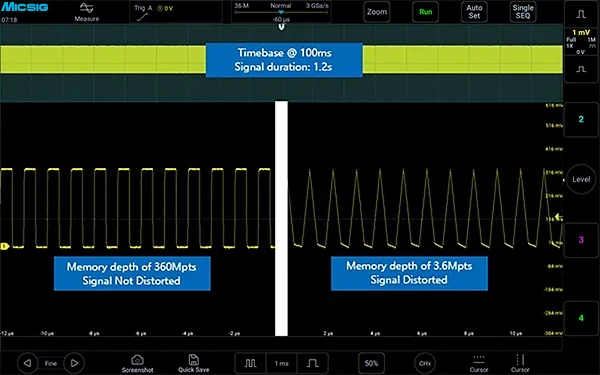

Abundant Memory Depth

Deep Memory

Up to 360Mpts memory depth, ensuring excellent signal fidelity even at large timebase.

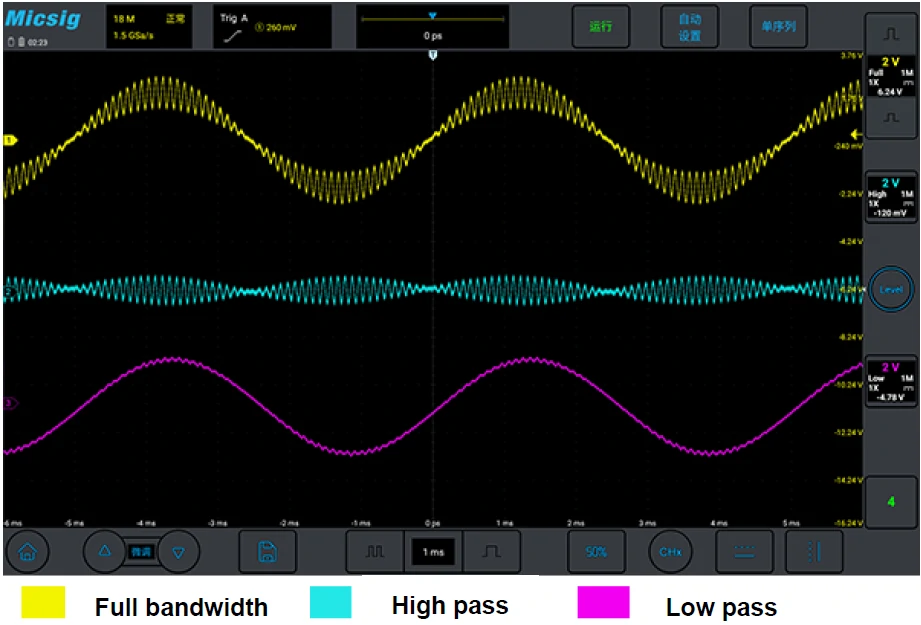

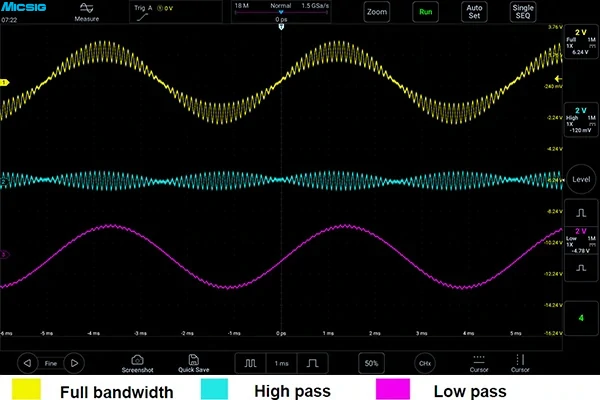

Hardware Digital Filter

Hardware Digital Filter

ETO series can selectively pass or block components within specific frequency ranges. The range can go as low as 30Hz, effectively filtering out interference and noise, greatly improves accuracy and reliability.

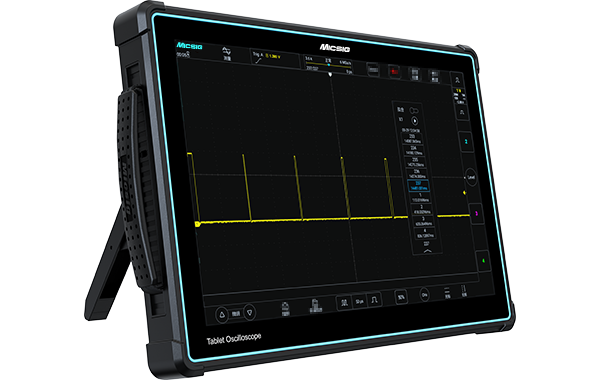

13,500mAh large battery

Built-in 13,500mAh large battery, the ETO can be used on desktop or take out for field test. Support power-off lock, more secure to transport.

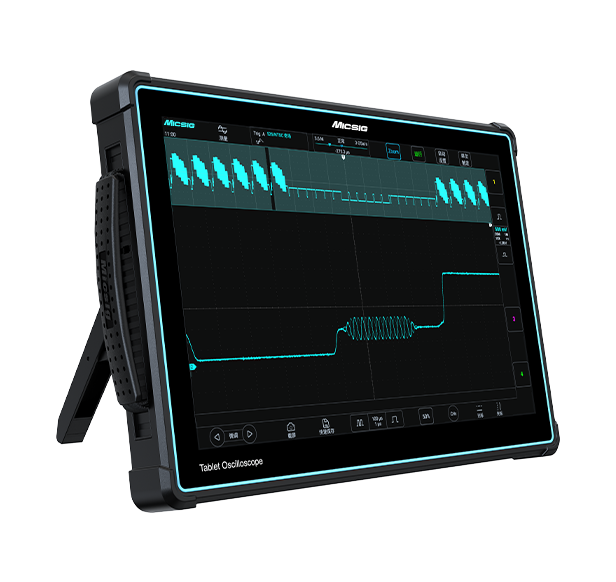

Standard 75mm x 75mm VESA mount interface, extends more compatibility.

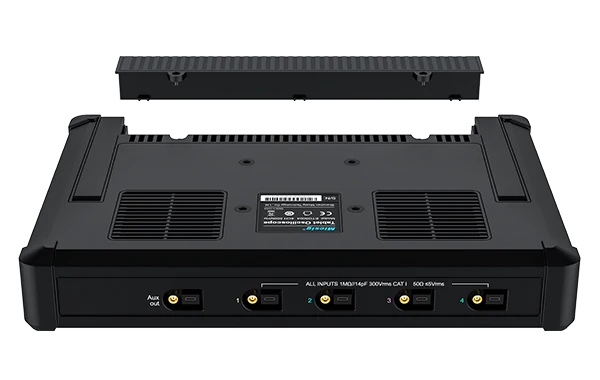

Equipped with a variety of ports

Equipped with a variety of ports, including USB 3.0/2.0 Host, USB Device, grounding socket, HDMI, Trigger out, etc.

Oscillsocope ETO Series

Equipped with dedicated SigtestUI™ multitasking system, the ETO series is very smooth to operate. Soft rubber protected slim body, with a 14-inch integrated touch screen and highest resolution of 1920 x 1200 pixels, brings ultra-clear waveform display you might never experienced.


Ultra-low Noise Floor

Ultra-low Noise Floor

Less than 90μVrms noise floor even at 500M full bandwidth, able to capture weak but important events during signal debugging and analysis.


Intuitive Operating Interface

Intuitive Operating Interface

Equipped with Micsig's dedicated instruments system -- the SigTest UI, all operations on the ETO can be completed easily and quickly, it's a combination of thousands suggestions from our engineer users.


Abundant Memory Depth

Abundant Memory Depth

Up to 360Mpts memory depth, ensuring excellent signal fidelity even at large timebase.


Hardware Digital Filter

Hardware Digital Filter

ETO series can selectively pass or block components within specific frequency ranges. The range can go as low as 30Hz, effectively filtering out interference and noise, greatly improves accuracy and reliability.


13,500mAh large battery

Built-in 13,500mAh large battery, the ETO can be used on desktop or take out for field test. Support power-off lock, more secure to transport.


Standard 130mm x 300mm VESA mount interface, extends more compatibility.


Equipped with a variety of ports

Equipped with a variety of ports, including USB 3.0/2.0 Host, USB Device, grounding socket, HDMI, Trigger out, etc.

Key Specifications

ModelETO5004ETO3504
Bandwidth500MHz350MHz
Rise Time≤0.7ns≤1ns
Analog channels44
Real-time sampling rate3GSa/s3GSa/s
Memory Depth360Mpts360Mpts
Max. waveform capture rate230,000wfms/s
Vertical Resolution8bit
Noise<90μVrms
InterfacesUSB 3.0/2.0 Host、USB Type-C、HDMI、Trigger out
Display14" full touch display, 1920 x 1200 resolution
Battery7.4V/13500mAh Li-Ion battery
Dimension / Net Weight353*245*56mm/3.6kg (with battery)

Key Specifications

ModelETO5004ETO3504
Bandwidth500MHz350MHz
Rise Time≤0.7ns≤1ns
Analog channels44
Real-time sampling rate3GSa/s3GSa/s
Memory Depth360Mpts360Mpts
Max. waveform capture rate230,000wfms/s
Vertical Resolution8bit
Noise<90μVrms
InterfacesUSB 3.0/2.0 Host、USB Type-C、HDMI、Trigger out
Display14" full touch display, 1920 x 1200 resolution
Battery7.4V/13500mAh Li-Ion battery
Dimension / Net Weight353*245*56mm/3.6kg (with battery)
