Waveform Update Rate (Max)：270,000 wfm/s

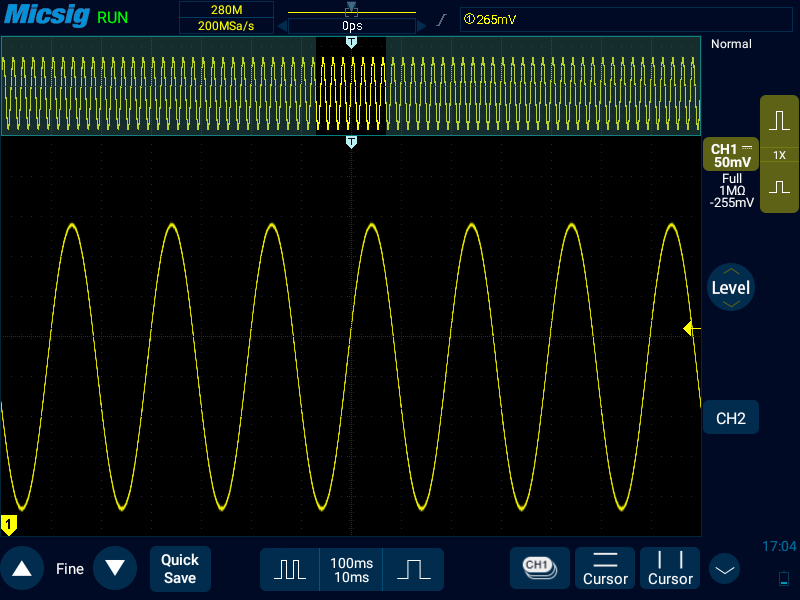

Up to 280Mpts memory depth, Zoom into a selected part of the captured waveforms to get more details.

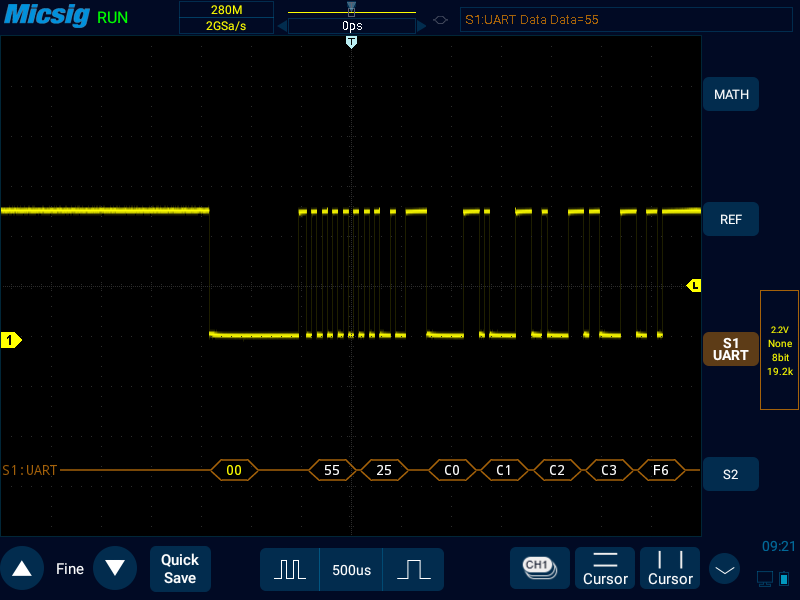

Support serial triggering and decode (I2C, SPI, RS232/UART,CAN, LIN) and Aerospace and defence (MIL-STD 1553, ARINC 429). Two formats to display decoding, text and graphic.

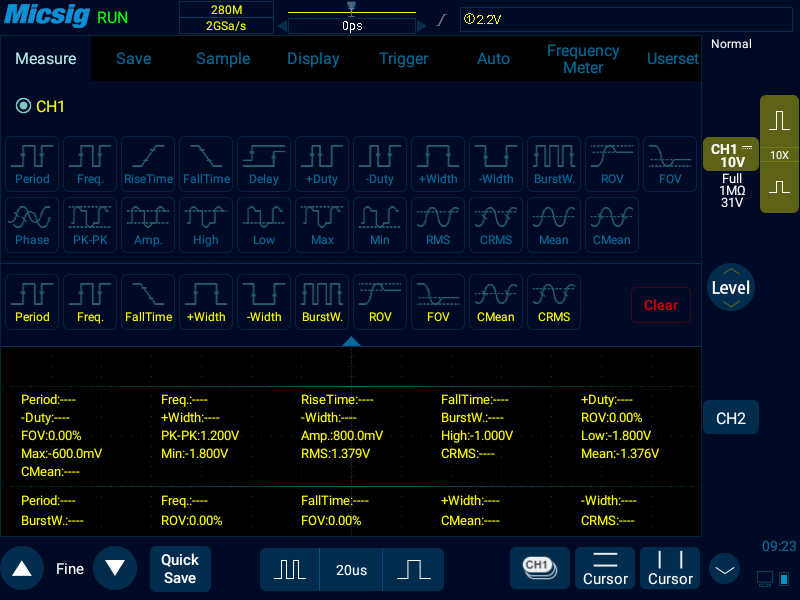

31 automatic measurements. Various automatic measurements can meet different measurement demand. It can be display all in one page.

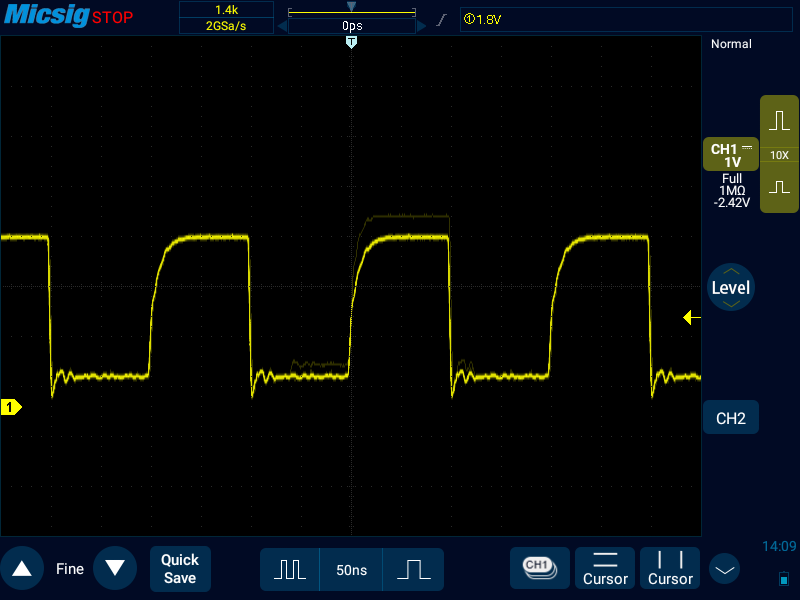

Up to 130,000wfm/s capture rate (Max 270,000wfm/s in segmented mode). By increasing the waveform capture rate, you can see the complete status of the signal.

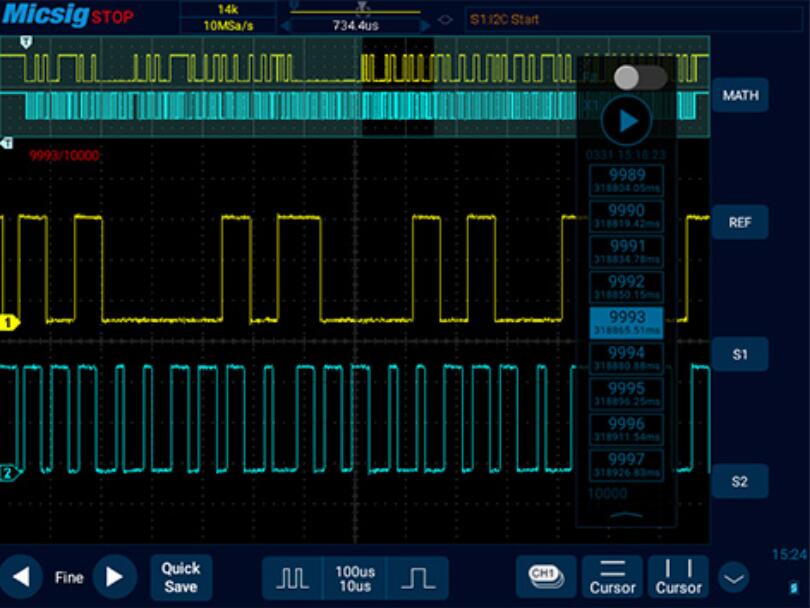

Support Segmented Memory function, present waveform details more efficiently, capture multiple waveform events at a sufficient sampling rate for effective analysis. Waveforms can be fitting displayed on multi-screens, also can be viewed frame by frame, helping users to find occasional signals quickly.

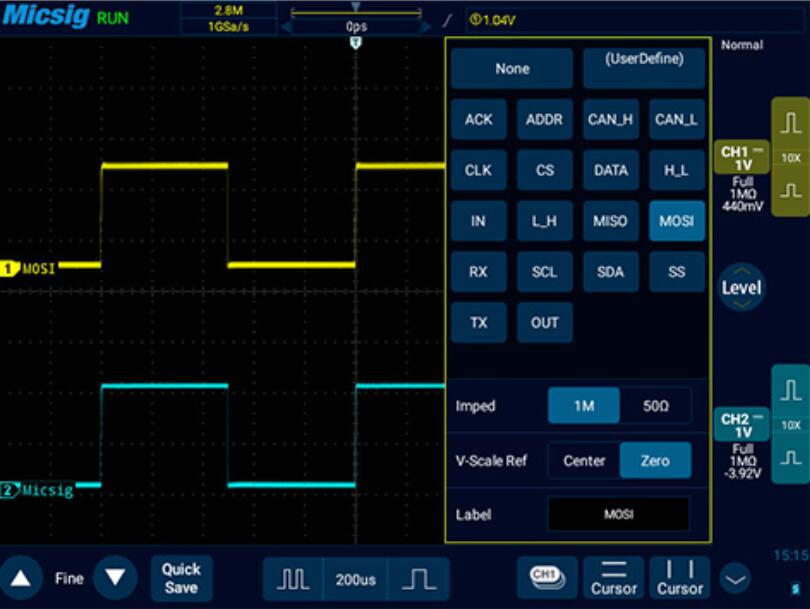

Channel Label function allows users to rename the channel at ease.

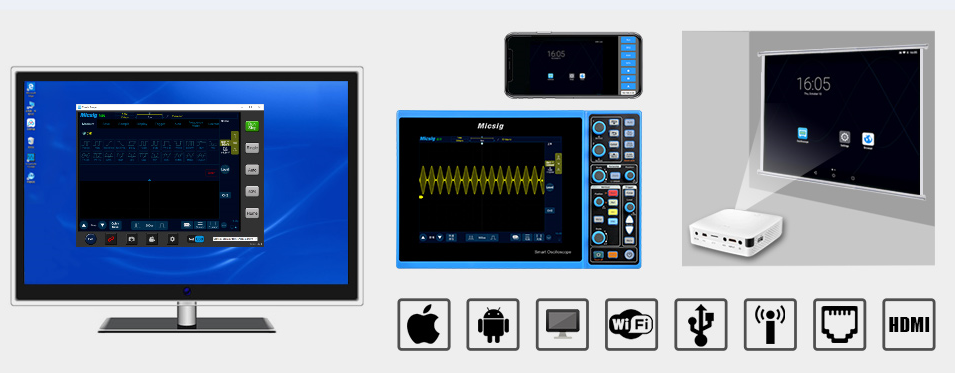

Support PC, Smart phone App (Android & iOS) remote control and HDMI connection for education or public presentation.
