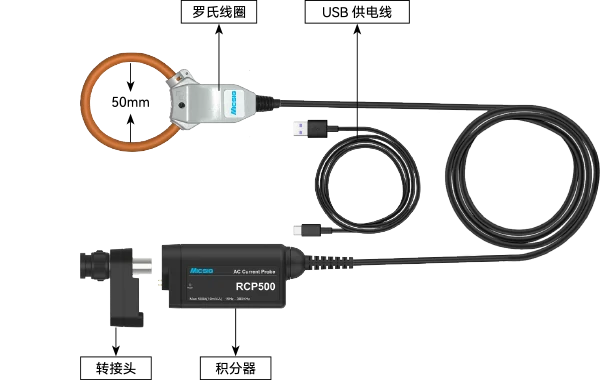

RCP500 Rogowski AC Current Probe


Bandwidth:15-300KHz(-3dB)

Current range:200mApk-500Apk

Output Sensitivity:10mV/A

Typical Accuracy:1%

RCP500 Rogowski AC Current Probe


Bandwidth:15-300KHz(-3dB)

Current range:200mApk-500Apk

Output Sensitivity:10mV/A

Typical Accuracy:1%

1. Flexible & slender clamp body, easy to measure;

2. Safe and convenient, no overload danger;

3. Bandwidth 15~300KHz, with max. current 500Apk;

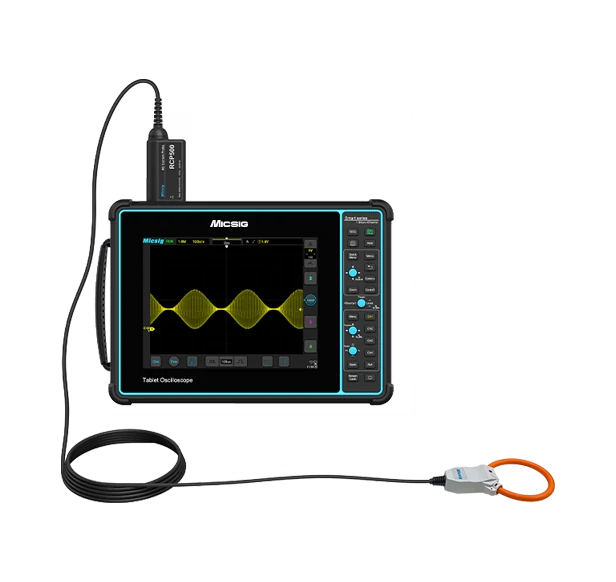

4. Directly powered by Micsig UPI interface, no need extra power supply;

5. Can be powered by USB for non-UPI oscilloscopes;

1. Flexible & slender clamp body, easy to measure;

2. Safe and convenient, no overload danger;

3. Bandwidth 15~300KHz, with max. current 500Apk;

4. Directly powered by Micsig UPI interface, no need extra power supply;

5. Can be powered by USB for non-UPI oscilloscopes;

Key Specifications

                                             Model                                                                                                RCP500
Bandwidth15-300KHz   (-3dB )
Current range 200mApk-500Apk
Output ConnectorPowered BNC / External BNC
Output Sensitivity10mV/A
Typical Accuracy1%
Phase Accuracy ≤0.8° (45Hz-66Hz)
Temperature CoefficientOperating temp. range + 0.05 × Accuracy Specification /℃ (23℃±5℃)
Conductor Positional AccuracyWithin ±1% (Deviation from the Center)
Influence of External Magnetic Fields1.5% f.s. or below (400A/m,50Hz/60Hz)
Offset Voltage±1mV or below
Max VoltageAC 10kV RMS (1 minute), (50Hz/60Hz) (Rogowski coil part only)
Output ImpedanceHigh resistance
Output Noise<2mv rms
Conductor Under Test Diameter≤Φ50mm
Power SupplyDC 5V
Coil to Integrator Cable Length  2m (customizable)
Integrator Dimensions37*22*82mm
Rogowski Coil Inner Diameter50mm(customizable)
Rogowski Coil ThicknessApprox. φ6mm
Environmental Characteristics
Operating Temperature-20-70℃
Storage Temperature-30℃-70℃
Operating HumidityMax 80%,no condensation
Operating Altitude≤ 2000m
Operating PlaceIndoor use, Pollution Degree 2.

Key Specifications

ModelRCP500
Bandwidth15-300KHz   (-3dB )
Current range 200mApk-500Apk
Output ConnectorPowered BNC / External BNC
Output Sensitivity10mV/A
Typical Accuracy1%
Phase Accuracy ≤0.8° (45Hz-66Hz)
Temperature CoefficientOperating temp. range + 0.05 × Accuracy Specification /℃ (23℃±5℃)
Conductor Positional AccuracyWithin ±1% (Deviation from the Center)
Influence of External Magnetic Fields1.5% f.s. or below (400A/m,50Hz/60Hz)
Offset Voltage±1mV or below
Max VoltageAC 10kV RMS (1 minute), (50Hz/60Hz) (Rogowski coil part only)
Output ImpedanceHigh resistance
Output Noise<2mv rms
Conductor Under Test Diameter≤Φ50mm
Power SupplyDC 5V
Coil to Integrator Cable Length  2m (customizable)
Integrator Dimensions37*22*82mm
Rogowski Coil Inner Diameter50mm(customizable)
Rogowski Coil ThicknessApprox. φ6mm
Environmental Characteristics
Operating Temperature-20-70℃
Storage Temperature-30℃-70℃
Operating HumidityMax 80%,no condensation
Operating Altitude≤ 2000m
Operating PlaceIndoor use, Pollution Degree 2.
