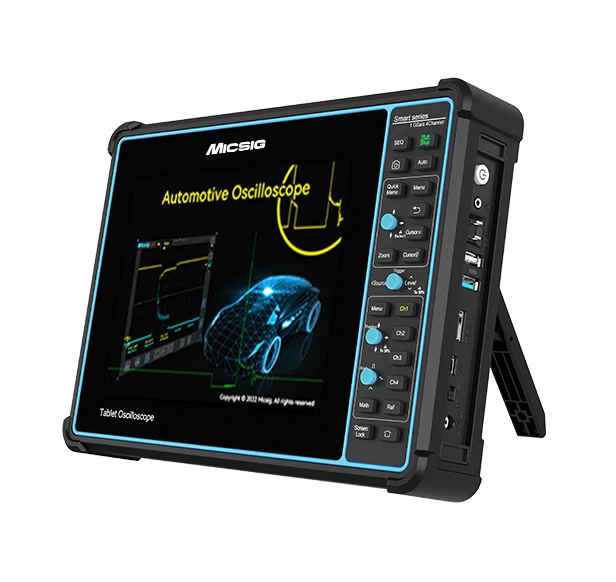

Automotive Tablet Oscilloscope SATO series


Bandwidth:100MHz

Sampling Rate:1GSa/s

Memory Depth:70Mpts

Channels:4


Automotive Tablet Oscilloscope SATO series

Bandwidth:100MHz

Sampling Rate:1GSa/s

Memory Depth:70Mpts

Channels:4



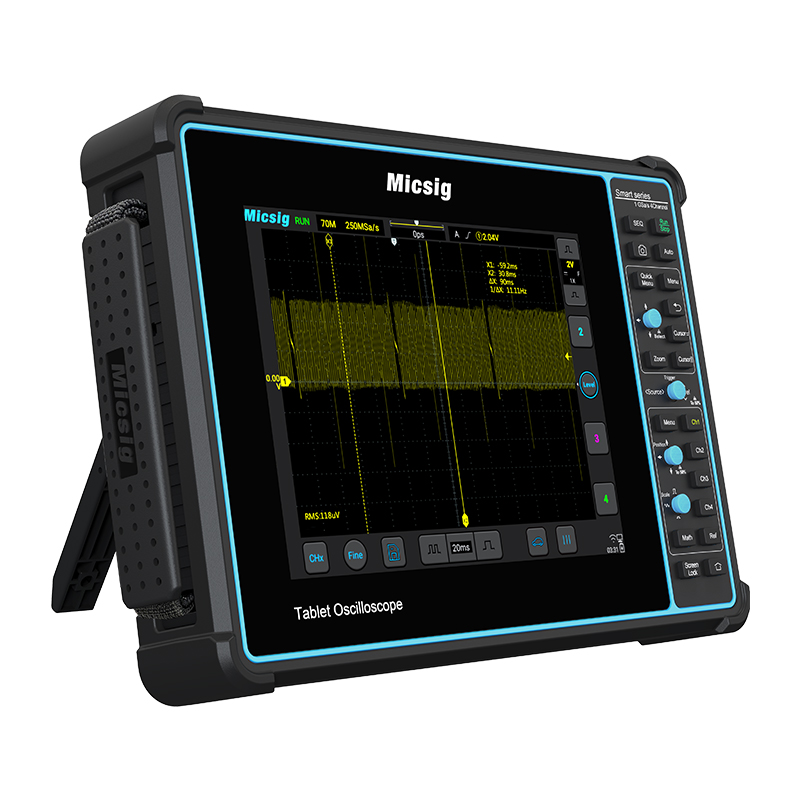

Micsig SATO screen resolution

Unparalleled Operating Experience

8-inch TFT-LCD capacitive touch screen with 800 * 600 resolution, interagtes a new generation of hardware & software technologies


SATO high sampling rate

Professional Performance


High bandwidth, High sampling rate, Large memory depth, excellent signal capture performance

SATO portable oscilloscope

Portable & Benchtop


Built-in 7500mAh Li-ion battery support 5h long field work;

Power-off lock secure safety to carry and store;

Triangle link rear stand make sure it sits on the bench solidly


automotive diagnostic testing

Charging / Start Circuit Tests


Support 12V & 24V charging/start, Charging Ripple, Cranking Current and other tests


automotive air flow meter testing

Various Sensor Tests


Supports testing of ABS, Accelerator Pedal, Throttle Position, Fuel Pressure, Air Flow meter, Crankshaft, Camshaft, Knock, MAP, etc.


automotive actuator tests

Actuators


One-press to get signals, Fast and Easy.

Support various Actuator tests: multiple fuel injector voltages and currents, fan control signals, variable valve timing, carbon canister solenoid valves, EGR solenoid valves, etc.

lgnition test

Ignition

Including Primary ignition, Secondary ignition, and combined Primary+Secondary ignition tests.

automotive oscilloscope network

Network


 CAN (CAN High / CAN Low), CAN FD, LIN, FlexRay, and K line

oscilloscope combination Tests

Combination Tests


Multiple channels of oscilloscope can be measured together to perform a variety of combined tests, such as the combined test of the Crankshaft and the Camshaft, or the combined test of the Primary Ignition and the Fuel Injector Voltage, etc.

SATO Multi-function Button Panel

Multi-function Button Panel

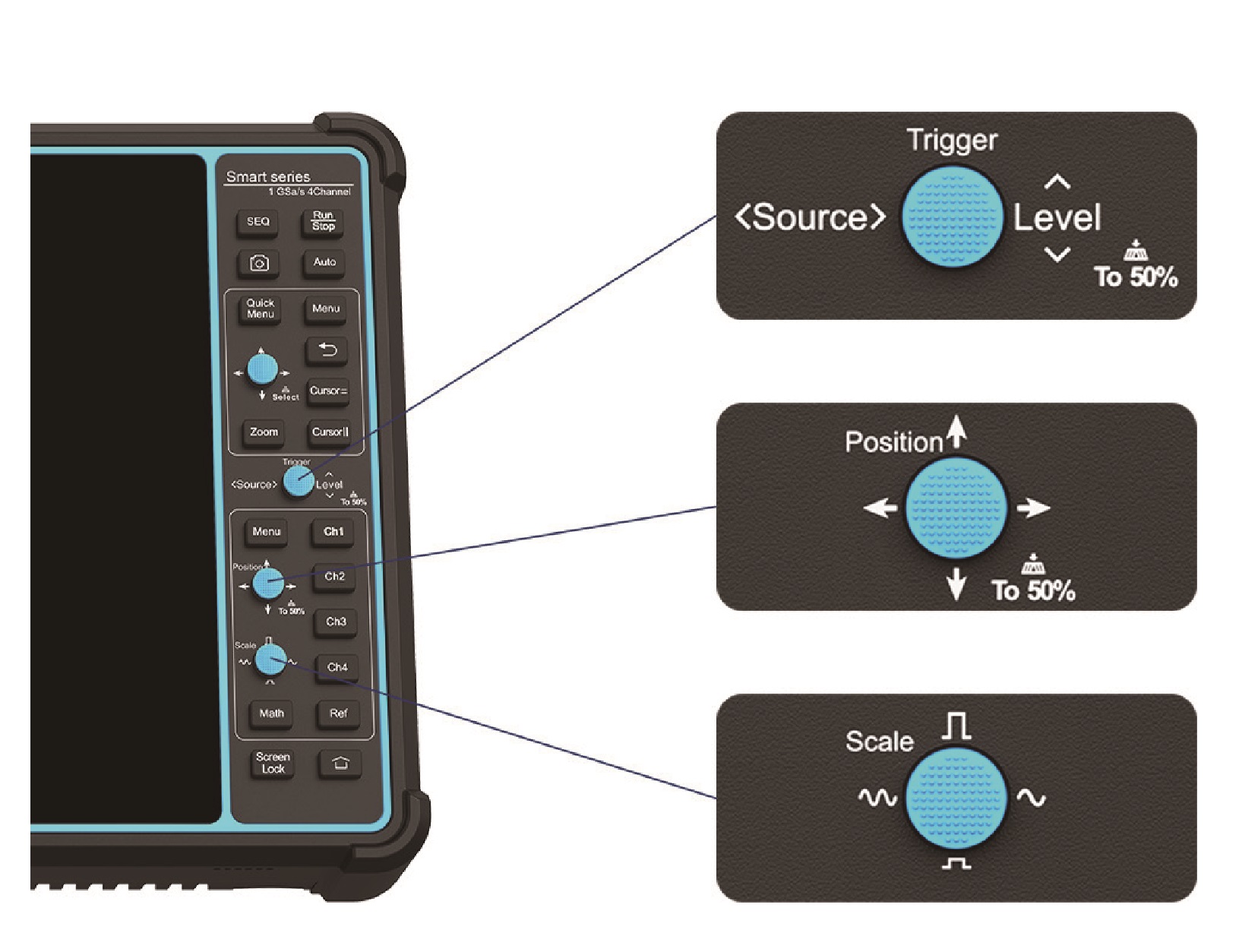

Highly integrated multifunctional buttons, innovative 5-Way navigation sticks, deliver quick & accurate control to various operations.


Upgraded 32GB Internal Storage

Upgraded 32GB Internal Storage

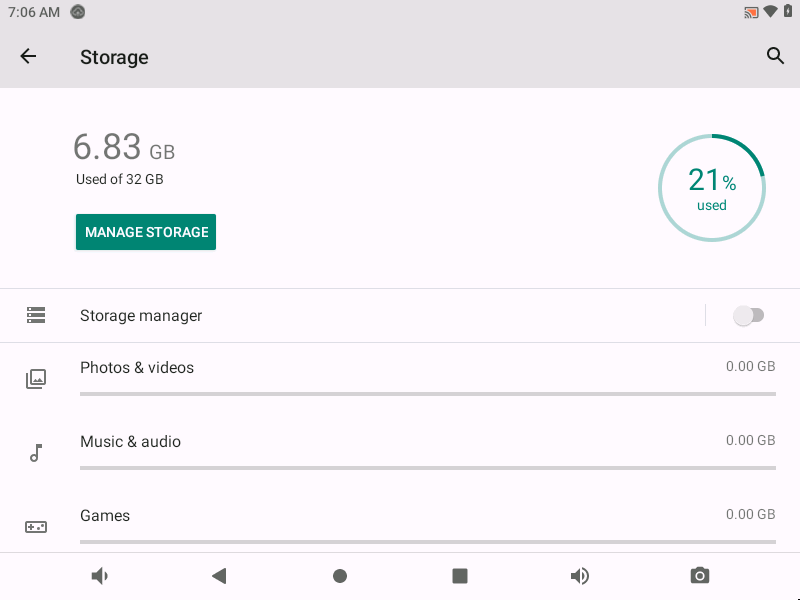

Allow users to store and access mass files, such as Waveforms, Screenshots and Recorded Videos.

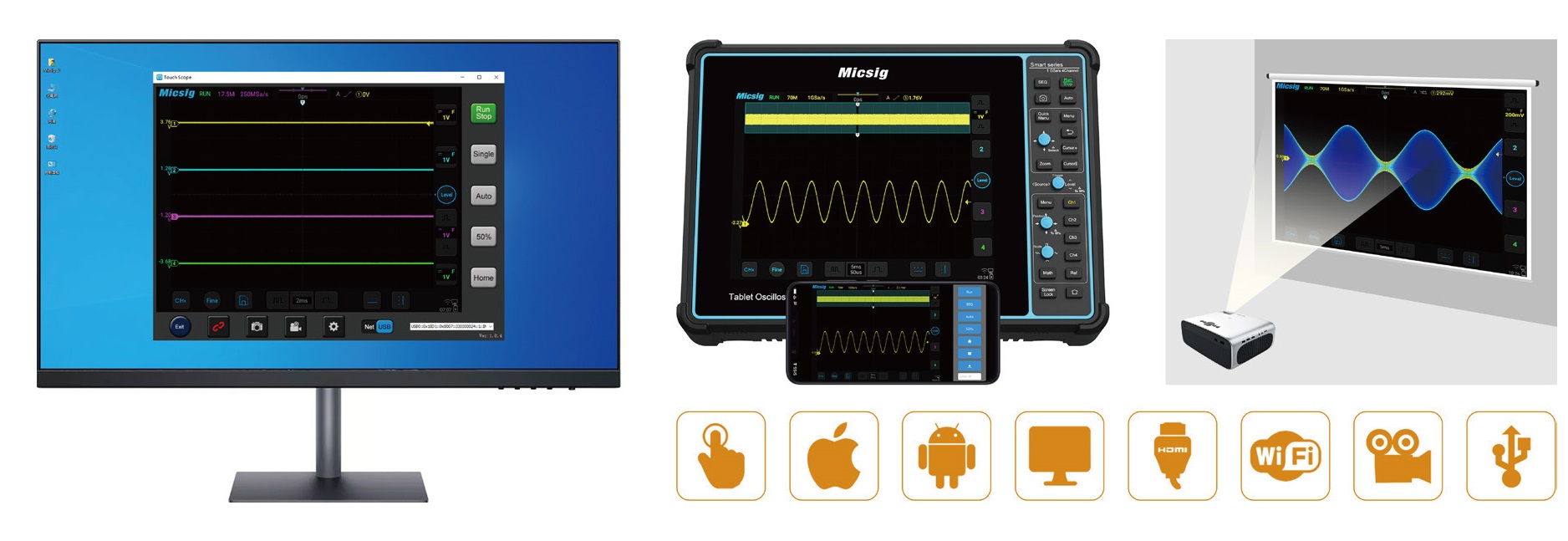

Smart Connections

Smart Connections


PC software + Mobile phone App (Android / iOS) remote control via Wi-Fi, USB; Able to access internet for online upgrade; Can be projected via HDMI port for demonstrations for training and education purpose.

Micsig SATO screen resolution


Unparalleled Operating Experience

8-inch TFT-LCD capacitive touch screen with 800 * 600 resolution, interagtes a new generation of hardware & software technologies.


SATO high sampling rate


Professional Performance

High bandwidth, High sampling rate, Large memory depth, excellent signal capture performance.


SATO portable oscilloscope


Portable & Benchtop

Built-in 7500mAh Li-ion battery support 5h long field work;

Power-off lock secure safety to carry and store;

Triangle link rear stand make sure it sits on the bench solidly.


automotive diagnostic testing


Charging / Start Circuit Tests

Support 12V & 24V charging/start, Charging Ripple, Cranking Current and other tests.


automotive air flow meter testing


Various Sensor Tests

Supports testing of ABS, Accelerator Pedal, Throttle Position, Fuel Pressure, Air Flow meter, Crankshaft, Camshaft, Knock, MAP, etc.


automotive actuator tests


Actuators

One-press to get signals, Fast and Easy.

Support various Actuator tests: multiple fuel injector voltages and currents, fan control signals, variable valve timing, carbon canister solenoid valves, EGR solenoid valves, etc.


lgnition test


Ignition

Including Primary ignition, Secondary ignition, and combined Primary+Secondary ignition tests.


automotive oscilloscope network


Network

CAN (CAN High / CAN Low), CAN FD, LIN, FlexRay, and K line.


oscilloscope combination Tests


Combination Tests

Multiple channels of oscilloscope can be measured together to perform a variety of combined tests, such as the combined test of the Crankshaft and the Camshaft, or the combined test of the Primary Ignition and the Fuel Injector Voltage, etc.


SATO Multi-function Button Panel


Multi-function Button Panel

Highly integrated multifunctional buttons, innovative 5-Way navigation sticks, deliver quick & accurate control to various operations.


Upgraded 32GB Internal Storage


Upgraded 32GB Internal Storage

Allow users to store and access mass files, such as Waveforms, Screenshots and Recorded Videos.


Smart Connections


Smart Connections

PC software + Mobile phone App (Android / iOS) remote control via Wi-Fi, USB; Able to access internet for online upgrade; Can be projected via HDMI port for demonstrations for training and education purpose.


Key Specifications

ModelSATO1004
Bandwidth100MHz
Channels4
Sampling Rate1GSa/s (single channel)
Memory Depth70Mpts (single channel)
Support Test

Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, CAN FD, LIN, Flexray, K line), Combination Tests

Bandwidth FilterFull bandwidth, Low pass
I/O PortWi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out
Display8" TFT LCD capacitive touch screen, 800*600 pixels, 14*10 grids
Dimension / Net Weight265*192*50mm / 1.9kg (with battery)


Key Specifications

ModelSATO1004
Bandwidth100MHz
Channels4
Sampling Rate1GSa/s (single channel)
Memory Depth70Mpts (single channel)
Support Test

Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, CAN FD, LIN, Flexray, K line), Combination Tests

Bandwidth FilterFull bandwidth, Low pass
I/O PortWi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out
Display8" TFT LCD capacitive touch screen, 800*600 pixels, 14*10 grids
Dimension / Net Weight265*192*50mm / 1.9kg (with battery)
