Tablet Oscilloscope

TO1000 Series

Bandwidth:100/150MHz

Sampling Rate:1GSa/s

Memory Depth:28Mpts

Analog Channels:2/4

Max. waveform capture rate:130,000 wfm/s

Tablet Oscilloscope

TO1000 Series

Bandwidth:100/150MHz

Real-time sampling rate:1GSa/s

Memory Depth:28Mpts

Analog Channels:2/4

Max. waveform capture rate:130,000 wfm/s

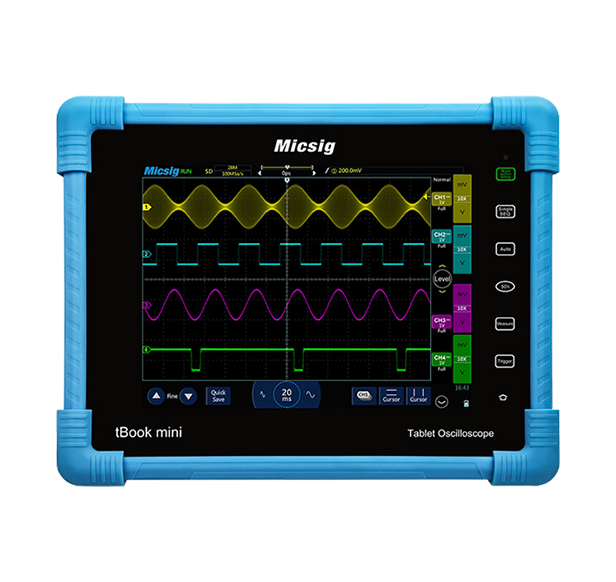

High quality 8 inches full touch capacitive screen &800*600pixels

Up to 28Mpts memory depth ,Zoom into a selected part of the captured waveforms to get more details.

A high waveform capture rate allows for better detection of glitch and runt signals. The higher capture rate allows more signal waveforms to be captured. By increasing the waveform capture rate, you see a more complete picture of what is going on with the signal.

A digital fluorescence display allows the user to see the distribution of the signal probability on the display. As the occurrence of the signal increases in that location, its brightness increases. Similarly, in regions of low occurrence, the signal will display more dimly.

Lower noise floor is less than 1mV help you to get more accurate measurements.

The on screen, soft keyboard allows for easy file naming and eliminates the need for using a knob to try and name files. This improves file naming efficiency up to 95%.

Key Specifications

ModelTO1102TO1152TO1104
Bandwidth100MHz150MHz100MHz
Analog channels224
Real-time sampling rate1GSa/S
Memory depth28Mpts
Max. waveform capture rate130,000 wfm/s
Bandwith limitation20MHz、High pass、Low pass
InterfacesWifi、LAN、HDMI、USB Host、USB Device、GND、DC Power
Display

8 inches TFT LCD,800*600 pixels display resolution,14*10 display range

Dimension280*180*50mm
