High Resolution Oscilloscope

MHO 3 Series

Bandwidth:250MHz-500MHz

Sampling Rate:3GSa/s

Memory Depth:360Mpts

Analog Channels:4

Display:14 inches, 1920*1200

High Resolution Oscilloscope

MHO 3 Series

Bandwidth:250MHz-500MHz

Sampling Rate:3GSa/s

Memory Depth:360Mpts

Analog Channels:4

Display:14 inches, 1920*1200

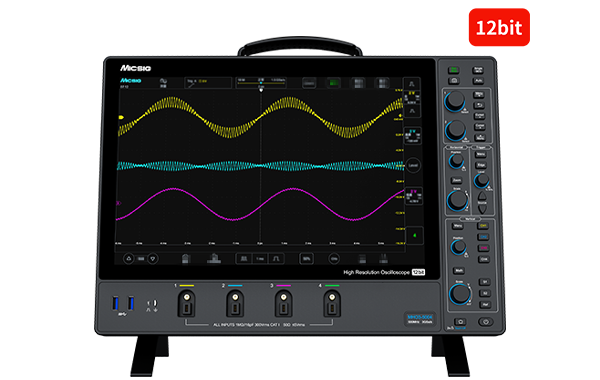

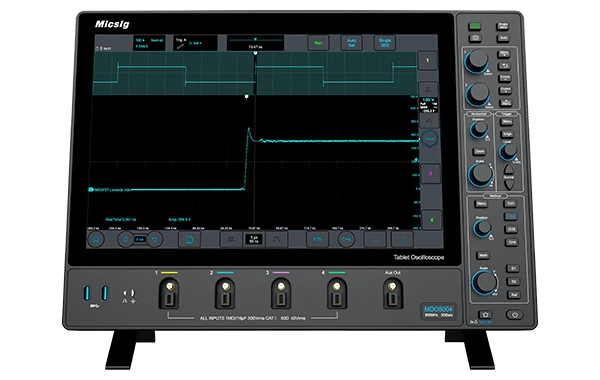

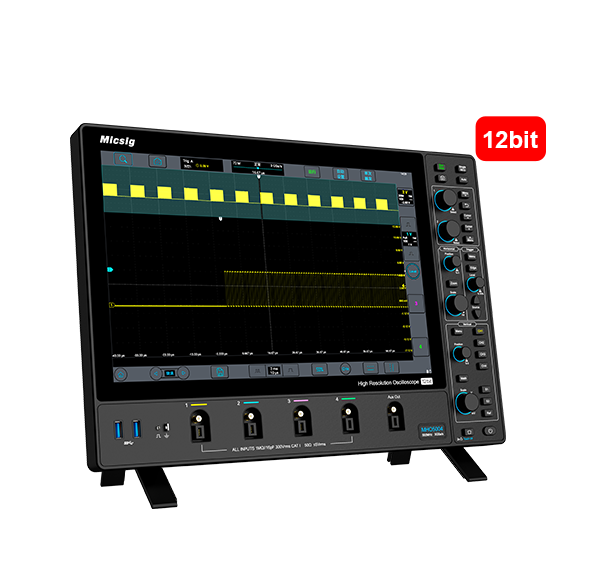

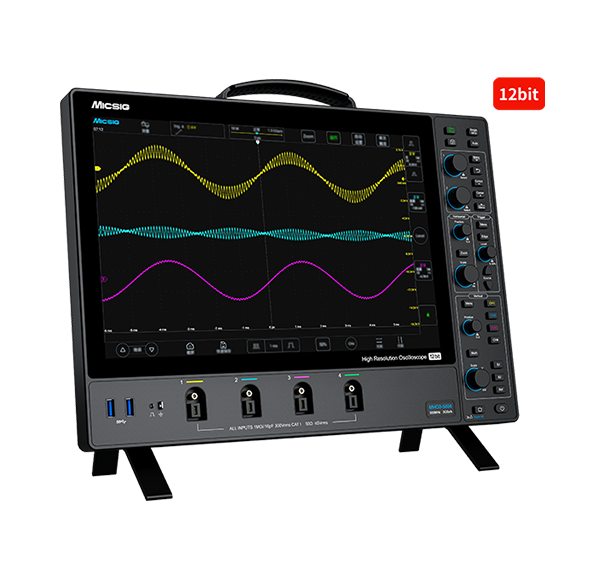

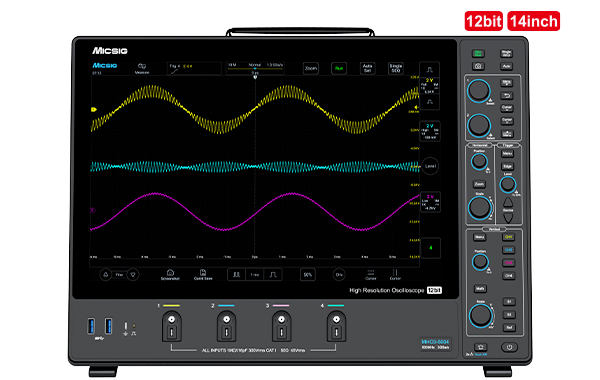

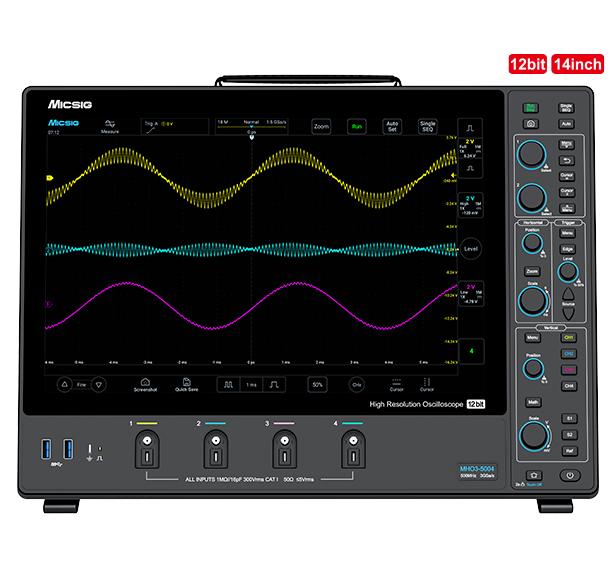

High Resolution Oscilloscope MHO 3 Series

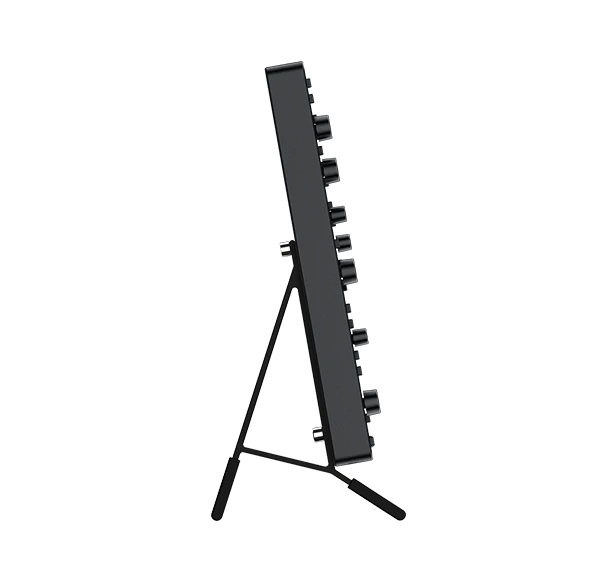

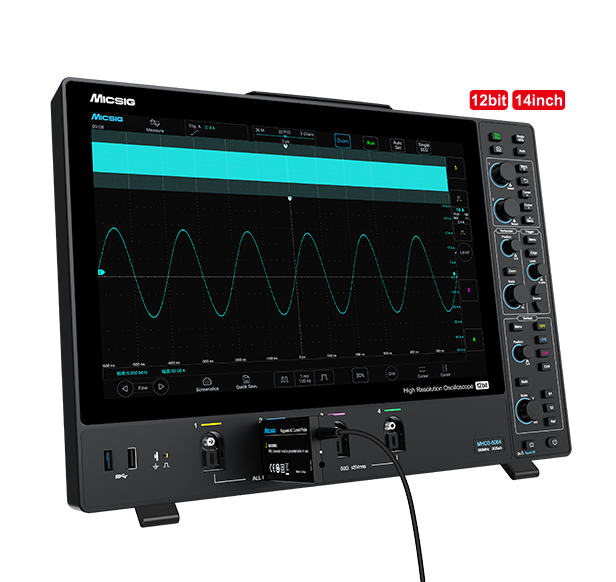

High Resolution Oscilloscope MHO 3 Series has 500MHz bandwidth, 3GSa/s sampling rate, 4 analog channels, 360Mpts memory depth and 12 bits vertical resolution; 3.58cm ultra-thin body support wall  /arm mounting; 14-inch integrated touch screen with resolution of 1920 x 1200 brings unmatched waveform display.

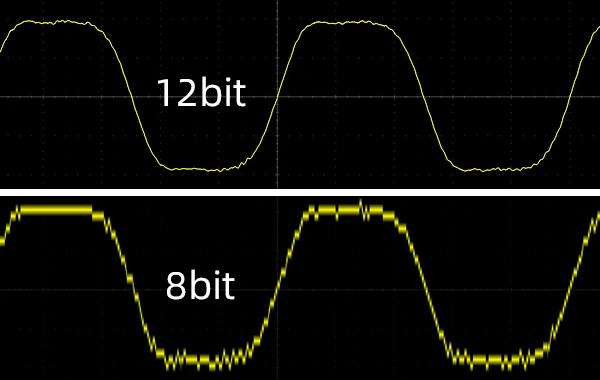

MHO 12-bit Vertical Resolution

12-bit Vertical Resolution

MHO 3 series has 12-bit high-resolution ADC with a quantization level of up to 4096, which is 16 times that of traditional 8-bit ADC, helping users to observe waveform details more comprehensively and clearly.

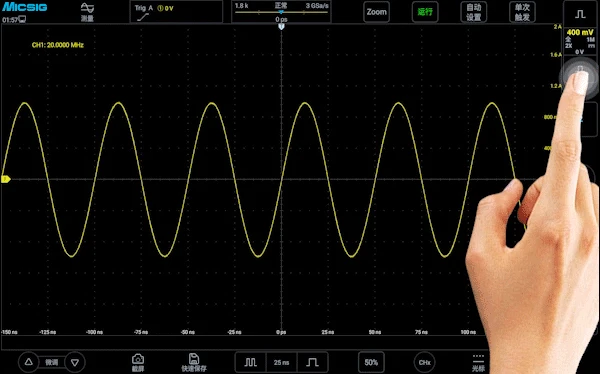

Most friendly UI

Most friendly UI

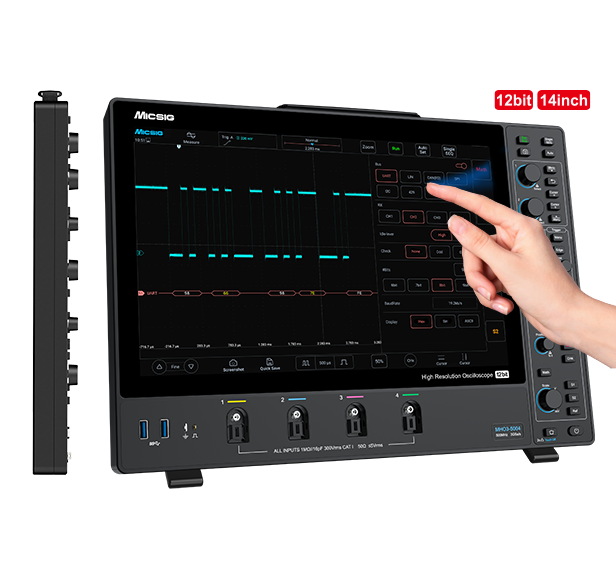

Equipped with instrument-dedicated SigTestUI™ operating system, and accumulation of 10 years of UI design experience, the MHO 3 series evolved to simplify all user interfaces, newer engineers can quickly learn to use in 5 minutes.

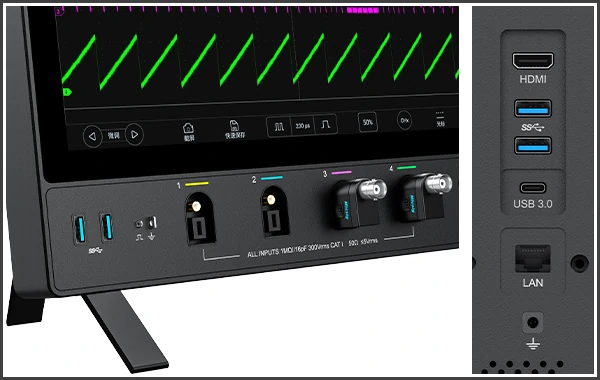

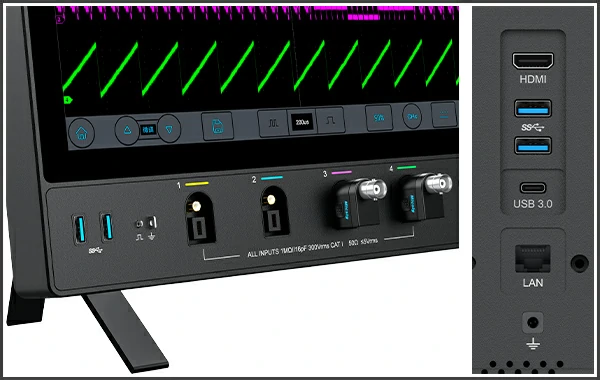

Complete connectivity

Complete connectivity

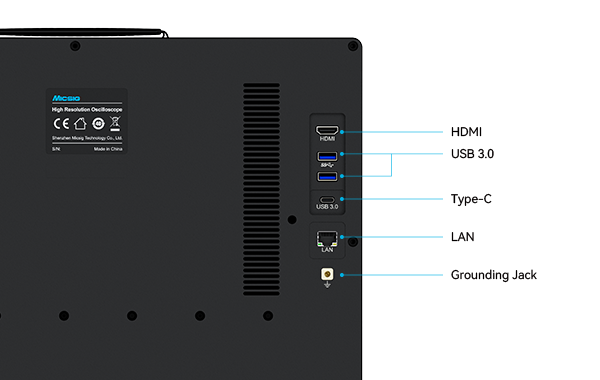

Original Mic-OPI™ probe interface, automatically identifies passive probe attenuation, one-click to proceed auto-calibration; standard with BNC adapter, also has USB 3.0 Host, USB Type-C, LAN, HDMI, Trigger out etc.

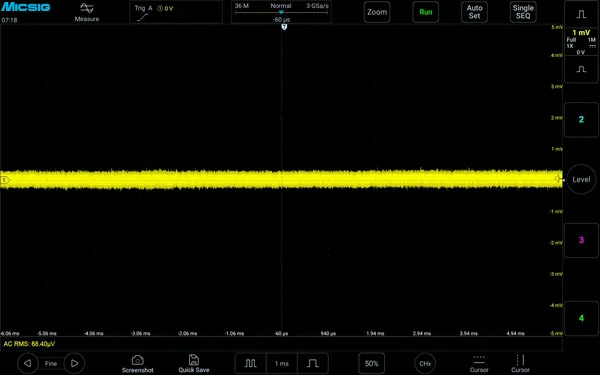

Low noise floor

Low noise floor

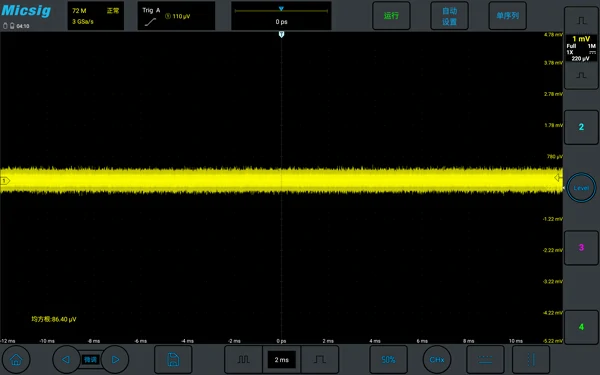

The noise of MHO 3 series is less than 80μVrms under 500MHz full bandwidth, allow engineers accurately capture weak but important signals during daily circuit debugging.

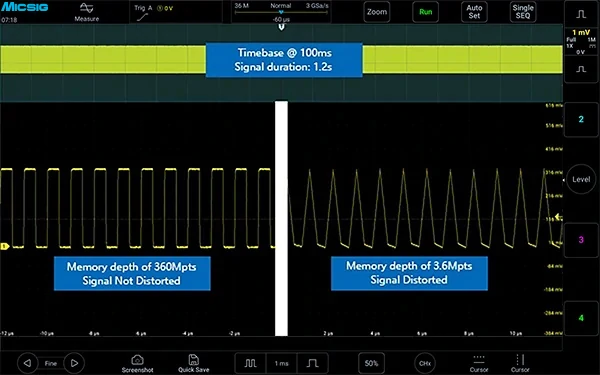

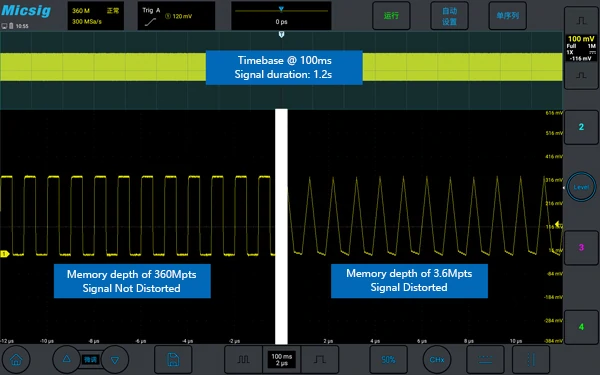

Deep memory and segmented storage acquisition

Deep memory and segmented storage acquisition

Up to 360Mpts memory depth delivers excellent signal fidelity, segmented storage divides the limited storage space into multiple small segments, and collects multiple trigger events into one storage space, effectively captures target signals multiple times over a long period of time and play back for further analysis.

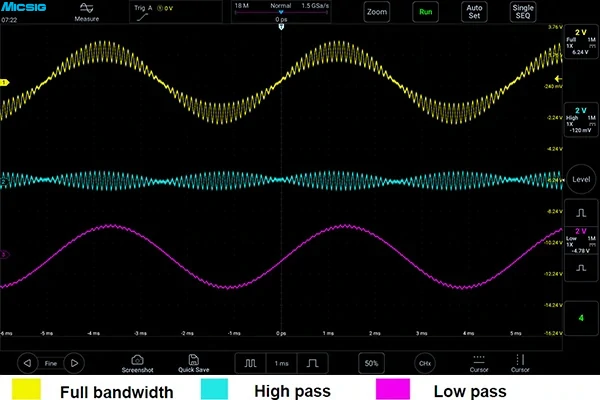

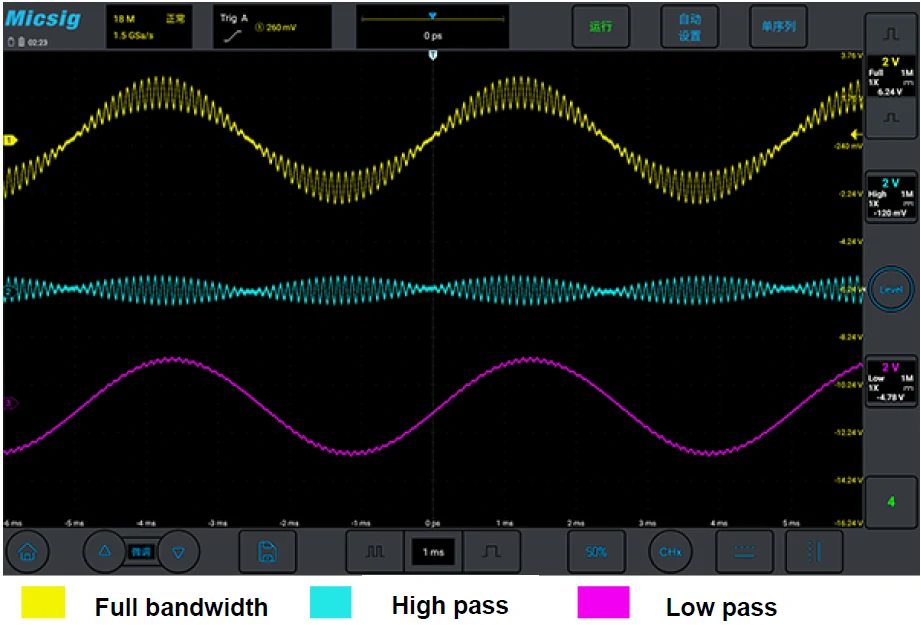

Hardware digital filter

Hardware digital filter

Hardware digital filtering can selectively pass or block signal components within a specific frequency range, very useful for analyzing specific frequency bands of a signal or observing changes in specific frequency components.

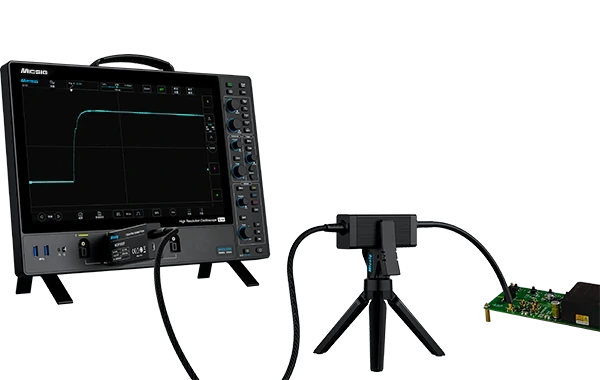

Comprehensive selection of probes

Comprehensive selection of probes

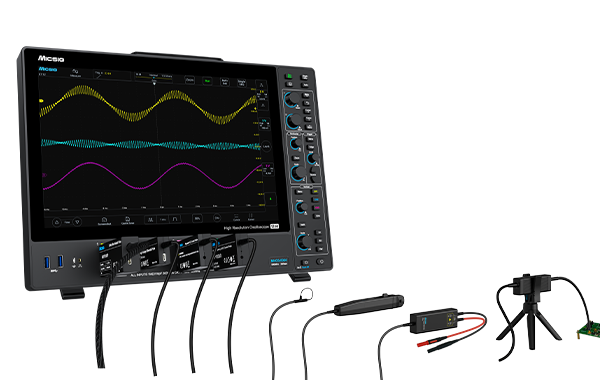

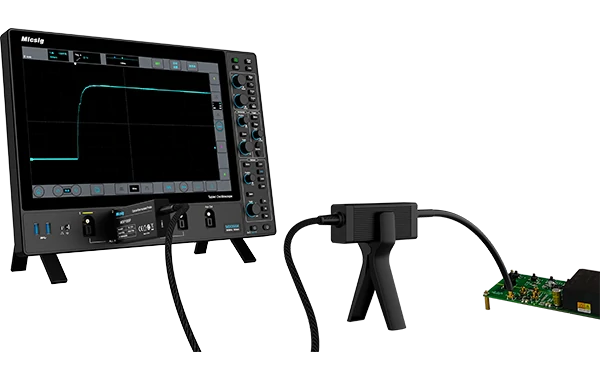

In addition to the standard passive probes, the MHO 3 series supports connection to all Micsig probes: optical-fiber isolated probe, high-voltage differential probes, and AC/DC current probes, such combination can maximize the performance of the probe and oscilloscope.

High Resolution Oscilloscope MHO 3 Series

High Resolution Oscilloscope MHO 3 Series has 500MHz bandwidth, 3GSa/s sampling rate, 4 analog channels, 360Mpts memory depth and 12 bits vertical resolution; 3.58cm ultra-thin body support VESA mounting; 14-inch integrated touch screen with resolution of 1920 x 1200 brings unmatched waveform display.


MHO 12-bit Vertical Resolution

12-bit Vertical Resolution

MHO 3 series has 12-bit high-resolution ADC with a quantization level of up to 4096, which is 16 times that of traditional 8-bit ADC, helping users to observe waveform details more comprehensively and clearly.


Most friendly UI

Most friendly UI

Equipped with instrument-dedicated SigTestUI™ operating system, and accumulation of 10 years of UI design experience, the MHO 3 series evolved to simplify all user interfaces, newer engineers can quickly learn to use in 5 minutes.


Complete connectivity

Complete connectivity

Original Mic-OPI™ probe interface, automatically identifies passive probe attenuation, one-click to proceed auto-calibration; standard with BNC adapter, also has USB 3.0 Host, USB Type-C, LAN, HDMI, Trigger out etc.


Low noise floor

Low noise floor

The noise of MHO 3 series is less than 80μVrms under 500MHz full bandwidth, allow engineers accurately capture weak but important signals during daily circuit debugging.


Deep memory and segmented storage acquisition

Deep memory and segmented storage acquisition

Up to 360Mpts memory depth delivers excellent signal fidelity, segmented storage divides the limited storage space into multiple small segments, and collects multiple trigger events into one storage space, effectively captures target signals multiple times over a long period of time and play back for further analysis.


Hardware digital filter

Hardware digital filter

Hardware digital filtering can selectively pass or block signal components within a specific frequency range, very useful for analyzing specific frequency bands of a signal or observing changes in specific frequency components.


Comprehensive selection of probes

Comprehensive selection of probes

In addition to the standard passive probes, the MHO 3 series supports connection to all Micsig probes: optical-fiber isolated probe, high-voltage differential probes, and AC/DC current probes, such combination can maximize the performance of the probe and oscilloscope.

Key Specifications

ModelMHO3-5004MHO3-3504MHO3-2504
Bandwidth500MHz350MHz250MHz
Rise Time≤0.7ns≤1ns≤1.4ns
Analog channels444
Real-time sampling rate3GSa/s3GSa/s3GSa/s
Memory Depth360Mpts360Mpts360Mpts
Vertical Resolution12bit
Max. waveform capture rate230,000wfms/s
Noise<80μVrms
InterfacesUSB 3.0 Host、USB Type-C、HDMI、Trigger out
Display14" full touch display, 1920 x 1200 resolution
Dimension / Net Weight400*280*35.8mm / 4.3kg

Key Specifications

ModelMHO3-5004MHO3-3504MHO3-2504
Bandwidth500MHz350MHz250MHz
Rise Time≤0.7ns≤1ns≤1.4ns
Analog channels444
Real-time sampling rate3GSa/s3GSa/s3GSa/s
Memory Depth360Mpts360Mpts360Mpts
Vertical Resolution12bit
Max. waveform capture rate230,000wfms/s
Noise<80μVrms
InterfacesUSB 3.0 Host、USB Type-C、HDMI、Trigger out
Display14" full touch display, 1920 x 1200 resolution
Dimension / Net Weight400*280*35.8mm / 4.3kg
