GEN 4 Tablet Oscilloscope

STO Series

Bandwidth:100MHz-200MHz

Sampling Rate:1GSa/s

Memory Depth:70Mpts

Analog Channels:2/4

Display:8 inches, 800*600

GEN 4 Tablet Oscilloscope

STO Series

Bandwidth:100MHz-200MHz

Sampling Rate:1GSa/s

Memory Depth:70Mpts

Analog Channels:2/4

Display:8 inches, 800*600

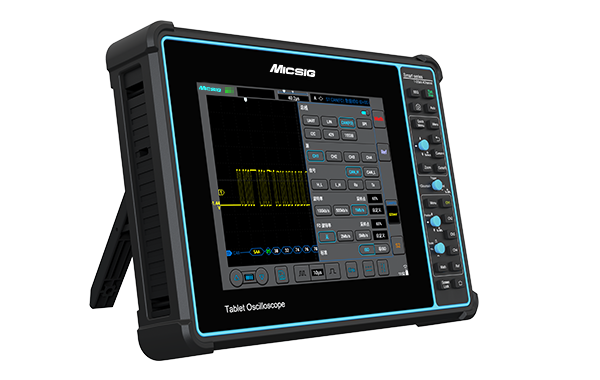

8 inch oscilloscope

The Micsig STO series oscilloscopes feature an 8-inch capacitive touch screen with a resolution of 800x600, offering a maximum bandwidth of 200MHz, a sampling rate of 1GSa/s, and a memory depth of up to 70Mpts. These oscilloscopes support up to 4 analog channels and boast a waveform capture rate of 130,000 waveforms per second. They are capable of serial bus triggering and decoding, and are equipped with a wide array of measurement functions and advanced mathematical operation capabilities. The series supports three operation modes: full touch control, full control panel operation, and a hybrid of touch and control panel operation. Integrated with Micsig's unique touch algorithm patent technology and a user-friendly operating system interface, the STO series delivers an unparalleled user experience.

Ubiquitous Measurement, Unmatched Reliability

Ubiquitous Measurement, Unmatched Reliability

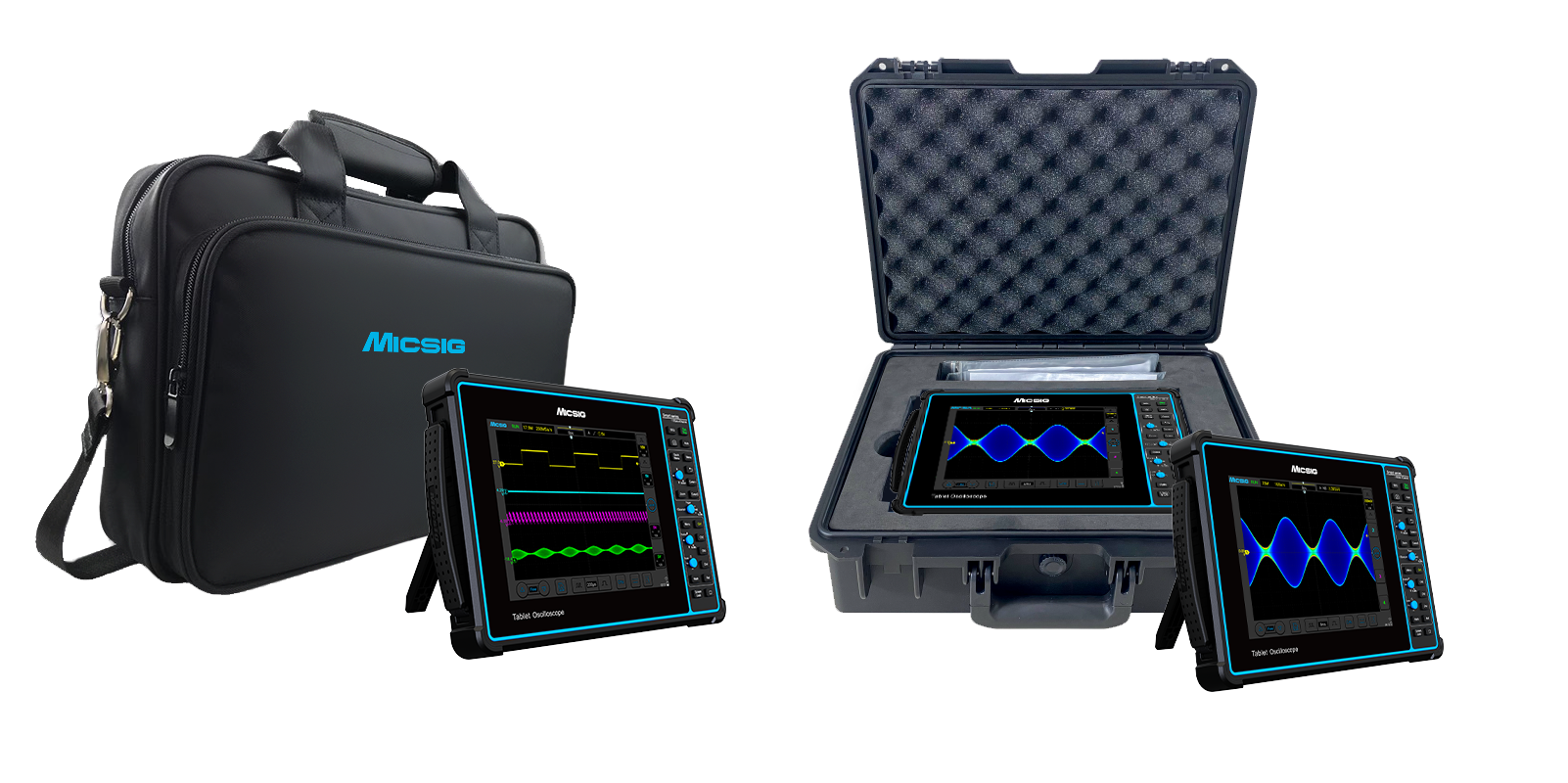

Compact in size and easy to carry.


With power lock support for added peace of mind during transportation.


Equipped with a 7500mAh lithium battery, offering a maximum working time of up to 5 hours.

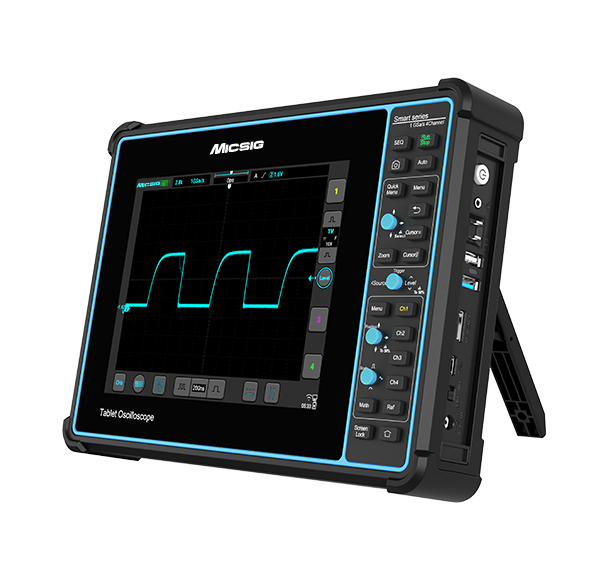

Pioneering Sensory Synchronized Operation

Pioneering Sensory Synchronized Operation

Whether it's moving or zooming waveforms, the operation is synchronized with sensory feedback, making the oscilloscope easier to use.


The oscilloscope's horizontal and vertical systems can be set independently and automatically, making it more flexible and convenient.

Deep Storage

Deep Storage

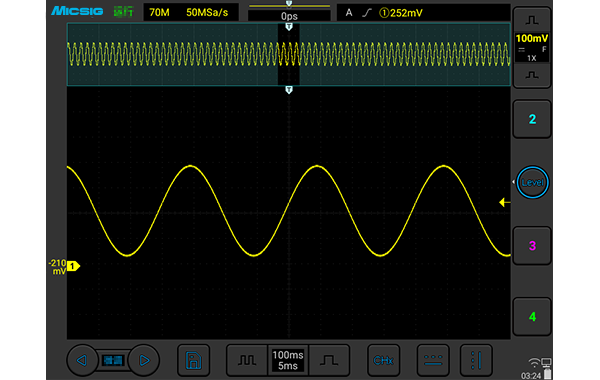

The oscilloscope boasts a storage depth of up to 70Mpts, coupled with Zoom technology, allowing for the perfect display of both global and detailed waveforms.

High Waveform Capture Rate

High Waveform Capture Rate

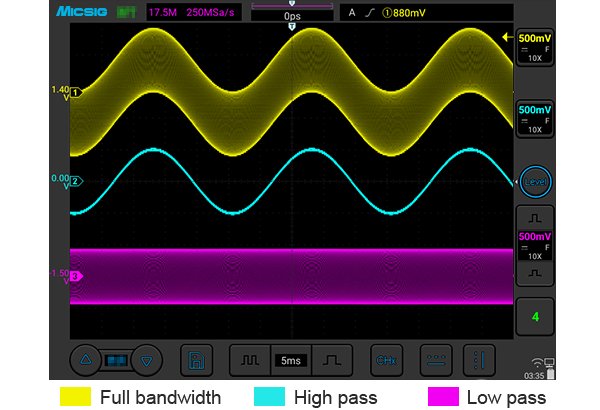

The oscilloscope boasts a waveform capture rate of up to 130,000 waveforms per second, effortlessly capturing abnormal waveforms.

Multiple Bus Decoding

Multiple Bus Decoding

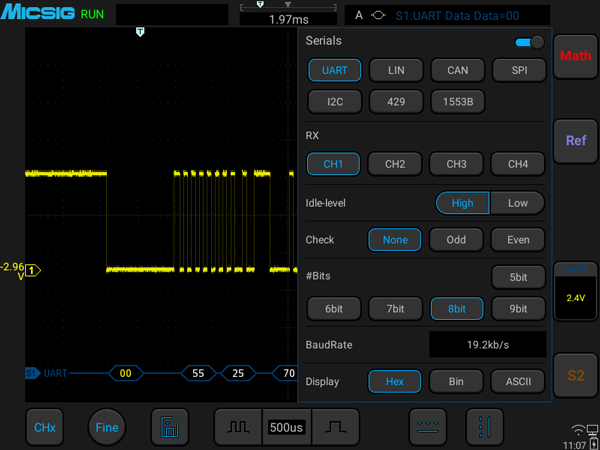

The oscilloscope supports decoding for over six serial buses including RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I2C, etc., and is equipped with a TXT decode text mode, allowing for the export of decoded data in CSV format to ensure no data is missed.

Convenient Automatic Measurement Features

Convenient Automatic Measurement Features

The oscilloscope supports 31 automatic measurement functions, allowing for quick selection and one-click clearance.


Support for full measurement display, with waveform measurements clearly visible at a glance.

Hardware Digital Filtering

Hardware Digital Filtering

The oscilloscope supports hardware digital filtering to eliminate interference and noise.

Multiple Remote Control Methods

Multiple Remote Control Methods

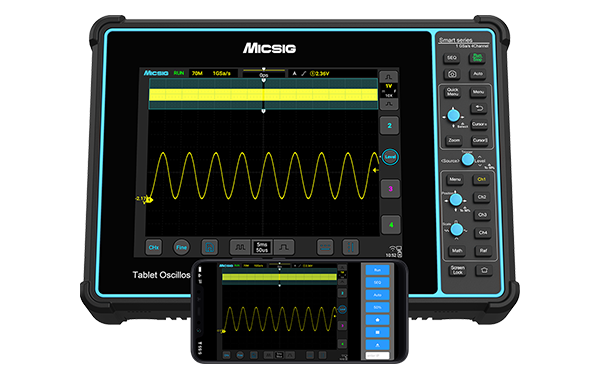

The oscilloscope supports SCPI (Standard Commands for Programmable Instruments) for programmable instrument standard commands. It also supports remote control of the oscilloscope via mobile apps (Android, iOS) and PC software.

32GB Large Capacity Storage

32GB Large Capacity Storage

Supports screenshot capture, video recording, and waveform data saving.


Built-in 32GB large capacity storage allows users to access a vast array of files such as images and videos from the oscilloscope via PC and mobile devices.

8 inch oscilloscope


The Micsig STO series oscilloscopes feature an 8-inch capacitive touch screen with a resolution of 800x600, offering a maximum bandwidth of 200MHz, a sampling rate of 1GSa/s, and a memory depth of up to 70Mpts. These oscilloscopes support up to 4 analog channels and boast a waveform capture rate of 130,000 waveforms per second. They are capable of serial bus triggering and decoding, and are equipped with a wide array of measurement functions and advanced mathematical operation capabilities. The series supports three operation modes: full touch control, full control panel operation, and a hybrid of touch and control panel operation. Integrated with Micsig's unique touch algorithm patent technology and a user-friendly operating system interface, the STO series delivers an unparalleled user experience.


Ubiquitous Measurement, Unmatched Reliability


Ubiquitous Measurement, Unmatched Reliability

Compact in size and easy to carry. With power lock support for added peace of mind during transportation.

Equipped with a 7500mAh lithium battery, offering a maximum working time of up to 5 hours.


Pioneering Sensory Synchronized Operation


Pioneering Sensory Synchronized Operation

Whether it's moving or zooming waveforms, the operation is synchronized with sensory feedback, making the oscilloscope easier to use.

The oscilloscope's horizontal and vertical systems can be set independently and automatically, making it more flexible and convenient.


Deep Storage


Deep Storage

The oscilloscope boasts a storage depth of up to 70Mpts, coupled with Zoom technology, allowing for the perfect display of both global and detailed waveforms.


High Waveform Capture Rate


High Waveform Capture Rate

The oscilloscope boasts a waveform capture rate of up to 130,000 waveforms per second, effortlessly capturing abnormal waveforms.


Multiple Bus Decoding


Multiple Bus Decoding

The oscilloscope supports decoding for over six serial buses including RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I2C, etc., and is equipped with a TXT decode text mode, allowing for the export of decoded data in CSV format to ensure no data is missed.


Convenient Automatic Measurement Features


Convenient Automatic Measurement Features

The oscilloscope supports 31 automatic measurement functions, allowing for quick selection and one-click clearance.

Support for full measurement display, with waveform measurements clearly visible at a glance.


Hardware Digital Filtering


Hardware Digital Filtering

The oscilloscope supports hardware digital filtering to eliminate interference and noise.


Multiple Remote Control Methods


Multiple Remote Control Methods

The oscilloscope supports SCPI (Standard Commands for Programmable Instruments) for programmable instrument standard commands. It also supports remote control of the oscilloscope via mobile apps (Android, iOS) and PC software.


32GB Large Capacity Storage


32GB Large Capacity Storage

Supports screenshot capture, video recording, and waveform data saving.

Built-in 32GB large capacity storage allows users to access a vast array of files such as images and videos from the oscilloscope via PC and mobile devices.

Key Specifications

ModelSTO1004STO2002
Bandwidth100MHz200MHz
Analog channels42
Rise Time≤3.5ns≤1.75ns
Real-time sampling rate1GSa/s1GSa/s
Memory depth70Mpts70Mpts
Max. waveform capture rate130,000 wfms/s
Vertical Resolution8bit
Bandwidth limitation20MHz, High Pass, Low Pass
InterfacesWi-Fi、USB 3.0/2.0 Host、USB Type-C、HDMI、Trigger out
Storage32G
DisplayIndustrial 8 inch TFT-LCD (800*600),14*10 grids
Battery7.4V,7500mAh
Dimension / Net Weight265*192*50mm/1.9kg (with battery)

Key Specifications

ModelSTO1004STO2002
Bandwidth100MHz200MHz
Analog channels42
Rise Time≤3.5ns≤1.75ns
Real-time sampling rate1GSa/s1GSa/s
Memory depth70Mpts70Mpts
Max. waveform capture rate130,000 wfms/s
Vertical Resolution8bit
Bandwidth limitation20MHz, High Pass, Low Pass
InterfacesWi-Fi、USB 3.0/2.0 Host、USB Type-C、HDMI、Trigger out
Storage32G
DisplayIndustrial 8 inch TFT-LCD (800*600),14*10 grids
Battery7.4V,7500mAh
Dimension / Net Weight265*192*50mm/1.9kg (with battery)
