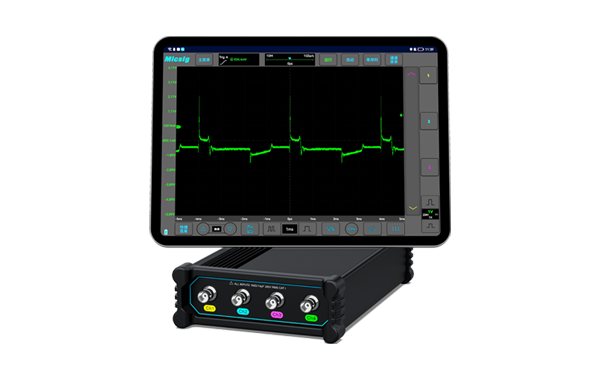

Automotive Oscilloscope

VATO Series

Bandwidth:200MHz

Sampling Rate:1GSa/s

Memory Depth:50Mpts

Analog Channels:4

Automotive Oscilloscope

VATO Series

Bandwidth:200MHz

Sampling Rate:1GSa/s

Memory Depth:50Mpts

Analog Channels:4

Automotive Oscilloscope VATO Series

Ultimate Portability


Install and run the oscilloscope Apk on any Android devices: smartphone, tablet, or Android PC, all signals on your fingertip.

Automotive Oscilloscope VATO Series

Intuitive Operation


Equipped with a operating system designed for mobile devices, offering extremely simple and reliable performance.
Automotive Oscilloscope VATO Series

Large Battery Powered


7500mAh lithium battery (optional) enables up to 24-hour field testing, power-off lock make sure secured transport.
Automotive Oscilloscope VATO Series

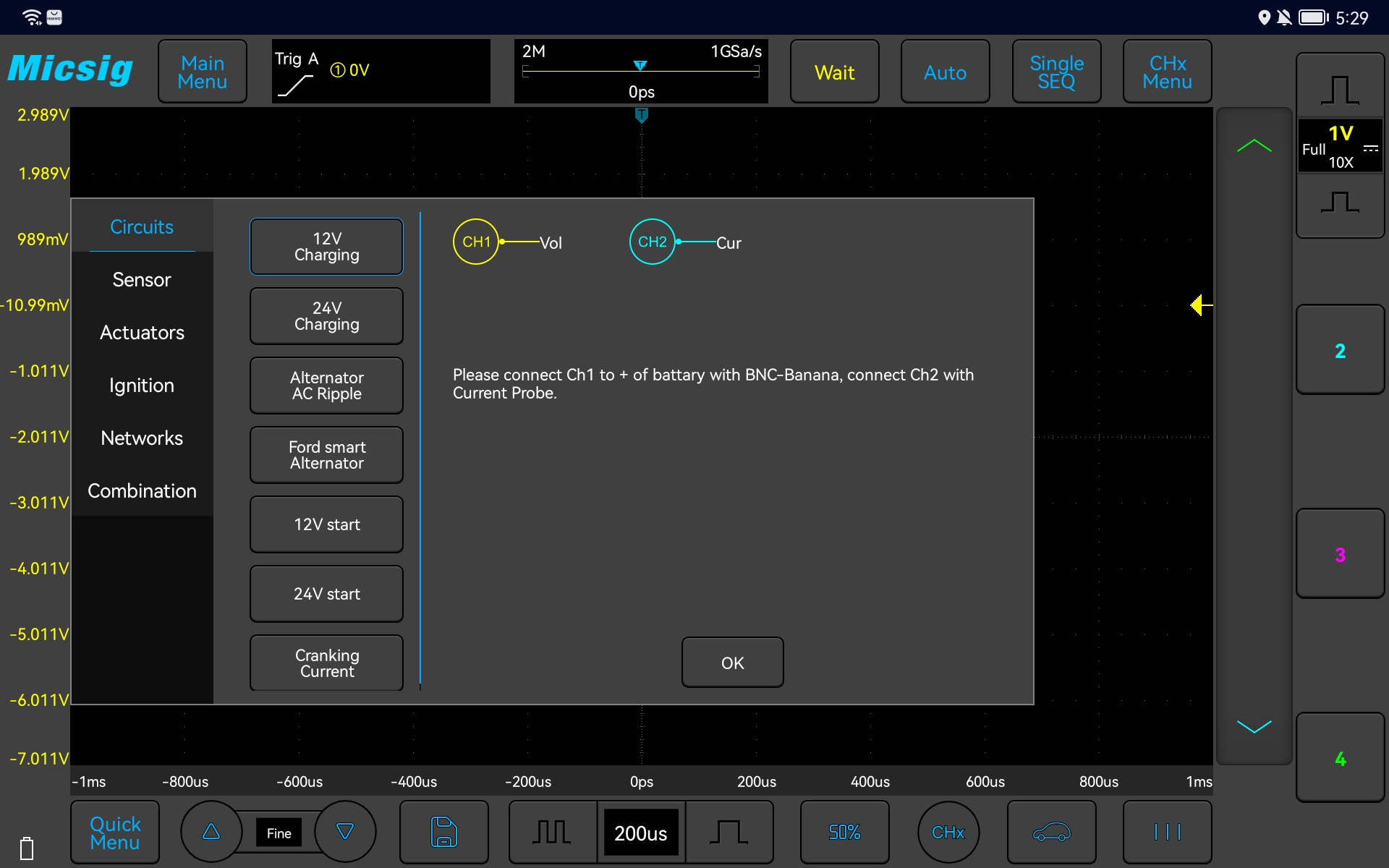

Circuits

Charging/Starting System Testing, including 12V / 24V charging/starting circuit, charging ripples, and other related tests.

Automotive Oscilloscope VATO Series

Sensor


Various automotive sensor tests:

ABS, throttle pedals, intake pressure,

air flow meter, crankshaft, camshaft, knock,

distributor, oxygen sensor...


Automotive Oscilloscope VATO Series

Actuators


Support various actuator tests:

fuel injector voltage and current, fan control signals,

variable valve timing, carbon canister solenoid valve,

EGR solenoid valve, etc.


Automotive Oscilloscope VATO Series

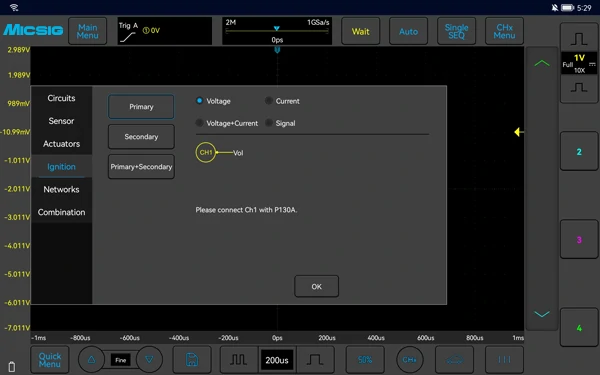

Ignitions


Including primary ignition, secondary ignition,

primary + secondary ignition.


Automotive Oscilloscope VATO Series

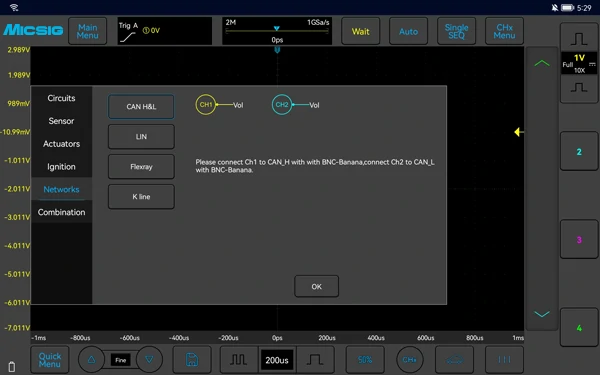

Networks


Network (Communication) tests, including CAN Low/High, LIN, FlexRay, and K-line.


Automotive Oscilloscope VATO Series

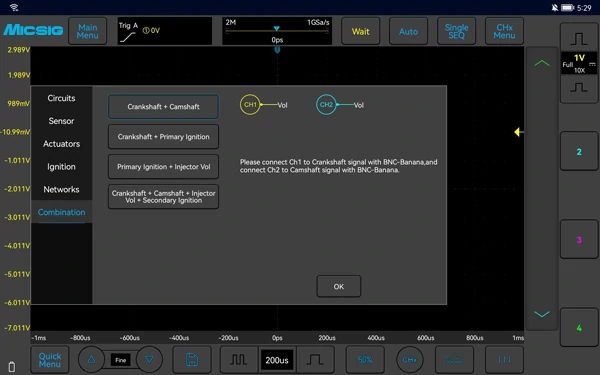

Combination Tests


Support combination test when multiple channels are connected:

such as crankshaft + camshaft, primary ignition + fuel injector voltage...


Automotive Oscilloscope VATO Series

Standard Accessories


Passive probes (10:1), alligator clips, pin probes, BNC - banana cables.

Automotive Oscilloscope VATO Series

Ultimate Portability

Install and run the oscilloscope Apk on any Android devices: smartphone, tablet, or Android PC, all signals on your fingertip.


AVTO虚拟示波器操作系统

Intuitive Operation

Equipped with a operating system designed for mobile devices, offering extremely simple and reliable performance.


Automotive Oscilloscope VATO Series

Large Battery Powered

7500mAh lithium battery (optional) enables up to 24-hour field testing, power-off lock make sure secured transport.


Automotive Oscilloscope VATO Series

Circuits

Charging/Starting System Testing, including 12V / 24V charging/starting circuit, charging ripples, and other related tests.


Automotive Oscilloscope VATO Series

Sensor

Various automotive sensor tests:

ABS, throttle pedals, intake pressure,

air flow meter, crankshaft, camshaft, knock,

distributor, oxygen sensor...


Automotive Oscilloscope VATO Series

Actuators

Support various actuator tests:

fuel injector voltage and current, fan control signals,

variable valve timing, carbon canister solenoid valve,

EGR solenoid valve, etc.


Automotive Oscilloscope VATO Series

Ignitions

Including primary ignition, secondary ignition, primary + secondary ignition.


Automotive Oscilloscope VATO Series

Networks

Network (Communication) tests, including CAN Low/High, LIN, FlexRay, and K-line.


Automotive Oscilloscope VATO Series

Combination Tests

Support combination test when multiple channels are connected:

such as crankshaft + camshaft, primary ignition + fuel injector voltage...


Automotive Oscilloscope VATO Series

Standard Accessories

Passive probes (10:1), alligator clips, pin probes, BNC - banana cables.

Key Specifications

ModelVATO2004
Bandwidth200MHz
Analog channels4
Rise Time≤1.8ns
Real-time sampling rate1GSa/s
Memory Depth50Mpts
Vertical Resolution 8bit
DC Gain Accuracy≤ 2%
Input Impedance1MΩ±1% || 14pF
Power supplyDC 12V
Support Test

Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, LIN, Flexray, K line),

 Combination Tests

Battery ( Optional )7.4V、7500mAh Lithium-ion battery
Dimensions140*215*52mm
Net Weight640g

Key Specifications

ModelVATO2004
Bandwidth200MHz
Analog channels4
Rise Time≤1.8ns
Real-time sampling rate1GSa/s
Memory Depth50Mpts
Vertical Resolution 8bit
DC Gain Accuracy≤ 2%
Input Impedance1MΩ±1% || 14pF
Power supplyDC 12V
Support Test

Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, LIN, Flexray, K line),

 Combination Tests

Battery ( Optional )7.4V、7500mAh Lithium-ion battery
Dimensions140*215*52mm
Net Weight640g
