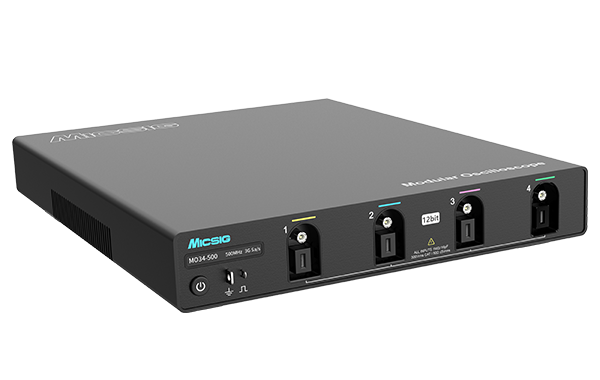

In the era of rapidly advancing power electronics technology, engineers have increasingly high expectations for the precision and flexibility of test and measurement tools. Micsig, as a seasoned expert in the field of power electronics testing, has meticulously developed the MO3 series of high-resolution modular oscilloscopes. This oscilloscope is specifically designed for flexible configuration and compact space, bringing a new breakthrough to the field of oscilloscope testing with its outstanding performance and an ultra-thin body of just 3.6 centimeters.

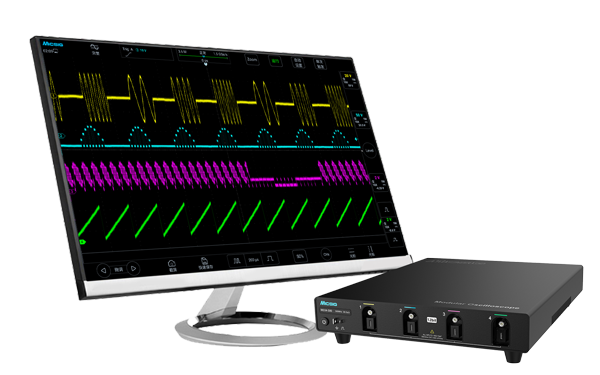

　　The MO3 series high-resolution modular oscilloscopes revolutionize the limitations of traditional virtual oscilloscopes by innovatively incorporating HDMI interfaces, LAN ports, and SFP+ optical ports. The HDMI interface supports seamless connection with various display devices, allowing for direct interaction with the oscilloscope via a USB-connected mouse or keyboard, providing the most intuitive operational experience. Additionally, remote control and data acquisition and analysis can be easily achieved through the LAN port and SFP+ optical port.

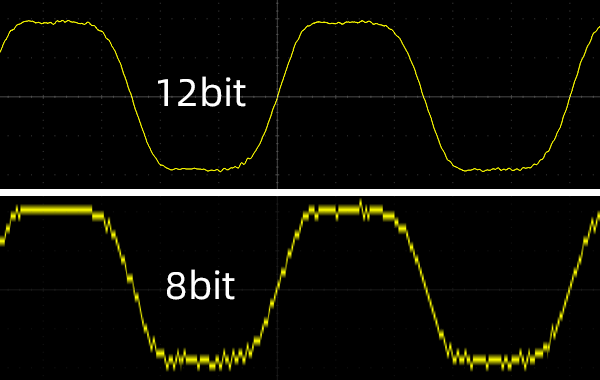

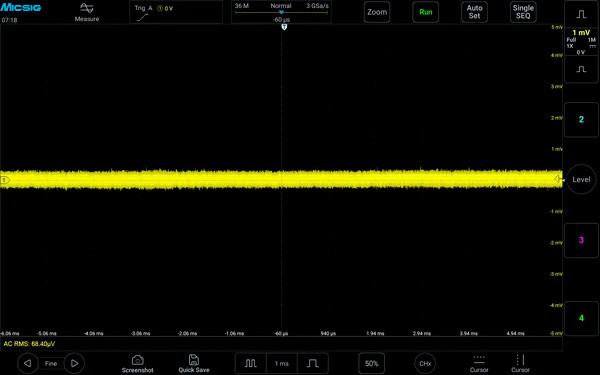

　　In terms of performance, the MO3 series oscilloscopes demonstrate exceptional capabilities. With a bandwidth of up to 500MHz, a sampling rate of 3GSa/s, and a storage depth of 360Mpts, they are equipped with 4 analog channels. Users can easily expand more channels through matrix connections. Backed by a high-precision 12-bit high-speed ADC, it ensures clear presentation of waveform details, providing users with high-precision signal analysis capabilities. At the same time, at the full bandwidth of 500MHz, the MO3 series oscilloscopes can still maintain an extremely low base noise of less than 80μVrms, ensuring that users can accurately capture weak and important signals during circuit debugging and signal analysis.

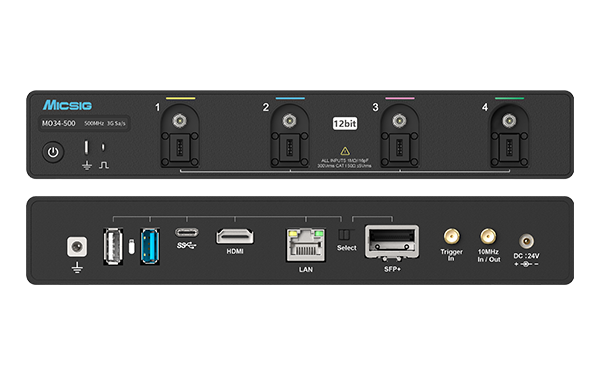

　　In terms of connectivity, the MO3 series oscilloscopes also excel. The unique Mic-OPI™ probe interface can automatically recognize the attenuation ratio of the probe, achieving one-click automatic compensation for passive probes, and comes standard with a BNC adapter, compatible with all BNC interface probes on the market. In addition, it is equipped with a rich array of interfaces such as USB 3.0/2.0 Host, Type-C, LAN, SFP+, HDMI, Trigger in, 10MHz clock in/out, meeting users' diverse needs. Whether it's direct connection through the HDMI interface or remote connection with a computer through LAN or USB ports, users can enjoy a convenient operational experience. Especially with the equipped SFP+ optical port, it provides a vast space for integrated secondary development and flexible configuration with a data transfer rate of up to 10Gbps.

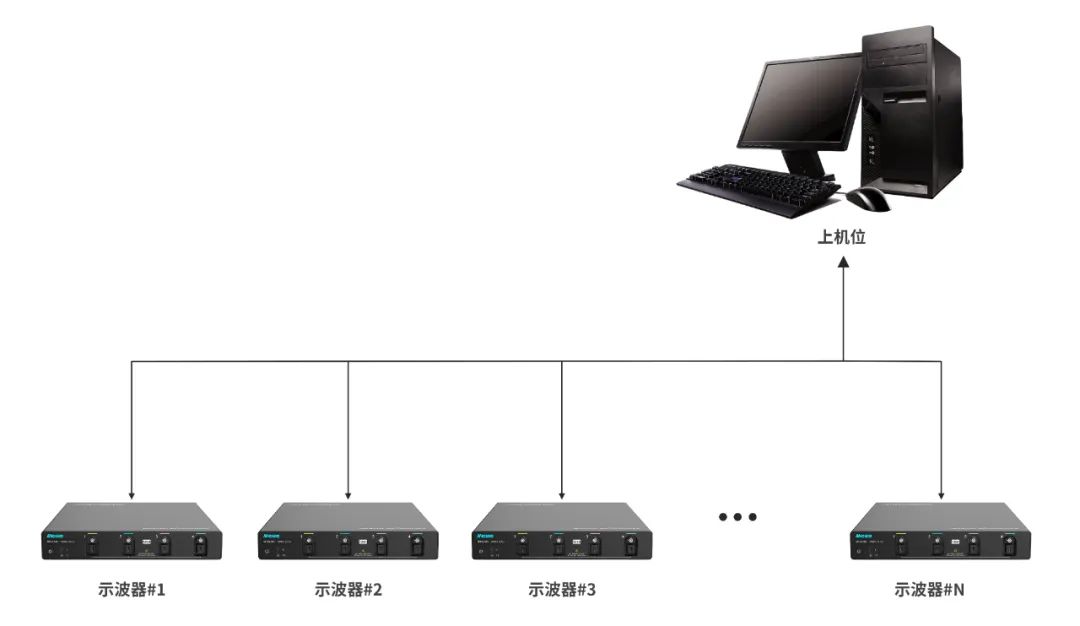

　　It is worth mentioning that the MO3 series oscilloscopes also feature a compact and slim body design. With a thickness of 3.6 centimeters, it can be easily placed in confined spaces, suitable for integrated test measurement systems in more complex environments. It supports rack mounting, allowing multiple machines to work synchronously in a matrix, thereby expanding the number of analog channels.

　　Micsig's MO3 series high-resolution modular oscilloscopes, with their outstanding performance, flexible connection methods, and rich expandability, are not only a powerful tool for power electronics testing but also an accurate and efficient test measurement solution for fields such as scientific research, communications, medical, and industrial automation.

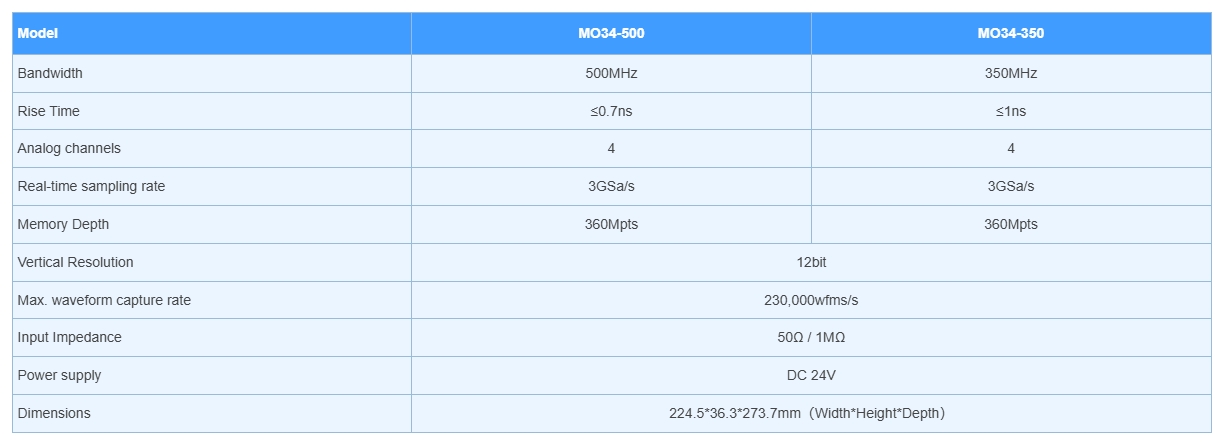

　　Product Parameter Table

　　About Micsig

　　Shenzhen Micsig Technology Co., Ltd. is a leading industry technology company specializing in the research, development, manufacturing, and solution provision of signal testing and measurement equipment, a national high-tech enterprise, and a specialized, refined, and innovative enterprise. Micsig is committed to the research and development of cutting-edge technologies in the field of signal testing and measurement, especially in the field of oscilloscopes and oscilloscope probes, where we have always been at the forefront of innovation, being the pioneer of flat panel oscilloscopes and the leader in optically isolated probes.

　　We adhere to our mission and vision, starting from a professional standpoint, continuously breaking through technical boundaries, and helping every worker in the electronics field and their organizations to be more efficient and outstanding.

　　Every one of our innovations aims to break through the technical boundaries of products and explore new possibilities for industry trends.

　　The company's main products include a series of oscilloscopes: high-resolution oscilloscopes, modular oscilloscopes, flat panel oscilloscopes, automotive diagnostic oscilloscopes, split-type oscilloscopes, and a series of oscilloscope probes: optically isolated probes, high-voltage differential probes, flexible current probes (Rogowski coils), high-frequency AC/DC current probes, low-frequency AC/DC current probes, etc.
