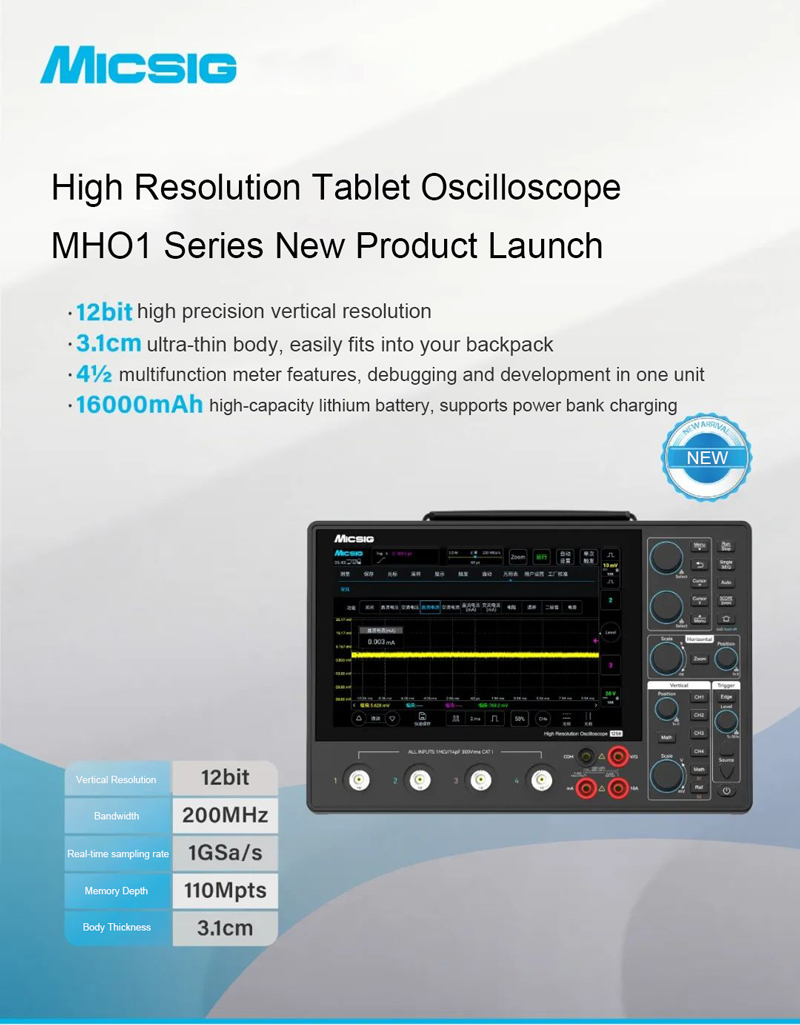

Portable and efficient test instruments play a crucial role in a wide range of fields such as after-sales technical support for enterprises, logistics support, automotive and home appliance repair, and elevator maintenance. As the pioneer of tablet oscilloscopes, Micsig, with its deep industry accumulation and spirit of innovation, is proud to introduce today the MHO1 series - a 12-bit high-resolution oscilloscope that combines thinness and high performance, setting a new benchmark for portable oscilloscopes!

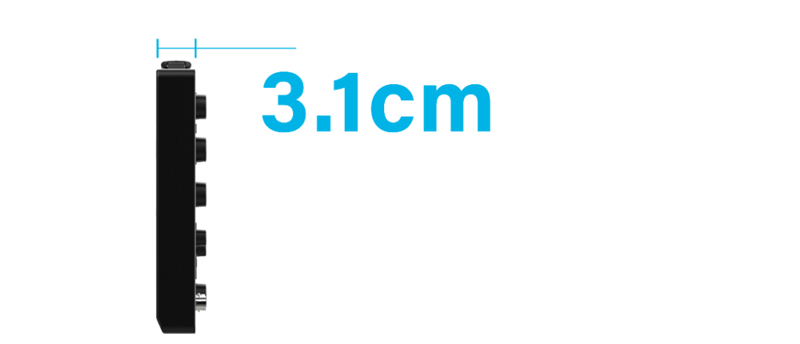

　　The MHO1 series oscilloscopes, equipped with a built-in 12-bit high-precision ADC, 1GSa/s sampling rate, 110Mpts of ultra-large storage depth, and up to 200MHz analog bandwidth, ensure that every measurement is accurate and provides a solid foundation for in-depth signal analysis. In terms of design, the MHO1 series has achieved a groundbreaking ultra-thin body of only 3.1 centimeters, which can be easily placed in a backpack for efficient testing anytime, anywhere.

　　Despite its ultra-thin body, the MHO1 series features a soft rubber protective design, which not only offers a comfortable grip but also excellent protective capabilities. Equipped with a 16000mAh large-capacity long-life lithium-ion battery, it can withstand more than 1000 charge and discharge cycles, allowing continuous operation for up to 4 hours without an external power source. It also supports charging via power banks, completely eliminating the anxiety of battery life and making testing work more worry-free.

　　Visually, the MHO1 series oscilloscopes are equipped with an 8-inch high-definition anti-glare touch screen with a resolution of up to 1280*800, providing a clear and delicate image and responsive touch, bringing users an ultimate operational experience.

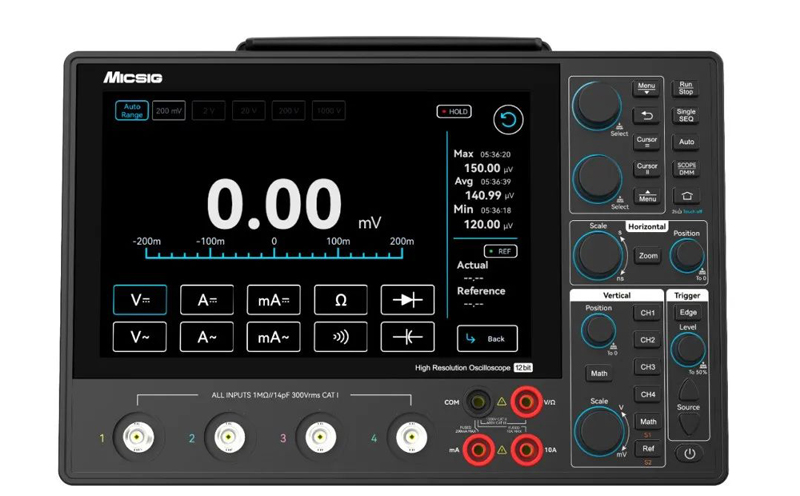

　　The MHO1 series oscilloscopes also innovatively integrate a 4½-digit multimeter function, supporting a variety of parameters such as voltage, current, resistance, continuity test, diode detection, and capacitance measurement. There is no need to carry an additional multimeter, meeting a variety of testing needs. Moreover, the system supports simultaneous operation of the oscilloscope and multimeter with seamless switching, greatly improving on-site work efficiency and convenience.

　　On the software side, the MHO1 series oscilloscopes are equipped with the SigtestUI professional testing system, which is powerful and comprehensive. It supports hardware high-pass and low-pass filtering to effectively filter out interference signals and improve measurement accuracy. It supports remote control via mobile APP, PC, and SCPI command set, giving the device higher flexibility and programmability. It also has built-in advanced mathematical operations and FFT (Fast Fourier Transform) functions, providing users with powerful signal analysis tools. It also supports decoding of multiple serial protocols, widely used in serial communication and control system testing and analysis, meeting a variety of testing needs.

　　In terms of connectivity, the MHO1 series oscilloscopes provide various interfaces such as USB3.0, Type-C, LAN, and HDMI, meeting users' diverse connection needs and enhancing the flexibility and convenience of testing work.

　　Furthermore, thanks to Micsig's rich product line of oscilloscope probes, the MHO1 series oscilloscopes can perfectly match with the MOIP series of optically isolated probes, high-voltage differential probes, Rogowski coils, and high-frequency AC/DC current probes, flexibly dealing with various complex circuits and electronic testing scenarios, providing comprehensive and reliable testing solutions for circuit development and debugging.

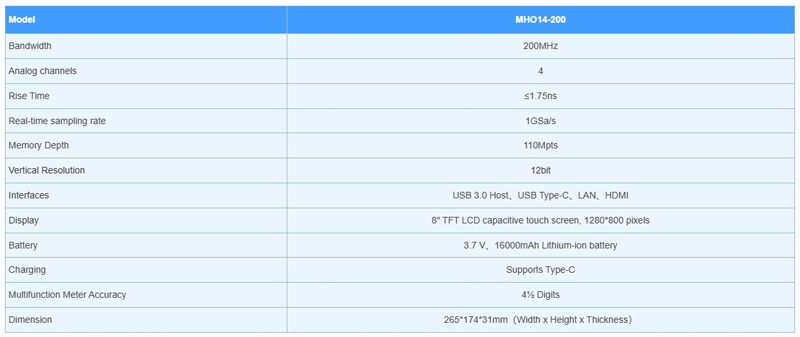

　　 Product Parameter Table

　　The MHO1 series oscilloscopes are the result of Micsig's relentless pursuit of technological innovation and a deep understanding of user needs. It will bring unprecedented convenience and efficiency to your testing work!

　　 About Micsig

　　Shenzhen Micsig Technology Co., Ltd. is a leading technology company in the field of signal testing and measurement equipment research and development, manufacturing, and solution provision, a national high-tech enterprise, and a specialized and innovative enterprise. Micsig is committed to the research and development of cutting-edge technologies in the field of signal testing and measurement, especially in the field of oscilloscopes and oscilloscope probes, where we have always been at the forefront of innovation, as the pioneer of tablet oscilloscopes and the leader in optically isolated probes.

　　We adhere to our mission and vision, starting from a professional standpoint, continuously breaking through technical boundaries, and helping every electronic field worker and their organizations to be more efficient and excellent.

　　Every one of our innovations aims to break through the technical boundaries of products and explore new possibilities for industry trends.

　　The company's main products include oscilloscope series: high-resolution oscilloscopes, modular oscilloscopes, tablet oscilloscopes, automotive diagnostic oscilloscopes, split-type oscilloscopes, and oscilloscope probe series:Optical-fiber Isolated Probes, high-voltage differential probes, Rogowski AC Current Probe, high-frequency AC/DC current probes, and low-frequency AC/DC current probes, etc.
