One Article to Understand Micsig MHO 6 Series High Resolution Oscilloscope

The Micsig MHO6 Series is a high-performance, high-resolution oscilloscope featuring high bandwidth, multi-channel capability, and a portable design. It delivers up to 1 GHz bandwidth, 6 GSa/s real-time sampling, 8 analog channels, and 1.8Gpts memory depth. With 12-bit vertical resolution, it precisely captures weak and high-speed signals in full detail. Running on the dedicated SigtestUI™ multitask OS for test instruments, it offers stable and smooth operation. Universal BNC connectors support 1MΩ/50Ωimpedance switching, ideal for signal acquisition and analysis in power electronics, automotive electronics, industrial control, research, and education.

1. Core Specifications

l 8 analog channels

l Bandwidth up to 1 GHz

l Sampling rate: 6 GSa/s

l Memory depth: 1.8 Gpts

l Waveform capture rate: up to 280,000 wfms/s

l Vertical resolution: 12 bits

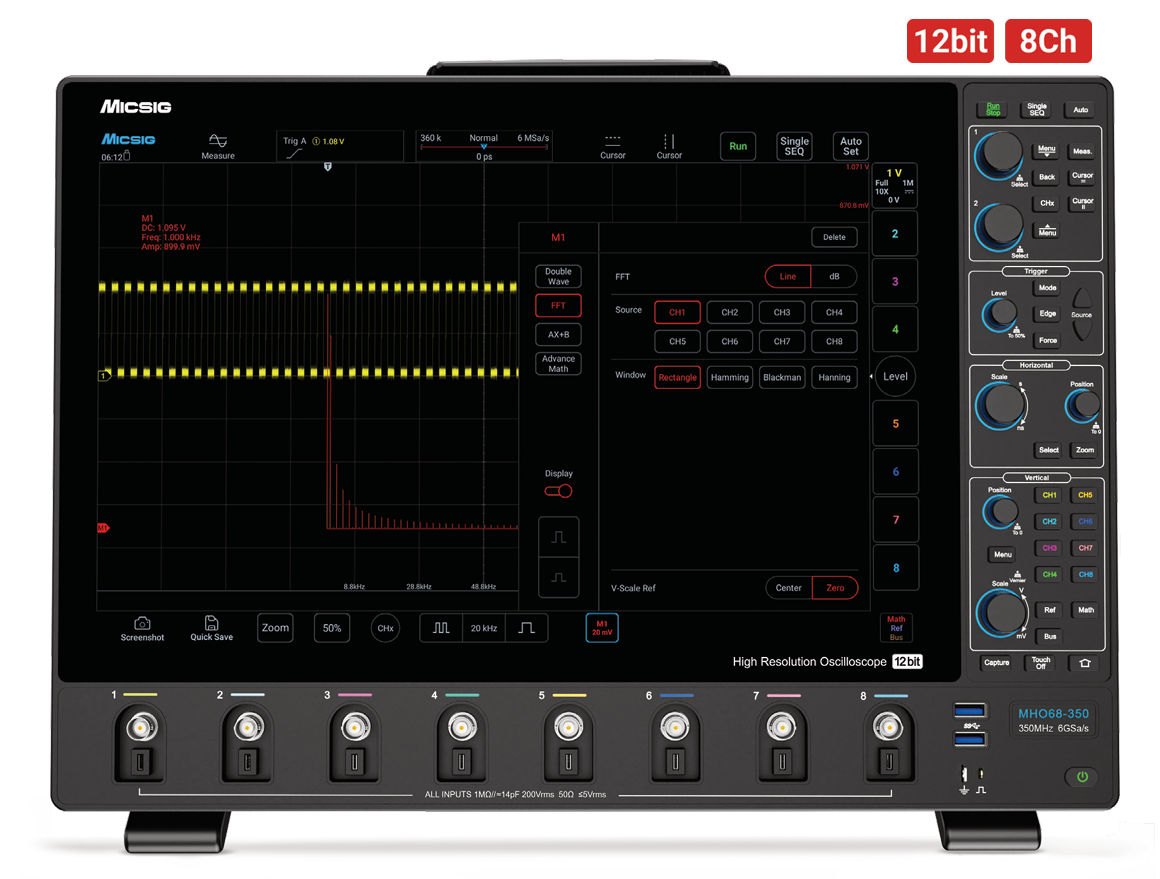

l Display: 16-inch touch screen, 1920×1200

l Dimensions: 443.6×307.2×37.6 mm

2. Key Advantages

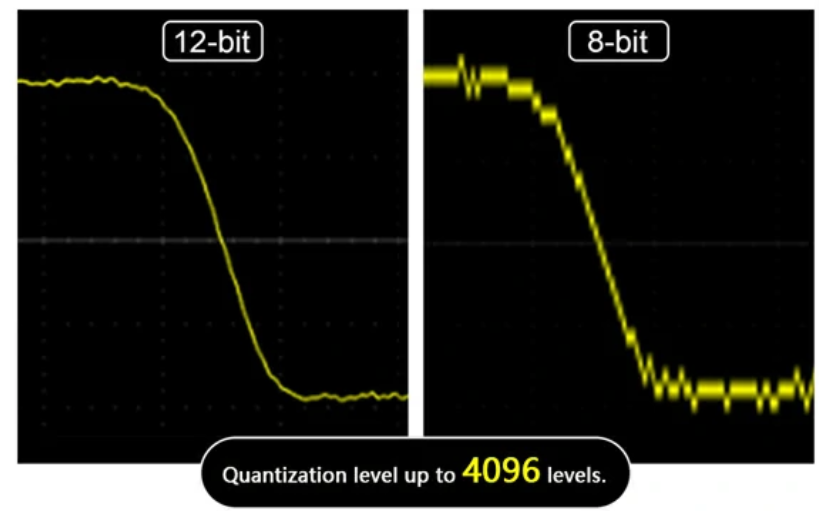

12-bit ADC for ultra-high precision

12-bit ADC provides 16 finer vertical resolution than 8-bit models. Combined with 6 GSa/s sampling and 1GHz bandwidth, it clearly reveals tiny signal details for advanced power electronics testing.

1.8Gpts ultra-deep memory

1.8Gpts standard memory and 256GB internal storage support segmented recording up to 10,000 frames with time stamps, ideal for capturing long-interval intermittent anomalies.

8-channel parallel measurement

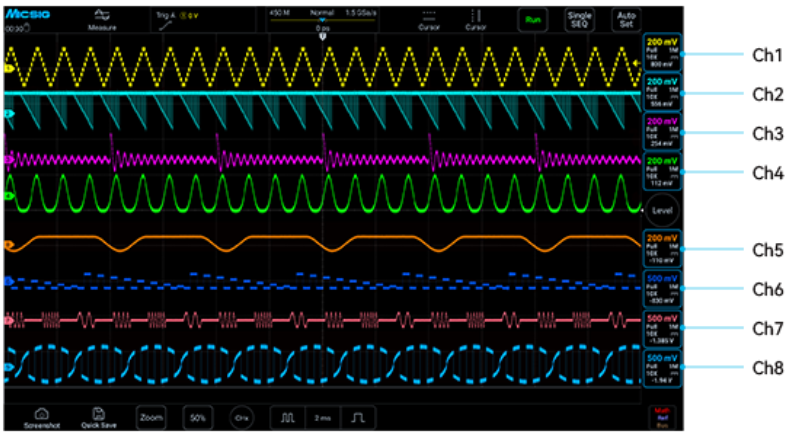

8 analog channels enable simultaneous acquisition of multi-phase power, sensors, and bus signals, greatly improving efficiency for inverters, motor drives, and complex system timing analysis.

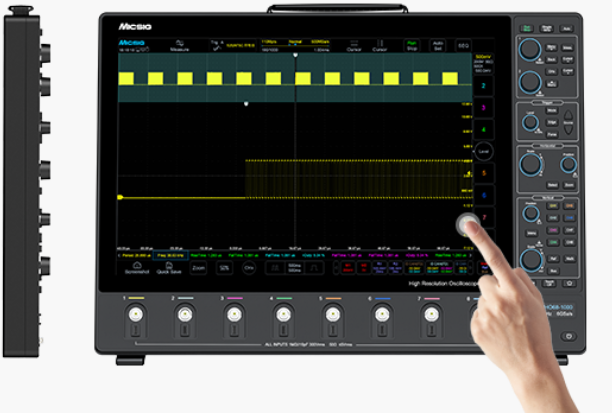

Premium 16-inch touch display

16-inch 1920×1200 touch screen delivers sharp viewing. Only 37.6 mm thin with a rear stand for flexible positioning, saving desk space and enhancing usability.

Rich interfaces & full probe support

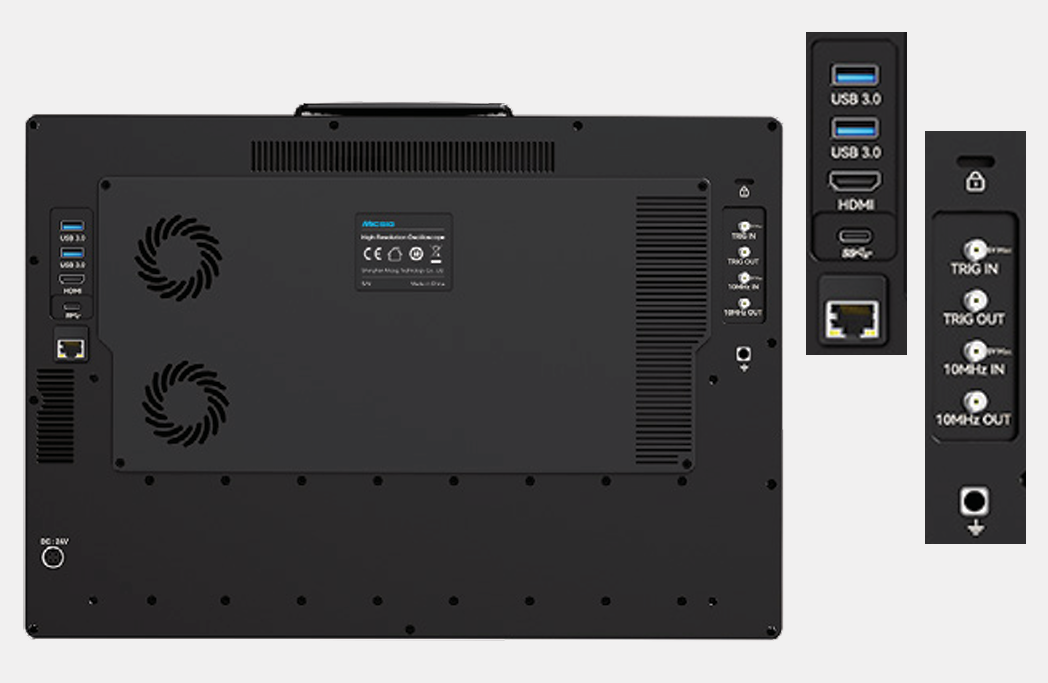

Equipped with USB 3.0/2.0, Type-C, LAN, HDMI, trigger I/O, and 10 MHz clock I/O. Works with optical isolation probes, high-voltage differential probes, Rogowski coils, and AC/DC current probes for all-around testing.

3. Typical Applications

Automotive Electronics:

8 serial bus decodings (CAN/CAN FD/LIN/ARINC429/1553B etc.) for bus monitoring and fault diagnosis.

Semiconductor R&D:

Power rail noise, power-on timing, and signal integrity test for chips and embedded systems.

Power Electronics & New Energy:

Precise measurement of SiC/GaN switching characteristics, inverters, and chargers.

Education & Research:

Large screen, HDMI output, and easy operation for teaching and scientific research.

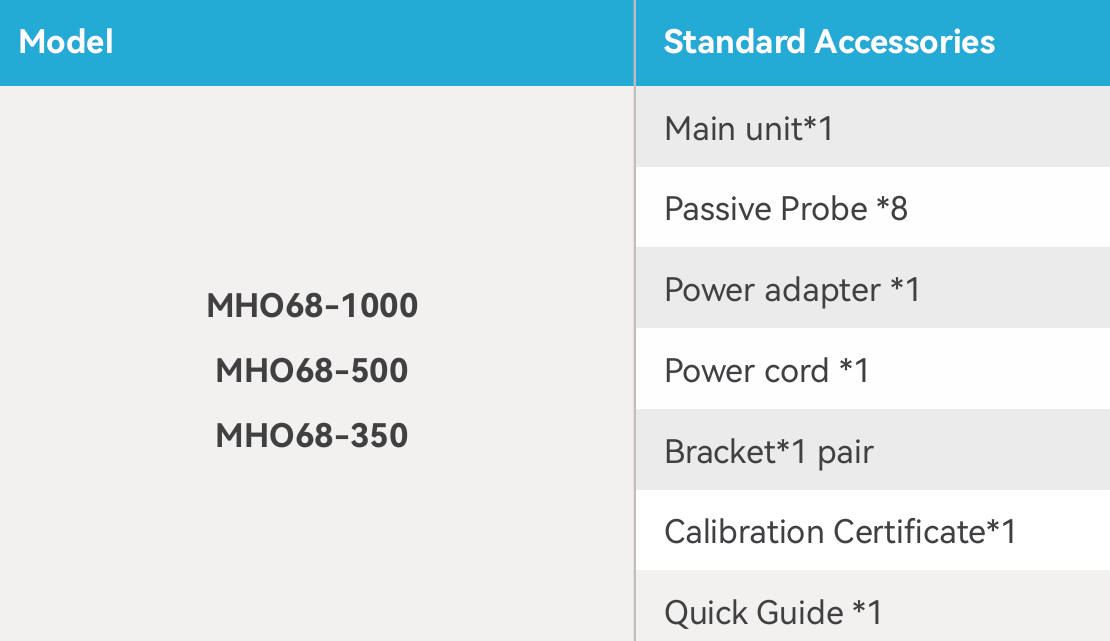

4. Standard Accessories

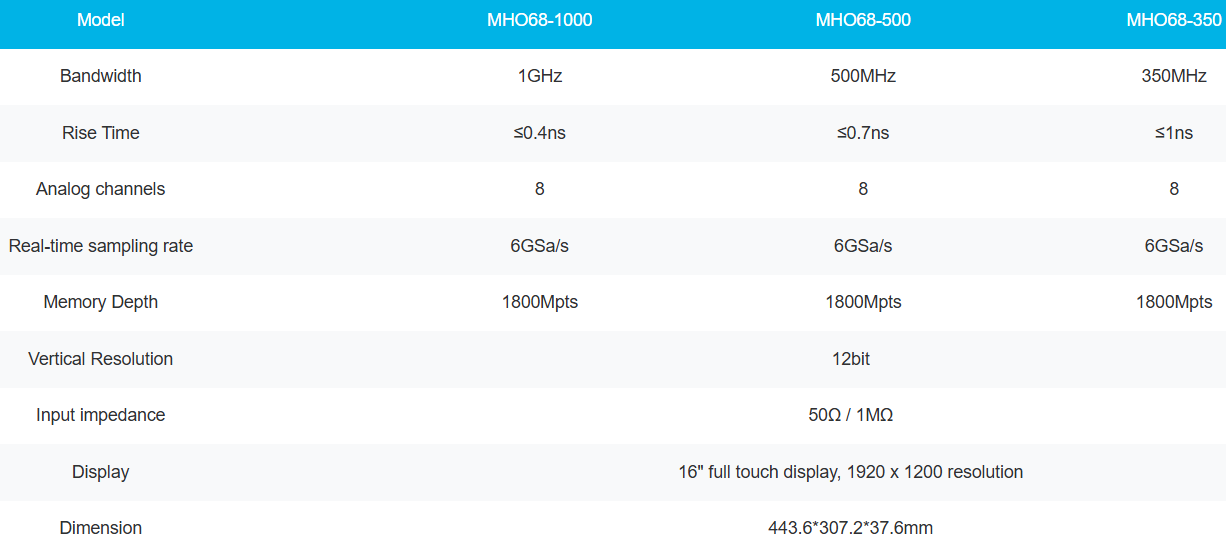

5. Model Options

The MHO6 Series includes three models: MHO68-1000, MHO68-500, MHO68-350, allowing selection by required bandwidth.
