High Voltage Differential Probes DP Series

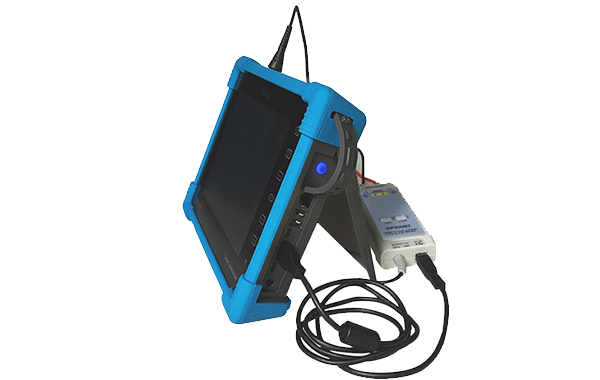

Micsig DP Series High Voltage Differential Probes can be used with

any brand of oscilloscope. It adopts high-impedance isolation between

the input and output to protect personal safety, converts the input

high-voltage signal to a low-voltage signal for observation and analysis

on oscilloscope.

Bandwidth: 100MHz

Max. Voltage: 7000Vpk

Aliexpress Amazon

High Voltage Differential Probes DP Series

Micsig DP Series High Voltage Differential Probes can be used with any brand of oscilloscope. It adopts high-impedance isolation between the input and output to protect personal safety, converts the input high-voltage signal to a low-voltage signal for observation and analysis on oscilloscope.

Bandwidth: 100MHz

Max. Voltage: 7000Vpk

Aliexpress Amazon

Features Specifications

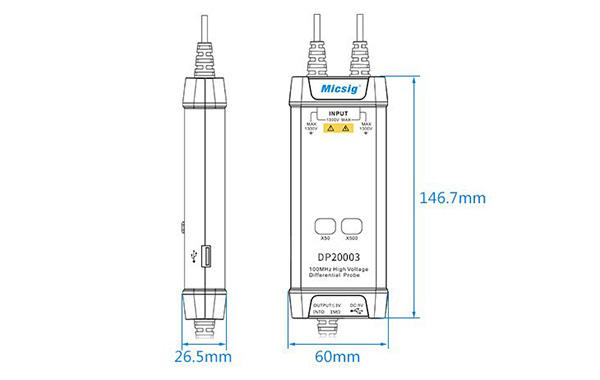

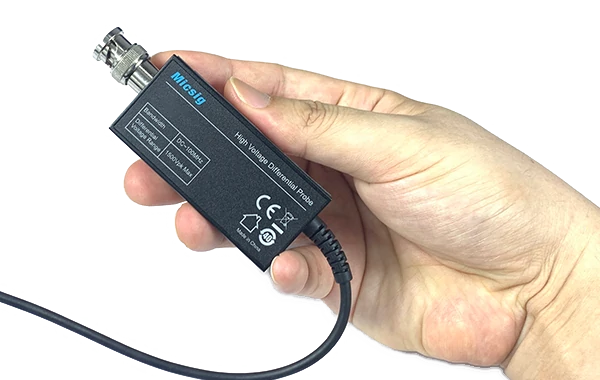

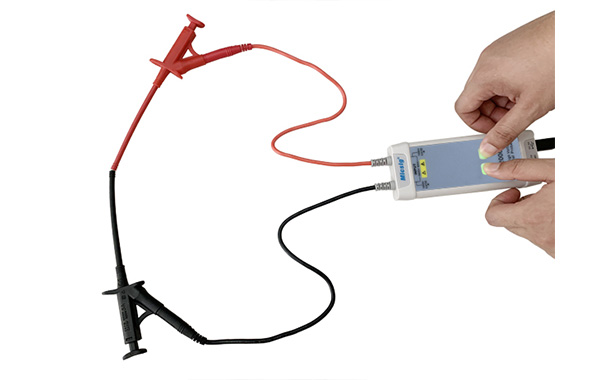

Light weight and compact size, easy to carry

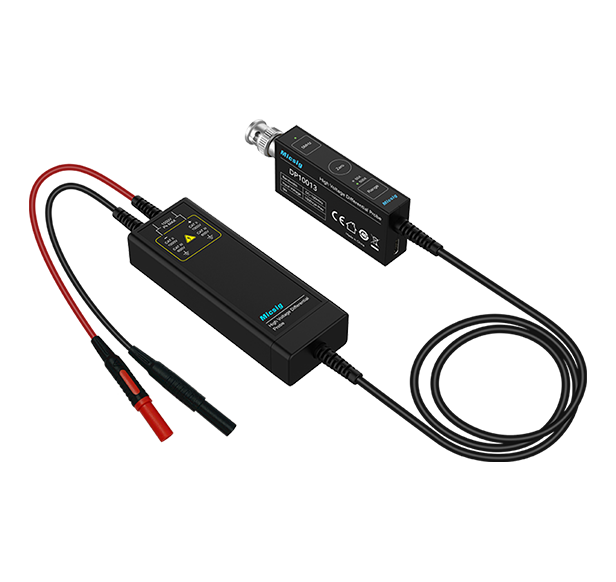

Micsig high Voltage Differential Probe DP Series

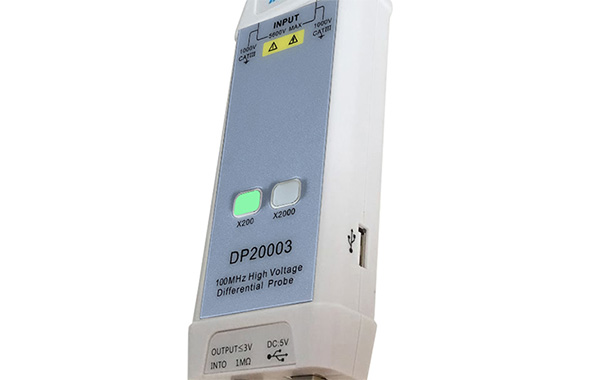

*DP20003 powered by standard adapter

Micsig dp series

Light weight and compact size, easy to carry.

Micsig high Voltage Differential Probe DP Series

*DP20003 powered by standard adapter

Key Specifications

Model	DP10007 (Upgradeable)	DP10013	DP20003
Bandwidth	100MHz	100MHz	100MHz
Rise time	≤3.5ns	≤3.5ns	≤3.5ns
Attenuation	10X, 100X	50X, 500X	100X, 1000X
Gain accuracy	±2%	±2%	±2%
Max. Differential Test Voltage（DC+AC PK）	70V（10X） 700V（100X）	130V（50X） 1300V（500X）	700V（100X） 7000V（1000X）
Max. input common mode voltage	CAT II 600V CAT I 1000V	CAT II 1000V	7000Vpk
Input referred noise	≤ 15mVrms (10X) ≤ 60mVrms (100X)	≤ 40mVrms (50X) ≤ 230mVrms (500X)	100X: ≤ 86mVrms 1000X: ≤ 205mVrms
Common Mode Rejection Ratio	＞80dB@50Hz / DC ＞60dB@20KHz ＞45dB@1MHz	＞80dB(DC) ＞60dB(100KHz) ＞50dB(1MHz)	DC : >-80dB 100kHz: >-60dB 10MHz: >-30dB 100MHz: >-26dB
Input Impedance	8MΩ/1.25pF (differential) 4MΩ/2.5pF (single end to ground)	10MΩ/1pF (differential) 5MΩ/2pF (single end to ground)	60MΩ / 0.78pF( differential) 30MΩ / 1.6pF( single end to ground )
Output Voltage	≤ 7V	≤ 3V	≤ 7V
Power	1.25W	0.85W	5W
Power supply	DC 5V，USB Supply		Standard adapter
Dimension	14.5cm * 6cm * 2.7cm		Control module: LWH: 91 33 15/mm Signal box: LWH：100 * 36 * 20/mm
Input cable length	≈ 45cm		≈ 8cm
Output cable length	≈ 90cm		≈ 120cm
Overrange Alarm	Button Light Flashes
Temperature	Operating: 0℃ ~ 40 ℃ Non-operating: -30 ℃ ~ 70 ℃
Humidity	Operating: 5 ~ 85% RH ( 0℃ ~ 40 ℃ ) Non-operating: 5% ~ 85% RH ( ≤ 40 ℃ ) ; 5% ~ 45% RH (40 ℃ ~70 ℃ )

Key Specifications

Model	DP10007 (Upgradeable)	DP10013	DP20003
Bandwidth	100MHz	100MHz	100MHz
Rise time	≤3.5ns	≤3.5ns	≤3.5ns
Attenuation	10X, 100X	50X, 500X	100X, 1000X
Gain accuracy	±2%	±2%	±2%
Max. Differential Test Voltage（DC+AC PK）	70V（10X） 700V（100X）	130V（50X） 1300V（500X）	700V（100X） 7000V（1000X）
Max. input common mode voltage	CAT II 600V CAT I 1000V	CAT II 1000V	7000Vpk
Input referred noise	≤ 15mVrms (10X) ≤ 60mVrms (100X)	≤ 40mVrms (50X) ≤ 230mVrms (500X)	100X: ≤ 86mVrms 1000X: ≤ 205mVrms
Common Mode Rejection Ratio	＞80dB@50Hz / DC ＞60dB@20KHz ＞45dB@1MHz	＞80dB(DC) ＞60dB(100KHz) ＞50dB(1MHz)	DC : >-80dB 100kHz: >-60dB 10MHz: >-30dB 100MHz: >-26dB
Input Impedance	8MΩ/1.25pF (differential) 4MΩ/2.5pF (single end to ground)	10MΩ/1pF (differential) 5MΩ/2pF (single end to ground)	60MΩ / 0.78pF( differential) 30MΩ / 1.6pF( single end to ground )
Output Voltage	≤ 7V	≤ 3V	≤ 7V
Power	1.25W	0.85W	5W
Power supply	DC 5V，USB Supply		Standard adapter
Dimension	14.5cm * 6cm * 2.7cm		Control module: LWH: 91 33 15/mm Signal box: LWH：100 * 36 * 20/mm
Input cable length	≈ 45cm		≈ 8cm
Output cable length	≈ 90cm		≈ 120cm
Overrange Alarm	Button Light Flashes
Temperature	Operating: 0℃ ~ 40 ℃ Non-operating: -30 ℃ ~ 70 ℃
Humidity	Operating: 5 ~ 85% RH ( 0℃ ~ 40 ℃ ) Non-operating: 5% ~ 85% RH ( ≤ 40 ℃ ) ; 5% ~ 45% RH (40 ℃ ~70 ℃ )
