High Voltage Differential Probe DP750-100
Bandwidth：100MHz
Max. Differential Test Voltage（DC+AC PK）：750Vpk
Attenuation：50X ；500X
Gain Accuracy ：±2%
High Voltage Differential Probe DP750-100
Bandwidth：100MHz
Max. Differential Test Voltage（DC+AC PK）：750Vpk
Attenuation：50X ；500X
Gain Accuracy ：±2%

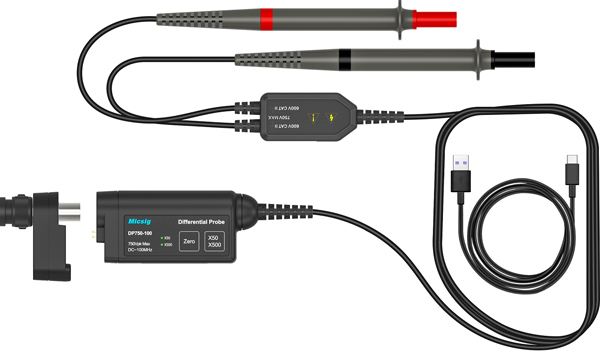

1. The leads and probe are with shielded design, interface ends are integrated in a compact box;
2. No need to twist the cables, leads to a lower noise floor and has less interference.
3. Support one-press Zero calibration and automatic overrange alarm;

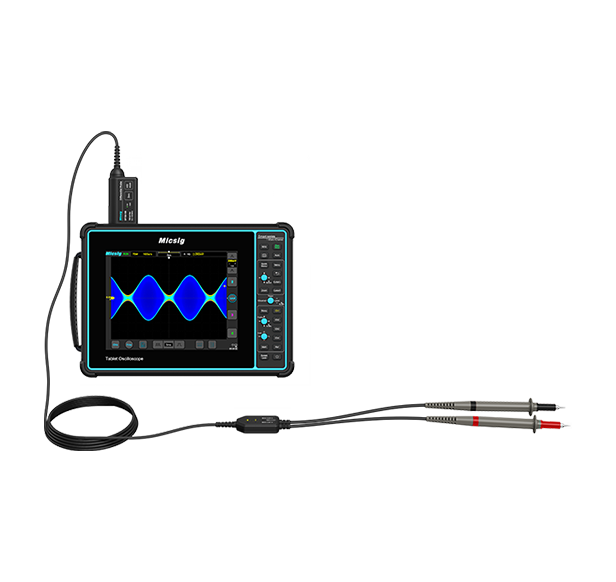

4. Directly powered by Micsig UPI interface, auto match scaling setup with oscilloscope;
5. Can be powered by oscilloscope via USB cable.
1. The leads and probe are with shielded design, interface ends are integrated in a compact box;
2. No need to twist the cables, leads to a lower noise floor and has less interference.
3. Support one-press Zero calibration and automatic overrange alarm;
4. Directly powered by Micsig UPI interface, auto match scaling setup with oscilloscope;
5. Can be powered by oscilloscope via USB cable.
Key Specifications
Key Specifications
