Understand the Micsig High Frequency AC/DC Current Probe CP Series in One Article

Updated:2025-07-04

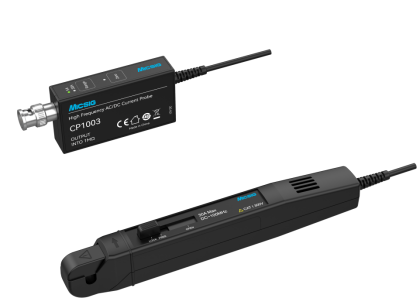

Micsig CP series high-frequency AC/DC current probe has bandwidth up to 100 MHz, 5A / 30A dual-range design, measures 30A continuous current and 50A peak current with 1% accuracy. Resolution up to 1mA. They enable precise capture of current waveforms and provide high-precision measurement results, dedicated to optimizing product design for engineers. The grip accepts wire diameters up to 5mm, offering simple and user-friendly operation. Demagnetization and Auto-Zero functions are completed with one-touch buttons. Equipped with an overcurrent alarm and range-switch reminder design, it adopts a standard BNC interface, able to work with any oscilloscope.

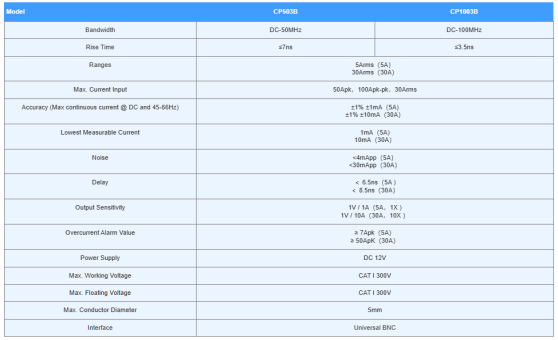

1. Core Parameters

1.1    Bandwidth: CP503B DC-50MHz, CP1003B DC-100MHz

1.2    Rise Time: CP503B ≤7ns, CP1003B ≤3.5ns

1.3 Max Continuous Current: 30Arms; Peak Current: 50Apk

1.4 Accuracy (Max continuous current @ DC and 45-66Hz): ±1% ±1mA (5A), ±1% ±10mA (30A)

1.5 Dual-Range Design: 5A (1X)/30A (10X)

1.6 Max. Conductor Diameter: 5mm

1.7 Interface: Standard BNC interface design, able to work with any oscilloscope



2. Product Advantages

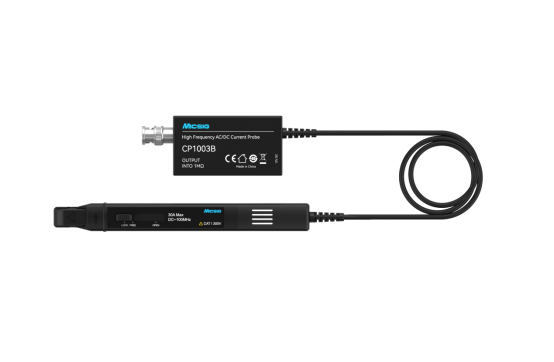

2.1 Compact and Exquisite Design, Revolutionizing Spatial Measurement Experience

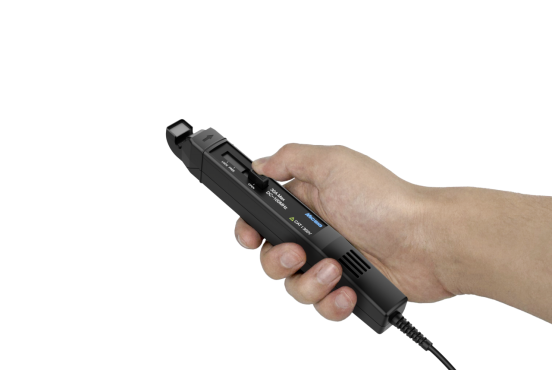

Featuring a 190g lightweight body and a compact 7×4×1.7cm control module (merely 1/3 the size of conventional current probes), its miniaturized design (with 5mm jaw diameter) enables one-handed operation. The ultra-slim profile allows effortless access to confined spaces like densely-packed PCB traces or equipment interiors, eliminating environmental constraints for high-frequency current measurements.


2.2 Ultra-Wide Bandwidth and High-Frequency Response
CP1003B: Bandwidth up to DC-100MHz, rise time ≤3.5ns, precisely reconstructing signals above 20MHz.

CP503B: Bandwidth DC-50MHz, rise time ≤7ns, suitable for medium/high frequency switching power supply (below 50kHz) measurement.


2.3 Dual-Range Precision Measurement Architecture
5A Range (1X): 1mA resolution supports 5A continuous current (RMS), ideal for monitoring chip leakage current and sensor weak signals.

30A Range (10X): Supports 30Arms continuous current (RMS), enabling observation of surge currents and adapting to high-current testing of power modules.


2.4 Intelligent Operation and Safety Protection

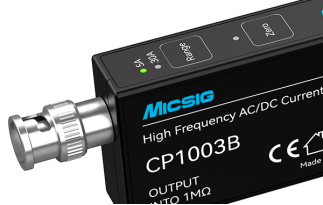

One-Touch Demagnetization/Auto-Zero: Press the "Zero" button to simultaneously execute demagnetization and zero calibration.

Overload Indication: When the current is overloaded, the corresponding range indicator light flashes to remind range switching and ensure testing safety.

Standard BNC Interface: Compatible with all oscilloscope brands for plug-and-play operation.



3. Application Fields

The Micsig CP series high-frequency AC/DC current probes are widely applied in electric vehicle transportation design, switching power supply design, semiconductor devices design, avionics design, inverter/transformer design, electronic ballast design, industrial control/consumer electronics design, engine drive design, experiment of electronic engineering, and power electronics & electric drive experimental design. They meet the professional demands of high-frequency current measurement in different fields.
