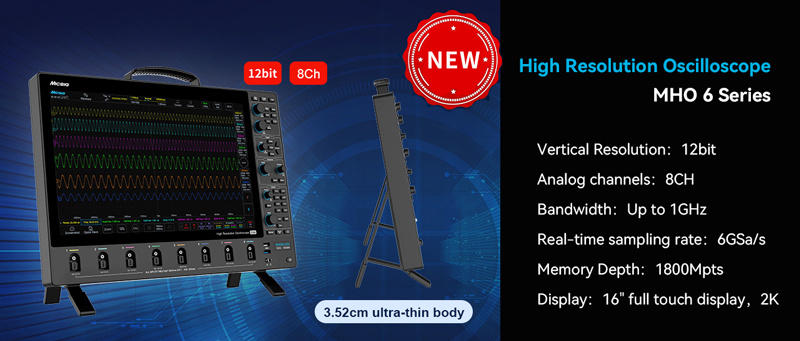

New Product Launch | Micsig High-Precision 8-Channel Oscilloscope MHO 6 Series: The All-Around Solution for Power Electronics Testing!

 In an era where green energy and power semiconductor technology are advancing rapidly, power electronics technology is evolving at an unprecedented pace, setting more stringent requirements for testing and measurement instruments. Micsig, as a dedicated practitioner in this field, has leveraged its profound understanding and rich experience in power electronics testing technology to meticulously craft the MHO 6 series oscilloscope. This high-precision 8-channel oscilloscope brings an all-encompassing solution to the field of power electronics testing!

 The MHO 6 series oscilloscope integrates high precision, high sampling rate, high bandwidth, multiple channels, and outstanding display configuration into one unit, and is further complemented by a comprehensive range of probes, providing a one-stop, all-around solution for power electronics testing.

Outstanding Performance, Precise Insight

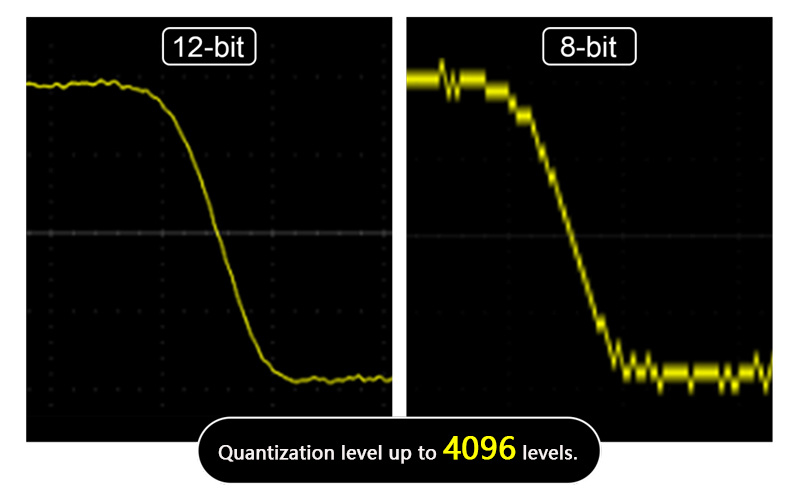

 The MHO 6 series oscilloscope utilizes high-precision 12-bit high-speed ADC technology with a sampling rate of up to 6Gsa/s. Combined with precise circuit design and advanced signal processing techniques, it achieves comprehensive capture and stable analysis of signals ranging from weak to high-speed, providing solid assurance for high-precision testing in research, production, education, and other fields. Its maximum analog bandwidth reaches 1GHz, easily meeting the test

Multi-Channel Parallelism, Efficiency Upgraded

 Equipped with 8 independent analog channels, the MHO 6 series oscilloscope allows engineers to simultaneously observe and analyze up to 8 test points, greatly enhancing testing efficiency and accuracy. It provides strong support for timing analysis, troubleshooting, and performance optimization of complex systems.

 Outstanding Display, Visual Enjoyment

 Featuring a 16-inch high-definition touch screen with a resolution of up to 1920*1200, it delivers a delicate and clear visual experience. The ultra-thin body design, with a thickness of only 3.52cm, is both portable and aesthetically pleasing, making every operation a pleasure.

 Comprehensive Probes, Full Coverage

 Based on Micsig's comprehensive probe product line, the MHO 6 series oscilloscope can be paired with MOIP series optical isolation probes, high-voltage differential probes, Rogowski coils, and high-frequency AC/DC current probes, among others. Each of these probes has its unique features and can flexibly adapt to various testing scenarios, providing a complete and reliable solution for power electronics testing.

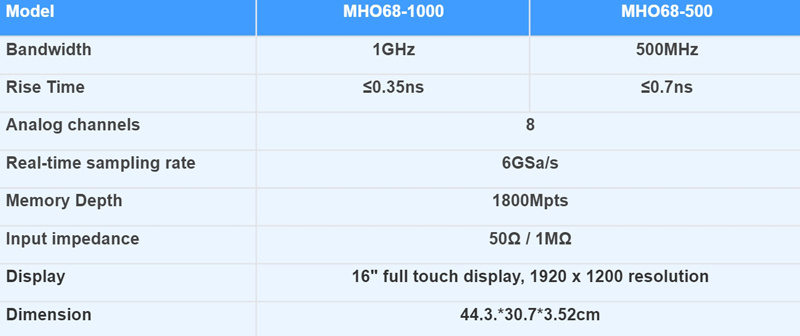

Product Specifications Table

 Micsig series oscilloscopes, with their exceptional performance, comprehensive probe product line, and user-friendly design, have become the ideal partner for every engineer in pursuit of excellence and innovative exploration.

  New Brand Logo Upgrade

 With the release of the new MHO 6 series oscilloscopes, Micsig has introduced a brand new logo design, marking the beginning of a new journey for Micsig.
