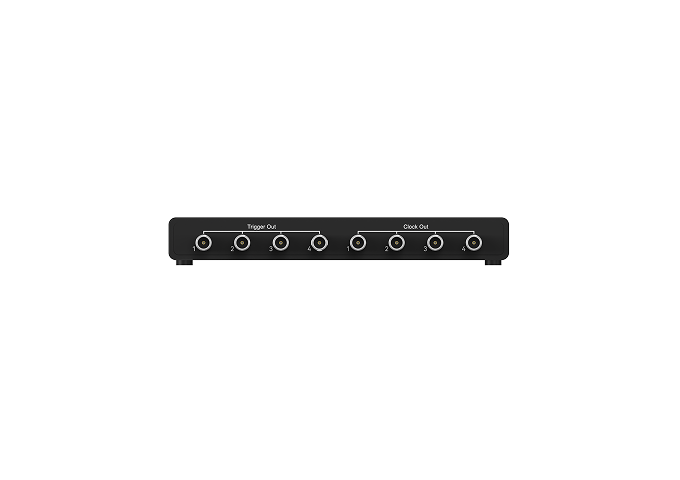

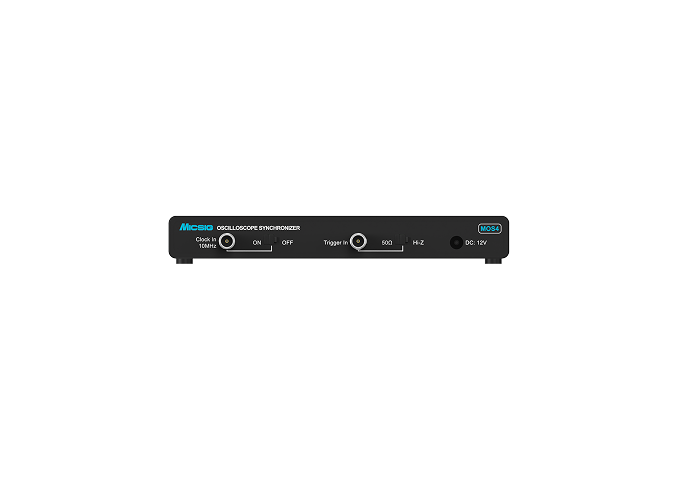

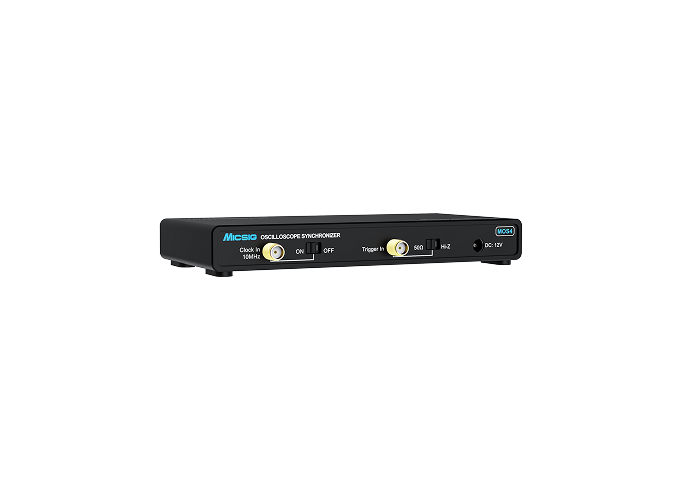

- Sync Module
-
Features
-
Specifications
-
Documents
Product Benefits
1.Impedance Adaptive:Switch between 50Ω and High-Z.
2.Facilities Cascade:Up to 4 oscilloscopes can be synchronized.
3.High Precision Clock Allocation:Time deviation < 100ps.
Core funcations
1. The synchronizer has a 10MHz inner clock and support external clock input, which can be changed by a
switch. IIt can buffered the clock into 4 outputs to achieve clock synchronization for 4 oscilloscopes.
2. It supports external triggering and can also trigger 4 oscilloscopes simultaneously. Up to 16 channels can
be synchronously collected.
MOS4 Synchronizer | ||
Trigger out | Single pulse | Output range 1.55V-1.65V, typically 1.6V |
Trigger in | Single pulse | Minimum input voltage 500mV, range -5V~5V, 50Ω or high-Z load |
Clock out | 10MHz square wave | Output range 430mV-470mV , typically 450mV |
Clock in | 10MHz square wave | Minimum input voltage 500mV, range -5V~5V, 50Ω load |
Overshoot | ＜ 10% | |
Power | 12V DC/1.5A | |
Connector | SMA | |
Operating Temperature | 0℃ - 45℃ | |
Storage Temperature | - 20℃ - 70℃ | |
ESD | ±8kV | |
Weight | 190g（±10g） | |
L*W*H | 132.4mm*77mm*18.7mm | |

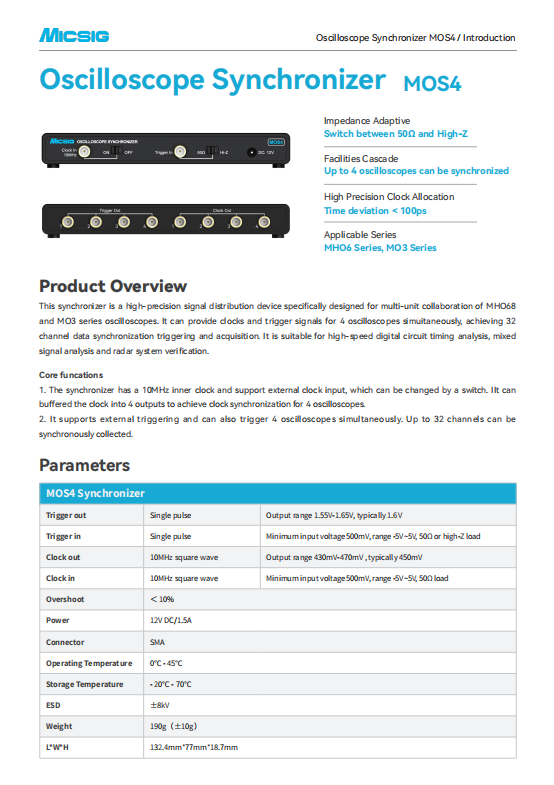

Product Introduction – Synchronizer
