High Resolution Automotive Oscilloscope Automotive Oscilloscope

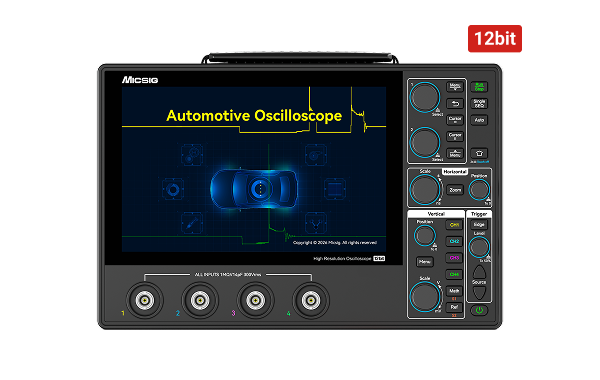

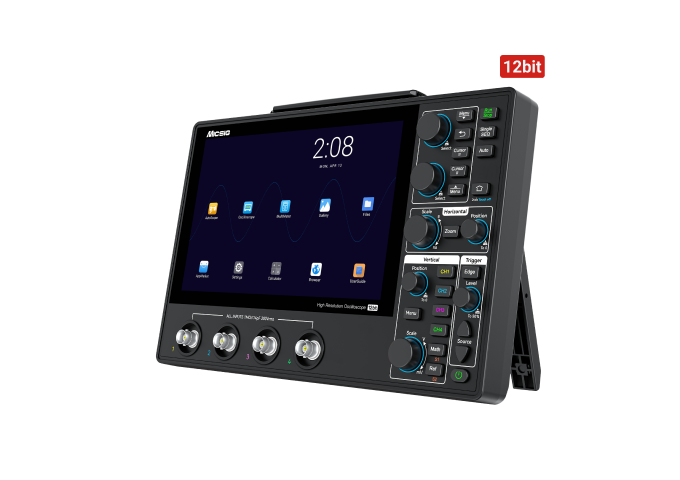

Micsig SATO Series is a professional high resolution automotive oscilloscope designed for vehicle diagnostics. It features a 12 bit ADC, 100 MHz bandwidth, 4 analog channels, a real time sampling rate of 1 GSa/s, and a memory depth of 110 Mpts. Its ultra slim 3.1 cm portable design, built in high capacity Li ion battery, and USB Type C charging makeit ideal for mobile and outdoor repair applications.

With an innovative general / automotive dual- software architecture and dedicated test modes for engines, sensors, and EV systems, it supports both ICE and new energy vehicle diagnostics, helping technicians troubleshoot faster and improve service efficiency.

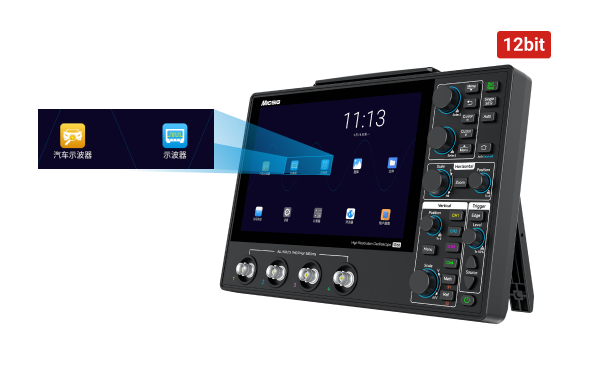

Automotive / General Oscilloscope Function

With dedicated automotive and general-purpose oscilloscope software, it meets both professional vehicle diagnostic and general electronic measurement.

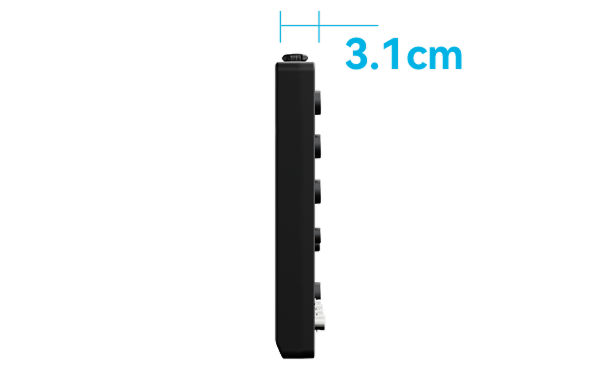

Ultra-thin 3.1cm Body

SATO series has a body thickness of only 3.1cm, which is very compact and small, easily fitting into your backpack for efficient testing anytime, anywhere.

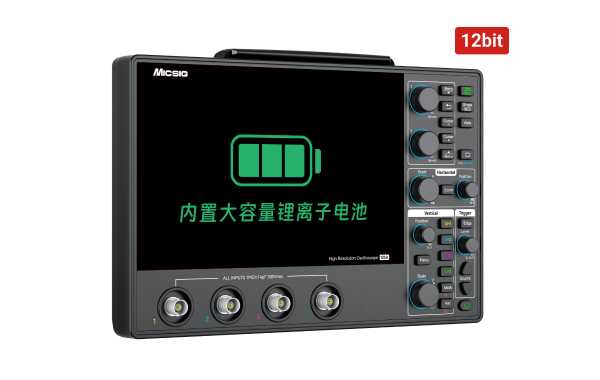

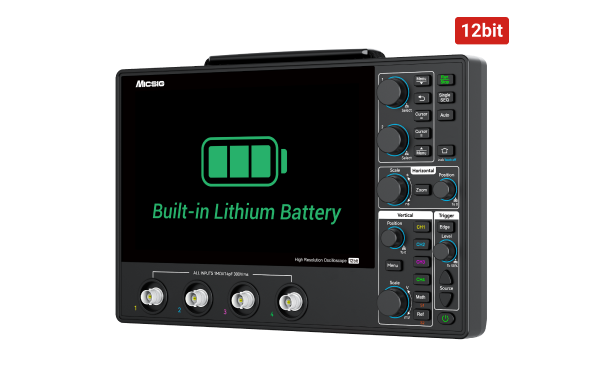

Built-in Battery for Ultimate Portability

Despite its ultra-thin design, the SATO series features a soft rubber protective casing that not only offers a comfortable grip but also excellent protective capabilities. Equipped with a high-capacity, long-life lithium-ion battery, it can withstand over 1000 charge-discharge cycles. Additionally, it supports charging via power banks, completely eliminating worries about battery life and making testing work more worry-free.

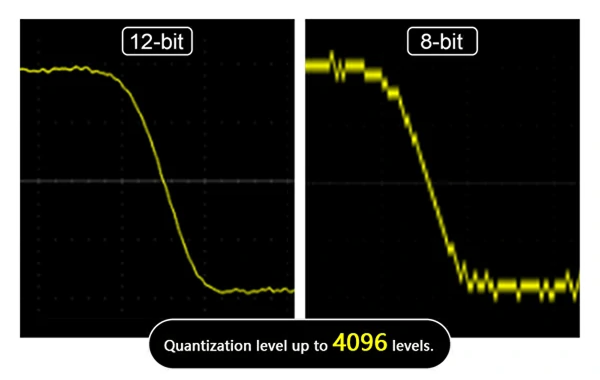

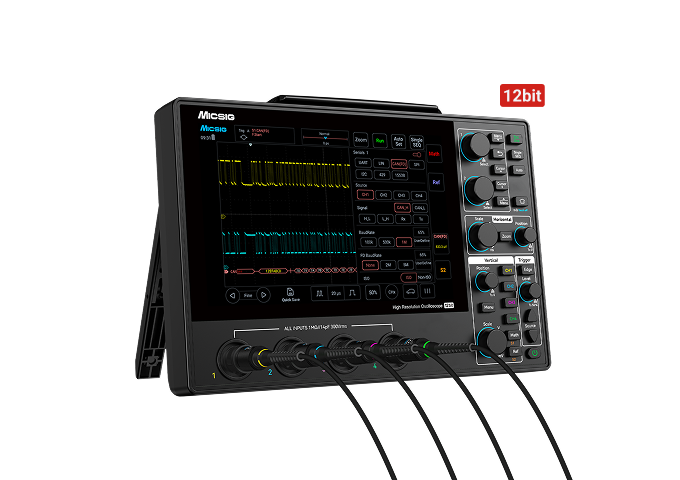

12-Bit Vertical Resolution

The SATO series utilizes a 12-bit high-resolution ADC, offering up to 4096 quantization levels, which is 16 times that of a traditional 8-bit ADC. This allows users to observe waveform details more completely and clearly.

Deep Storage, Standard Segmented Storage

Standard segmented storage divides limited storage space into multiple small segments, gathering multiple trigger events within a single storage space. With convenient analysis and viewing functions, it allows for both integrated and individual display, making analysis and positioning more accurate and efficient, turning "finding a needle in a haystack" into a possibility.

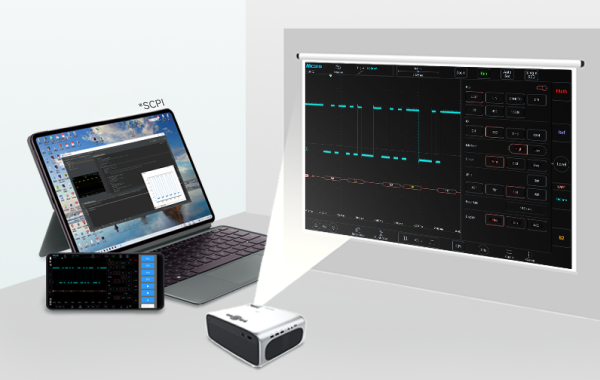

Multiple Remote Control Methods

Supports SCPI (Standard Commands for Programmable Instruments)

Compatible with mobile apps and PC-based remote control

Supports HDMI direct connection to displays without requiring any installation

User-Friendly UI for Quick Start

Three operation modes: fully touchscreen, physical buttons and knobs, and hybrid operation. Equipped with the SigTest UI, a specialized instrument system evolved from thousands of engineer user suggestions, all operations can be completed swiftly, simplifying complex tasks.

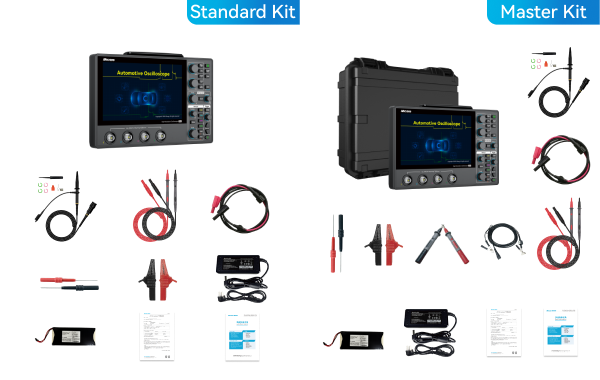

Professional Accessories: Twin Package Options

The automotive oscilloscope comes standard with a variety of automotive repair-specific accessories, such as probes and alligator clips. These professional-grade tools make measurements more convenient and efficient.

Master Kit includes a professional carrying case, while Standard Kit features essential core accessories - meeting diverse diagnostic needs.
