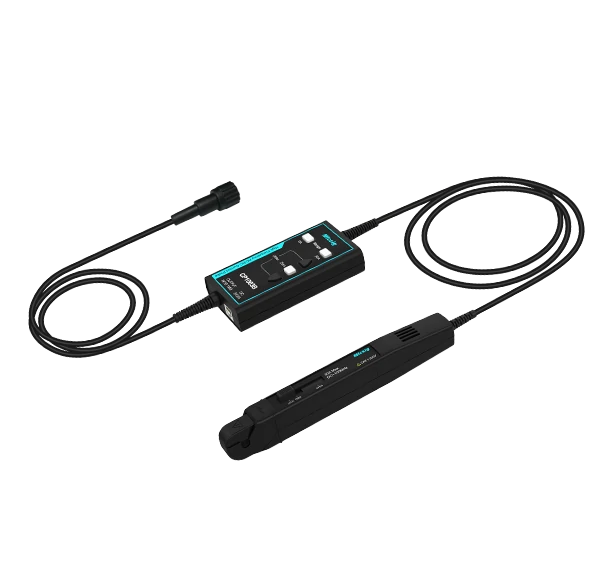

- High Frequency AC / DC Current Probe
High Frequency AC / DC Current Probe History Product
Bandwidth：DC~50MHz / 100MHz
Current Range：6A/30A
DC Accuracy (Typical)：±1%
-
Features
-
Specifications
-
Documents

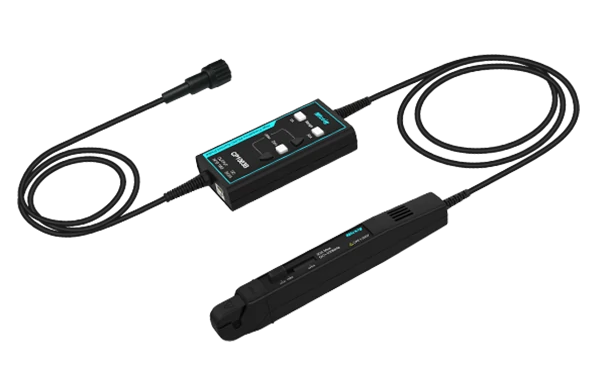

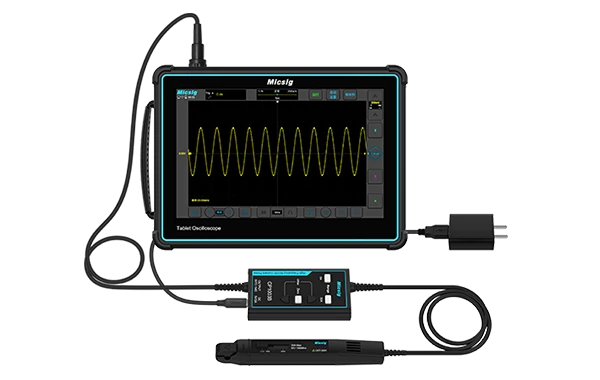

BNC Interface
Standard BNC interface to work on any oscilloscope.

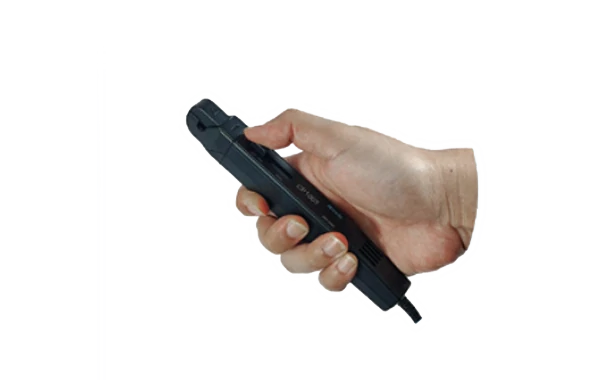

Compact and Exquisite Design
One-handed easy use.
Applicable to various complex tests.

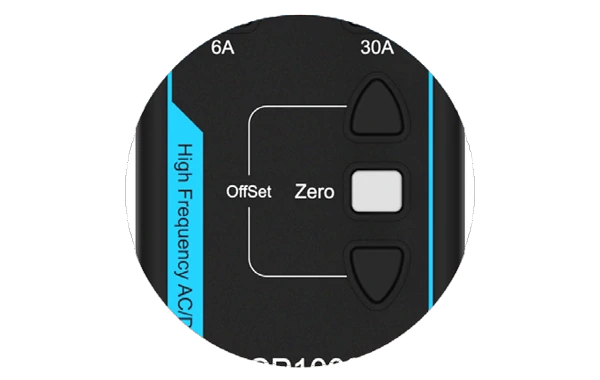

Auto Degaussing and Zero.
Press "Zero", the probe will be degaussed and calibrated automtically at the same time.

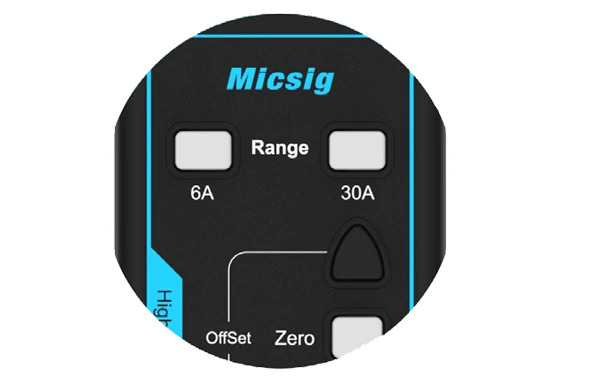

Overload Indicator
When the current is overloaded, corresponding range button will flash.
HF Current Signal Measurements

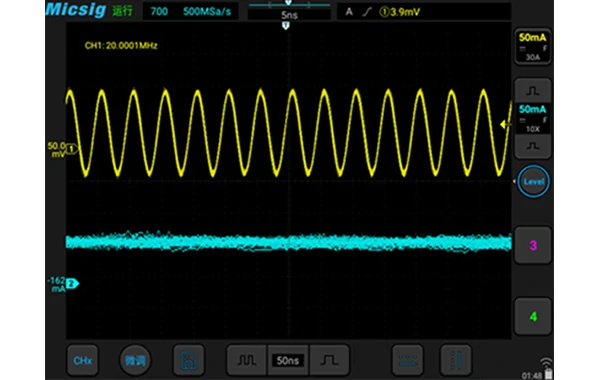

Accurate measurement capability on high-frequency signals >20MHz. (CH1 Yellow).
Same signal completely distorted when measured by low-frequency probe. (CH2 Blue).

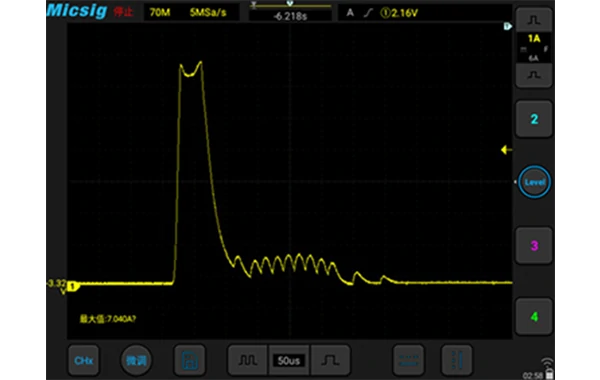

Observe Surge Current
Accurately capture the surge current waveform when the power adapter starts.
Applications
● Electric vehicle transportation design
● Switching power supply design
● Experiment of electronic engineering
● Semiconductor devices design
● Avionics design
● Inverter/Transformer design
● Electronic ballast design
● Industrial Control / Consumer Electronics design
● Engine driven design
● Power electronics and electric drive experimental design
| Model | CP503B | CP1003B |
| Bandwidth | 50MHz | 100MHz |
| Rise Time | ≤7ns | ≤3.5ns |
| Power Supply | DC 5V 3A | |
| Delay | <30ns (6A) <30ns (30A) | |
| Range | 6A（2X）/ 30A (10X) | |
| Output Sensitivity | 1V/2A (6A) 1V/10A (30A) | |
| DC accuracy (typical) | ±1%+10mA(6A) ±1%+50mA(30A) | |
| Input Current Range | 20mA-6Apk(6A) 50mA-30Apk (30A) | |
| Max. Current Input | 30Apk，60Apk-pk，21.21Arms | |
| Noise | ≤1.4mA RMS (Bandwidth at 20 MHz, Range 30A，10X) | |
| Max. Working Voltage | CAT I 300V | |
| Max. Floating Voltage | CAT I 300V | |
| Max. Conductor Diameter | 5mm | |
| Overload Indicator | Flashing light | |

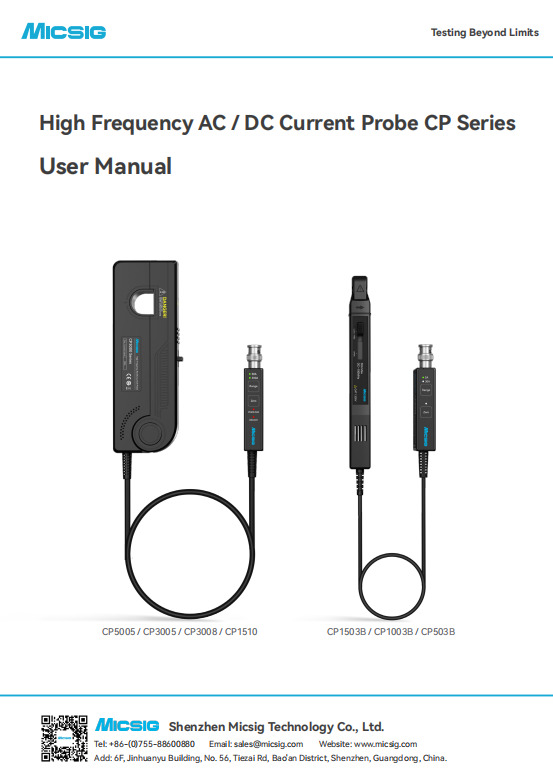

User Manual - High Frequency AC&DC Current Probe CP Series（Old）
File size： 906.21 KB
Update time： 2026-08-06
Datasheet - High Frequency AC&DC Current Probe CP Series（Old）
File size： 1.58 MB
Update time： 2026-08-06
