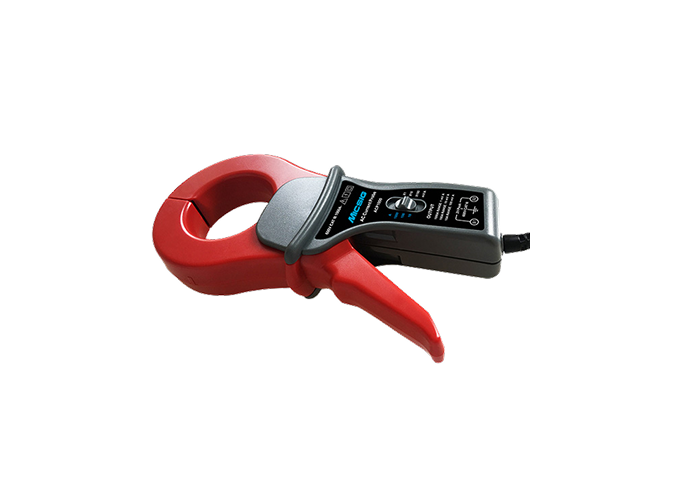

AC Current Probe AC/DC Current Probe
Operating Frequency: 10Hz ~ 100kHz
Current Range: Up to 1000A
Maximum Accuracy: 1%

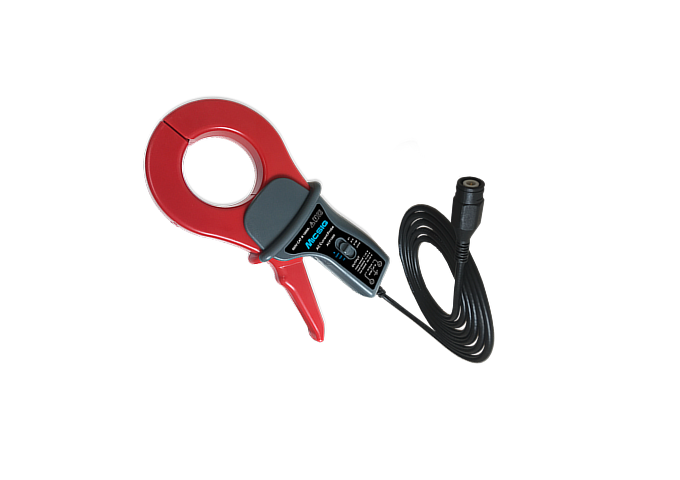

Interface: BNC
-
Features
-
Specifications
-
Documents
1、Simple, easy, safe to use;
2、Premium material, durable;

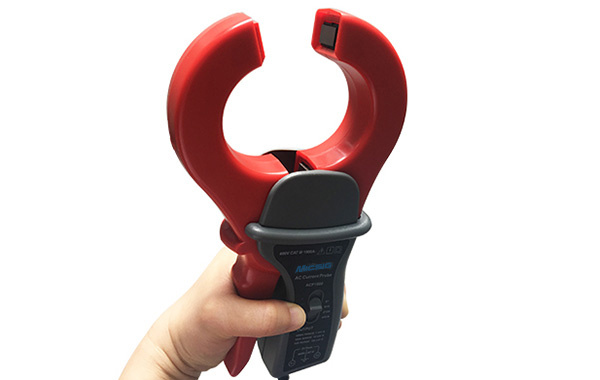

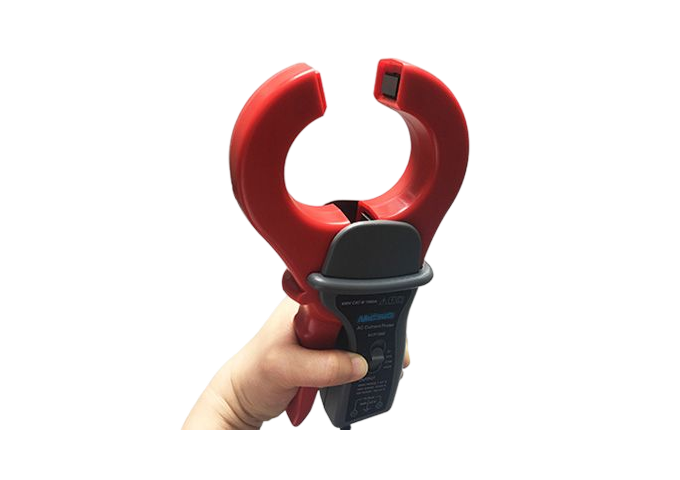

3、Clamp design, no need to disconnect the circuit-under-test.

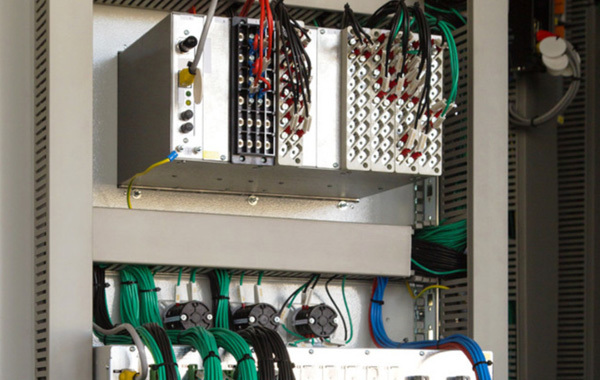

Applicable for current, electrical energy, power factor correction devices, motor drivers, inverters, converters, industrial control devices, oscilloscopes and harmonic analyzers, aviation electronic equipment.
| Model | Input | Rated Output | Frequency (Hz) | Rated Burden | Accuracy Grade |
|---|---|---|---|---|---|
ACP1000 | 0.1–10 A | 100mV/A | 10Hz-100kHz | ≥100 kΩ | 3% ± 10 mV |
0.1–100 A | 10mV/A | 2% ± 5 mV | |||
1–1000 A | 1mV/A | 1% ± 1 mV |
Quick Guide - ACCurrent Probe ACP1000
File size： 545.67 KB
Update time： 2026-08-04
Brochure - AC-Current-Probe-ACP1000
File size： 585.36 KB
Update time： 2026-08-04
