- High Voltage Differential Probe DP750

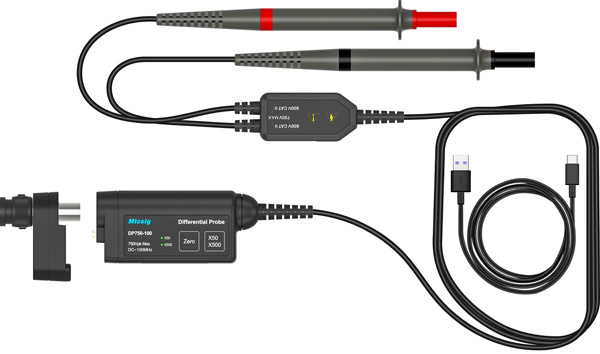

High Voltage Differential Probe
DP750-100
Bandwidth：100MHz
Max. Differential Test Voltage（DC+AC PK）：750Vpk
Attenuation：50X ；500X
Gain Accuracy ：±2%
-
Features
-
Specifications
-
Documents
1. The leads and probe are with shielded design, interface ends are integrated in a compact box;
2. No need to twist the cables, leads to a lower noise floor and has less interference.
3. Support one-press Zero calibration and automatic overrange alarm;
4. Directly powered by Micsig UPI interface, auto match scaling setup with oscilloscope;
5. Can be powered by oscilloscope via USB cable.
| Model | DP750-100 |
| Bandwidth | 100MHz |
| Rise time | ≤3.5ns |
| Attenuation | 50X ；500X |
| Gain accuracy | ±2% |
| Maximum Differential Test Voltage（DC+AC PK） | 50X: 75V 500X: 750V |
| Maximum input common mode voltage（DC+AC PK） | CAT II 1000V |
| Input referred noise | ≤ 12mVrms （50X） ≤ 120mVrms （500X） |
| Common Mode Rejection Ratio (Typical) | ＞ 80dB （DC） ＞ 60dB （100KHz） ＞ 50dB （1MHz） |
| Input Impedance | 8MΩ||1.25pF(differential) 4MΩII2.5pF(single-ended to ground) |
| Output Voltage | ≤1.5V |
| Power | 1W |
| Power supply | DC 5V USB, Micsig UPI interface |
| Overrange Alarm | Flashing light |
| Dimension | Power Supply Box: 80*37*22 mm Signal In/Output Box: 49*25*12.5 mm |
| Input cable length | 15cm |
| Output cable length | 100cm |
| Operating temperature | 0℃-40℃ |
| Operating humidity | 10%-85% |

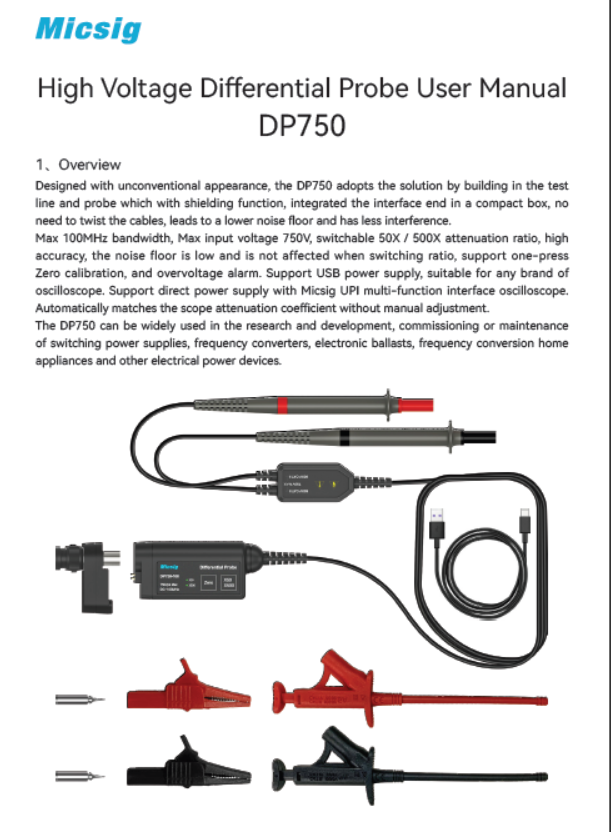

User Manual - High Voltage Differential Probe DP750（EOL）
File size： 601.47 KB
Update time： 2026-08-06

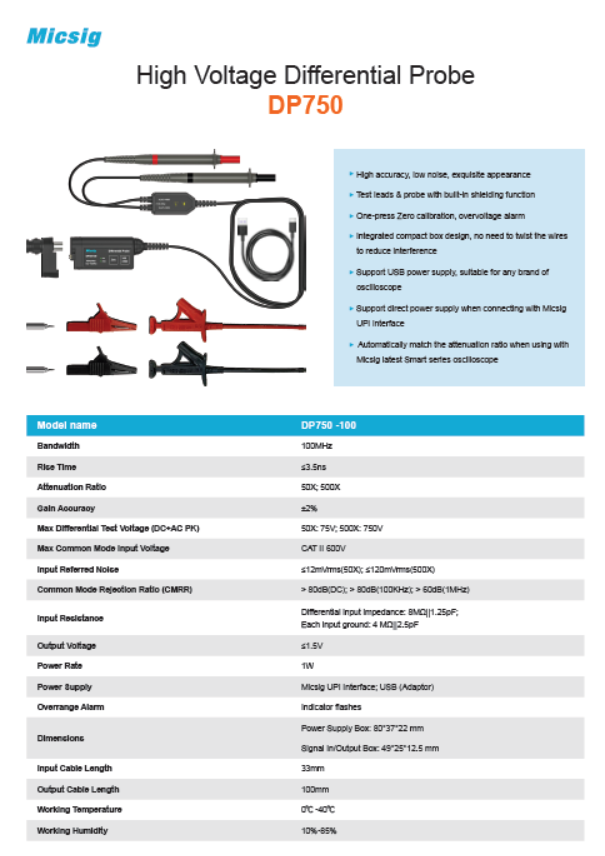

Brochure - High Voltage Differential Probe DP750（EOL）
