Android (USB) Oscilloscope 8 Bit Tablet Oscilloscope
Bandwidth：200MHz
Sampling Rate：1GSa/s
Memory Depth：50Mpts
Analog Channels：4
-
Features
-
Specifications
-
Documents

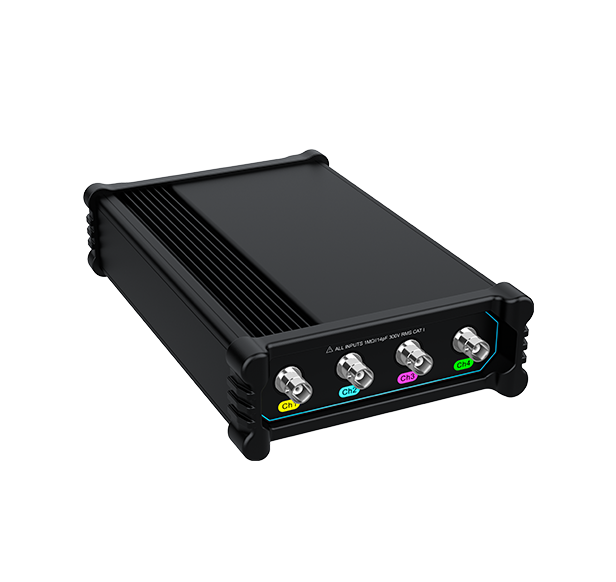

Low Cost, New Experience

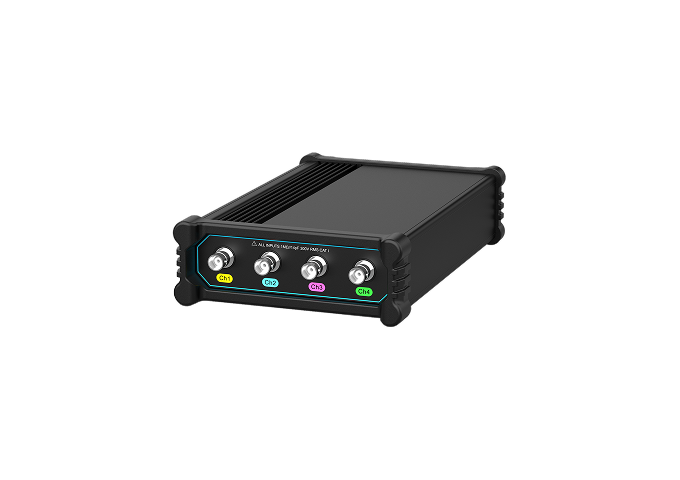

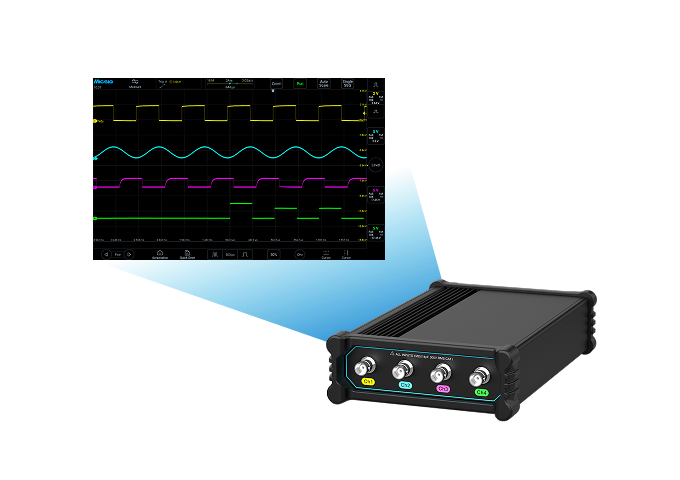

The VTO series oscilloscope is a low cost split-type handheld oscilloscope. Bandwidth up to 200MHz, with 4 channels, 1GSa/s sampling rate, and 50Mpts memory depth. Friendly UI and rich measurement options provide you a brand-new oscilloscope experience.

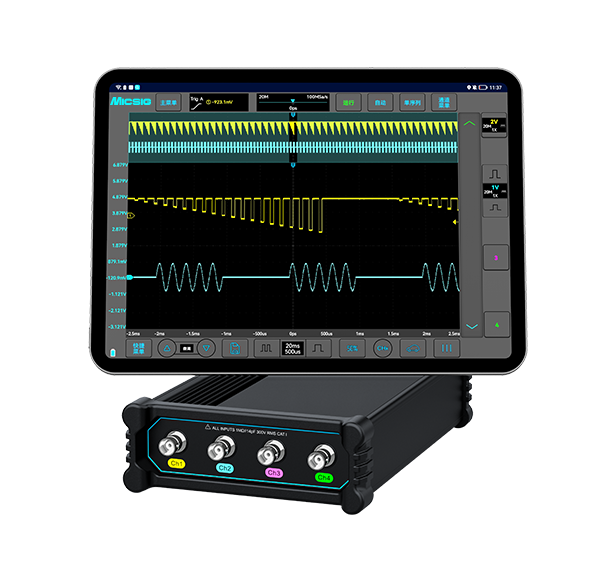

Easy Connections
The VTO series can be used with any Android platform or device via USB-C, such as smartphones, tablet devices, or personal computers with Android system.
Large Battery Powered
7500mAh lithium battery (optional) enables up to 24-hour field testing, power-off lock make sure secured transport.

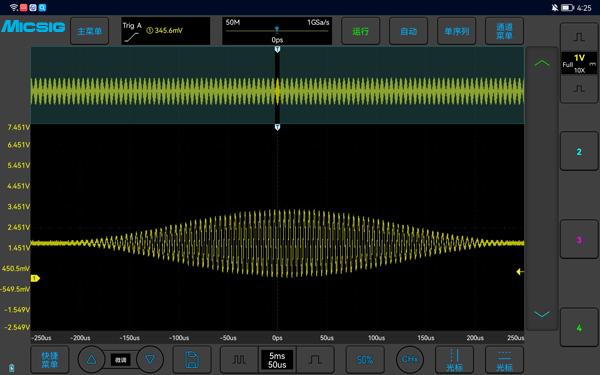

High Memory Depth
Up to 50Mpts memory depth, combined with Zoom technology, display every signal details.

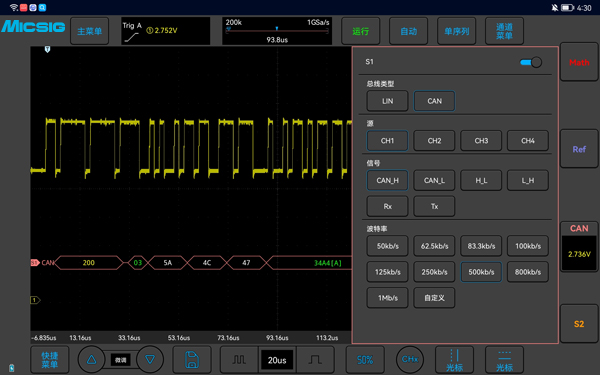

Serial Bus Decode
Support CAN, LIN serial bus decode

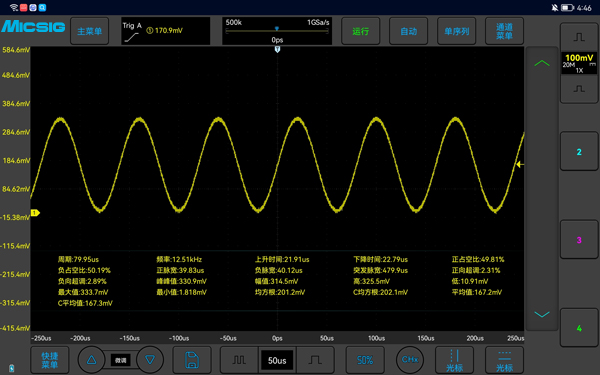

Auto Measurements
Supports 31 types of automated measurements, one key to select or clear.
Model | VTO2004 |
Bandwidth | 200MHz |
Analog Channels | 4 |
Rise Time | ≤ 1.75ns |
Real-time Sampling Rate | 1GSa/s |
Memory Depth | 50Mpts |
Vertical Resolution | 8bit |
DC Gain Accuracy | ≤ 2% |
Input Impedance | 1MΩ±1% || 15pF |
Power Supply | DC 12V |
Battery | 7.4V, 7500mAh Lithium-ion battery |
Dimensions | 140*215*52mm |
Net Weight | 640g |

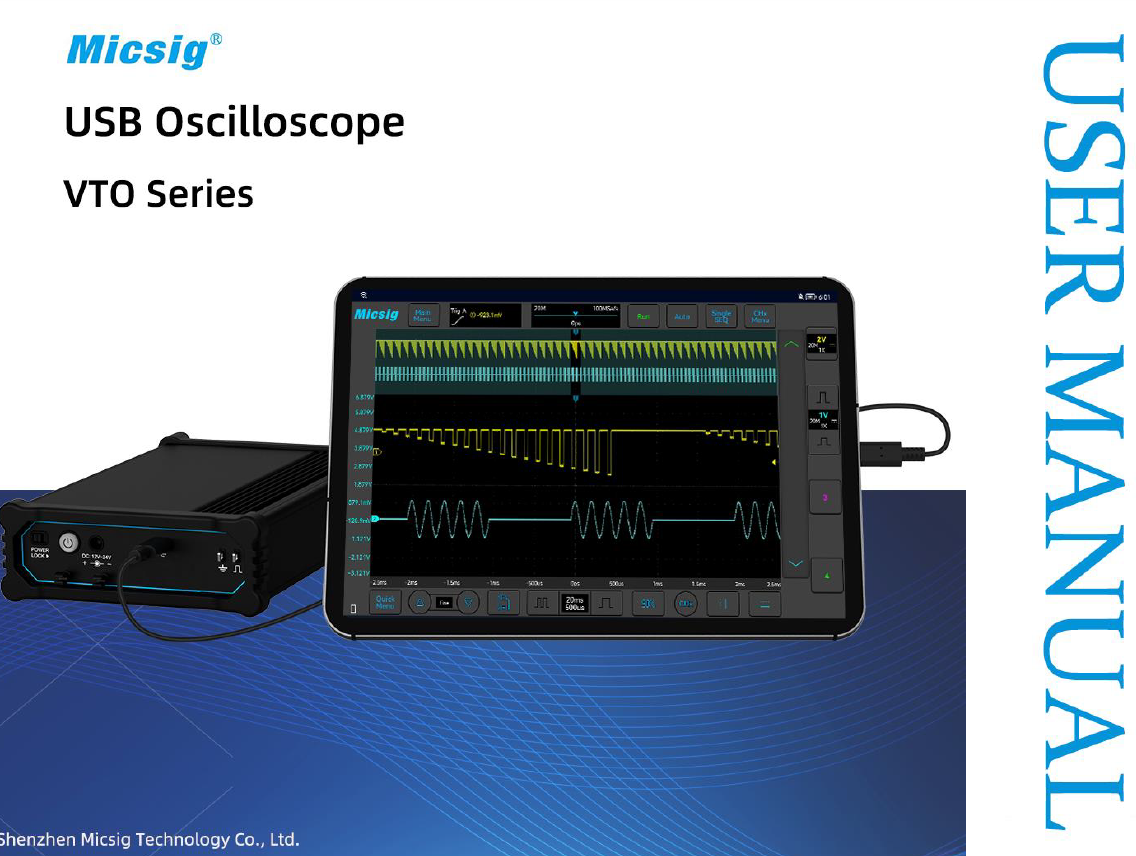

User Manual - Android(USB) Oscilloscope VTOSeries
File size： 8.53 MB
Update time： 2026-08-04

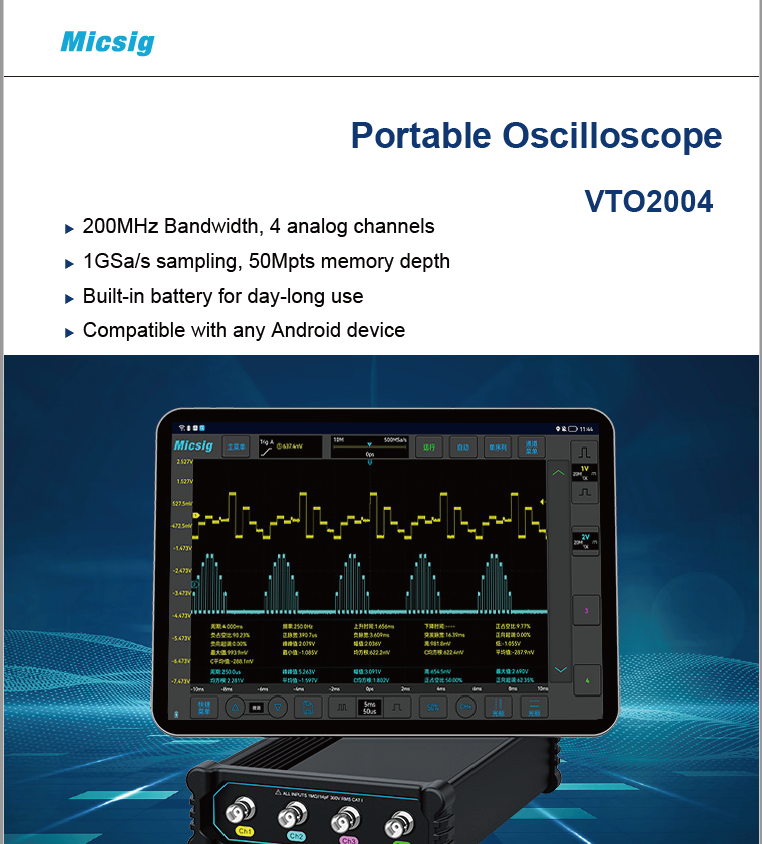

Datasheet - Android (USB) Oscilloscope VTO Series
File size： 2.1 MB
Update time： 2026-08-04
