Automotive Oscilloscope
Automotive Oscilloscope

Automotive Oscilloscope Automotive Oscilloscope

Bandwidth：200MHz
Sampling Rate：1GSa/s
Memory Depth：50Mpts
Analog Channels：4

sales@micsig.com

Overview
Document
Download

Features
Specifications

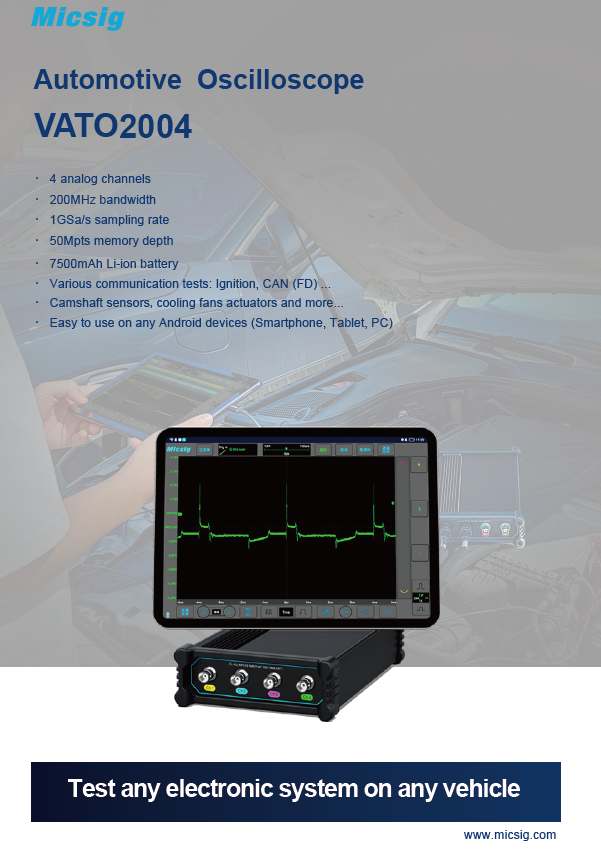

Documents

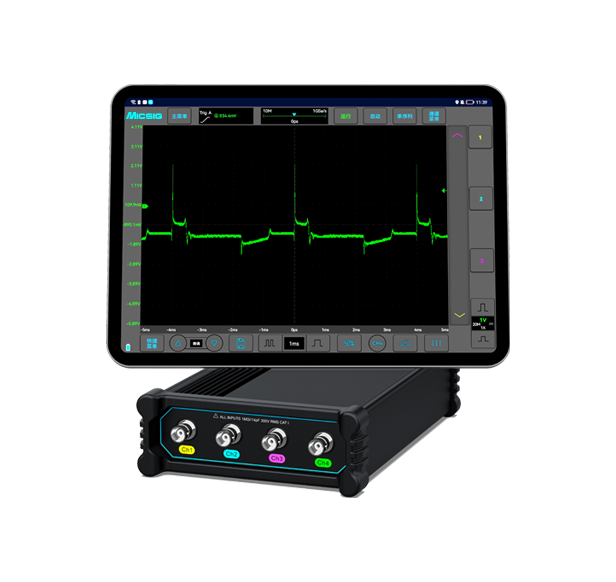

Ultimate Portability

Install and run the oscilloscope Apk on any Android devices: smartphone, tablet, or Android PC, all signals on your fingertip.

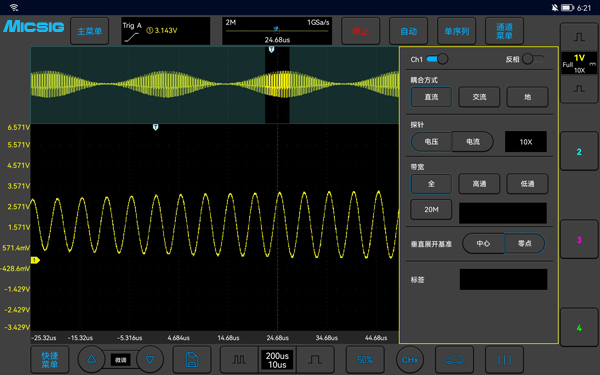

Intuitive Operation

Equipped with a operating system designed for mobile devices, offering extremely simple and reliable performance.

Large Battery Powered

7500mAh lithium battery (optional) enables up to 24-hour field testing, power-off lock make sure secured transport.

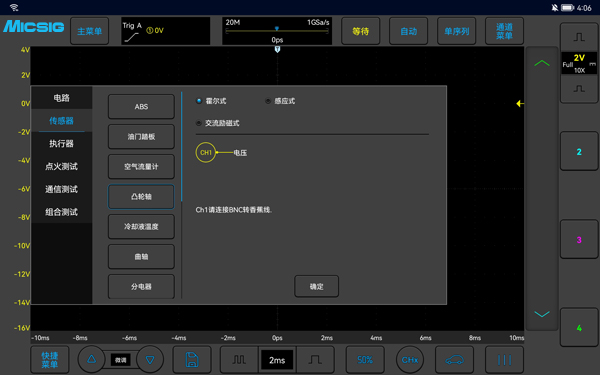

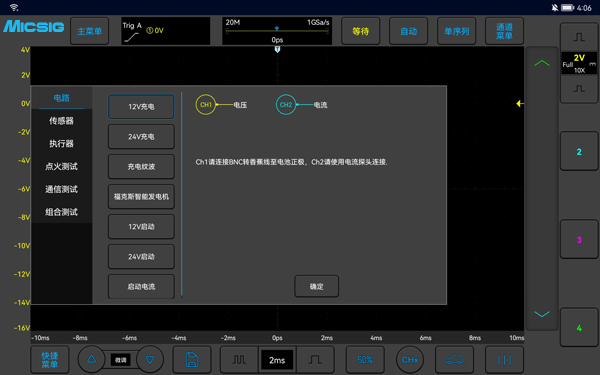

Circuits

Charging/Starting System Testing, including 12V / 24V charging/starting circuit, charging ripples, and other related tests.

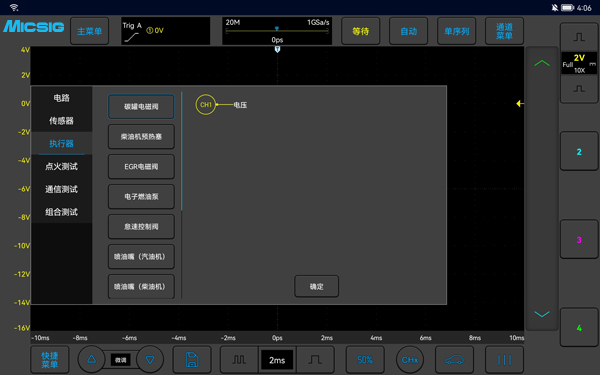

Sensor

Various automotive sensor tests:
ABS, throttle pedals, intake pressure,
air flow meter, crankshaft, camshaft, knock,
distributor, oxygen sensor...

Actuators

Support various actuator tests:
fuel injector voltage and current, fan control signals,
variable valve timing, carbon canister solenoid valve,
EGR solenoid valve, etc.

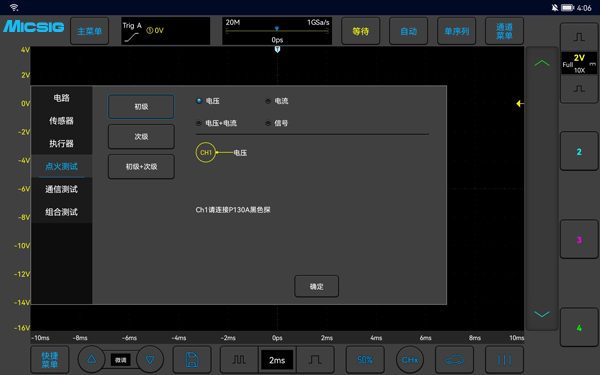

Ignitions

Including primary ignition, secondary ignition,

primary + secondary ignition.

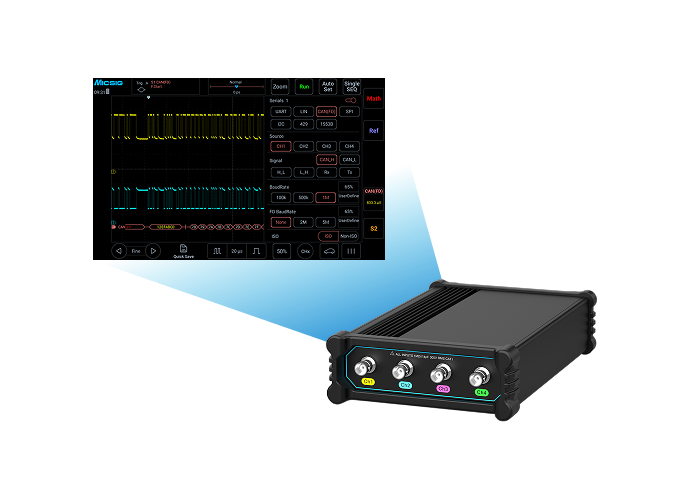

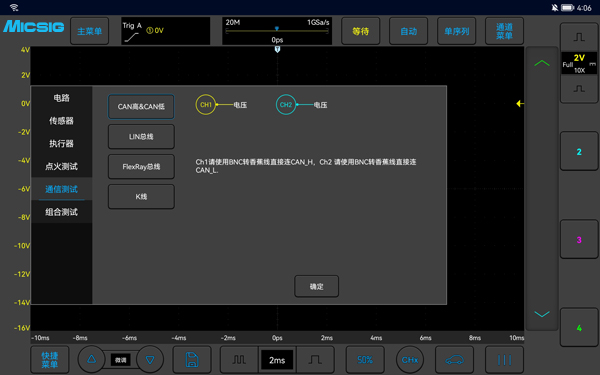

Networks

Network (Communication) tests, including CAN Low/High, LIN, FlexRay, and K-line.

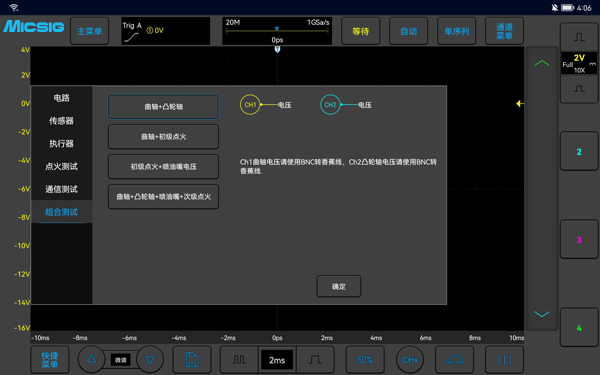

Combination Tests

Support combination test when multiple channels are connected:
such as crankshaft + camshaft, primary ignition + fuel injector voltage...

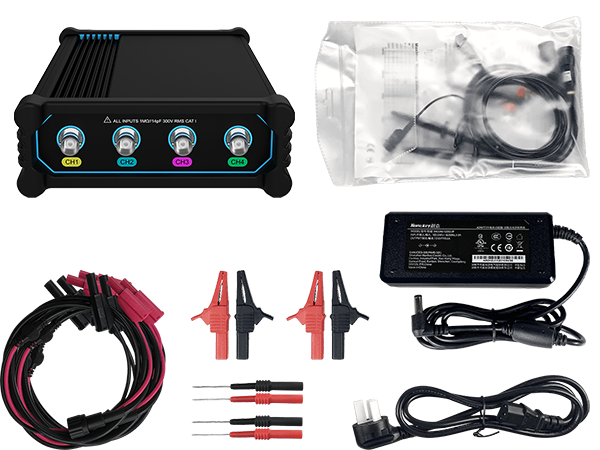

Standard Accessories

Passive probes (10:1), alligator clips, pin probes, BNC - banana cables.

Model	VATO2004
Bandwidth	200MHz
Analog Channels	4
Rise Time	≤1.75ns
Real-time Sampling Rate	1GSa/s
Memory Depth	50Mpts
DC Gain Accuracy	≤ 2%
Vertical Resolution	8bit
Input Impedance	1MΩ±1% \|\| 15pF
Power Supply	DC 12V
Support Testing	Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, LIN, Flexray, K line), Combination Tests
Battery (Optional)	7.4V, 7500mAh lithium-ion battery
Dimensions	14021552mm
Net Weight	640g
