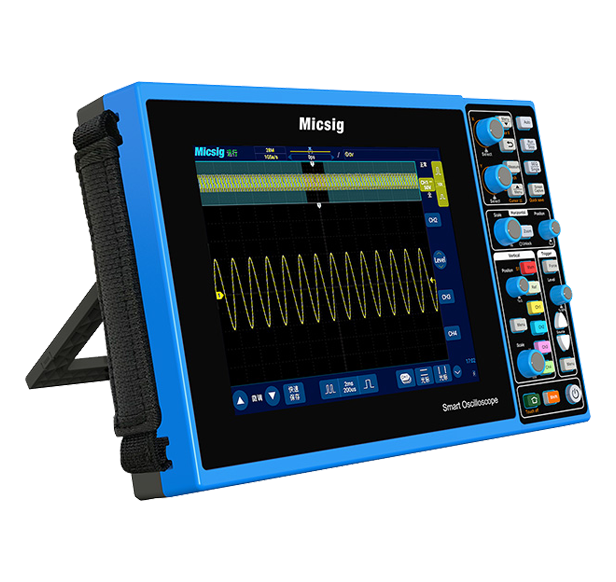

Smart Oscilloscope History Product
Bandwidth：150MHz
Sampling Rate：1GSa/s
Memory Depth：28Mpts (STO1000C) / 70Mpts (STO1000E)
Analog Channels：2
Waveform Update Rate (Max)：130,000 wfms/s
-
Features
-
Specifications
-
Documents

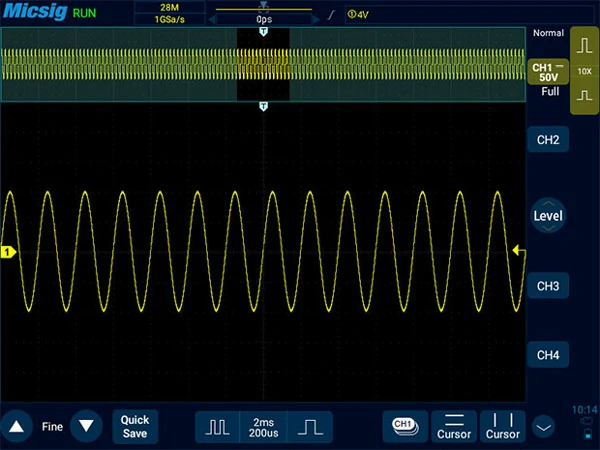

Up to 70Mpts memory depth, Zoom into a selected part of the captured waveforms to get more details.

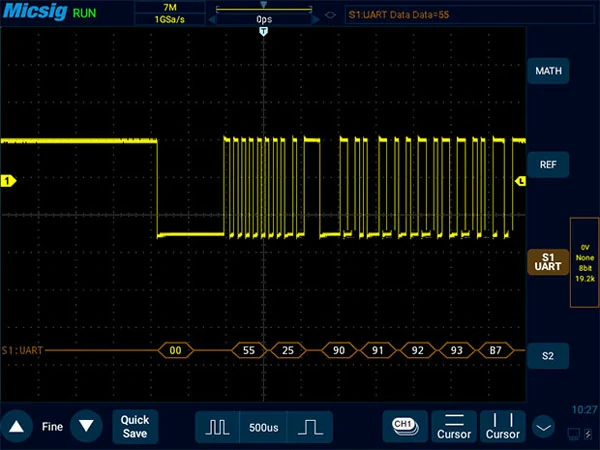

Support serial triggering and decode (I2C, SPI, RS232/UART,CAN, LIN) and Aerospace and defence (MIL-STD 1553, ARINC 429). Two formats to display decoding, text and graphic.

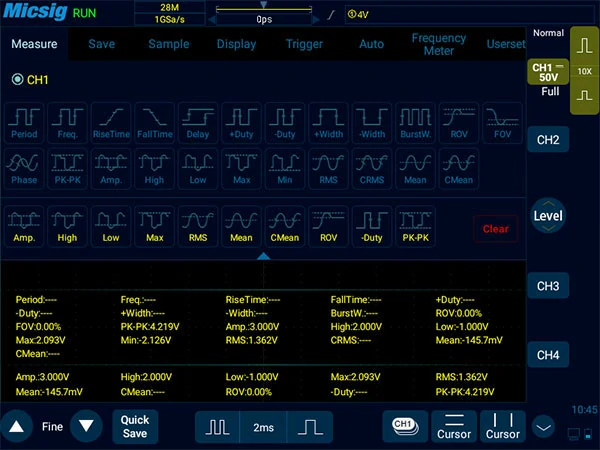

31 automatic measurements. Various automatic measurements can meet different measurement demand. It can be display all in one page.

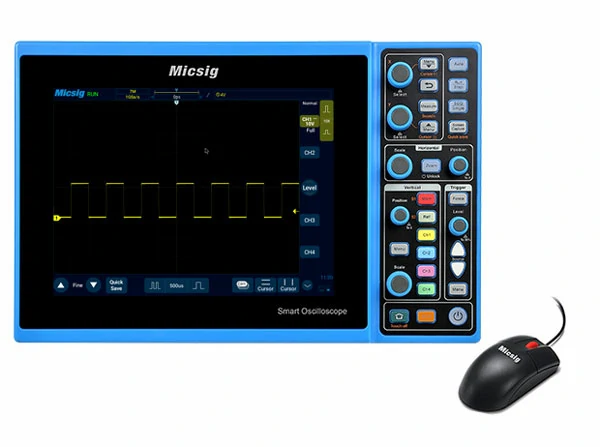

STO1000C&E also support wireless or wired mouse operation for touch-free scenarios.

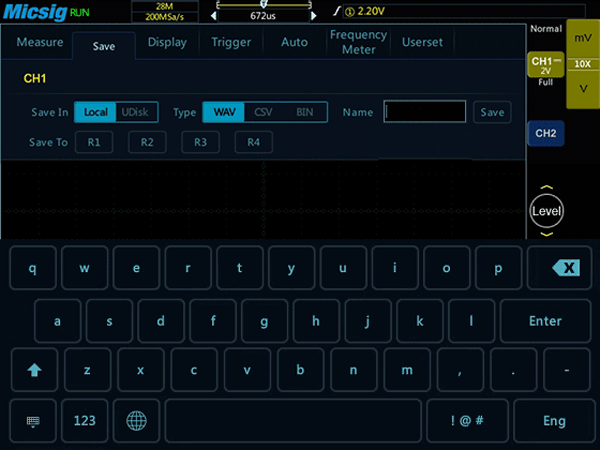

Use software keyboard to save the file name or input the license fast.

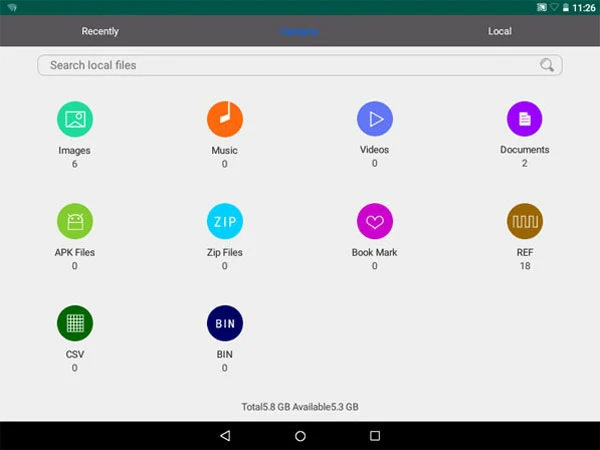

Built in 8G storage and unique file management system.

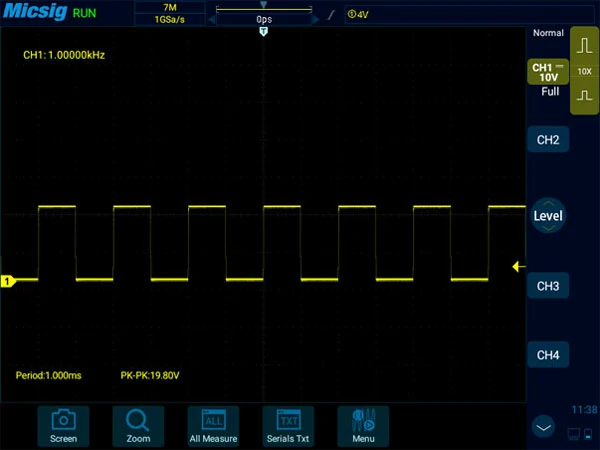

Support video record, quick save, screen shot, one button fast operation.

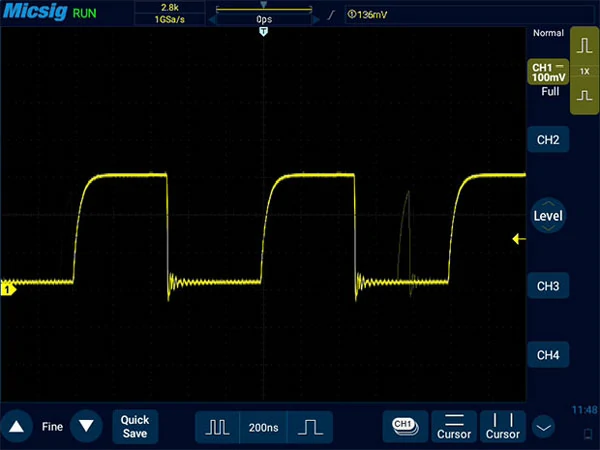

Maximum 130,000wfm/s capture rate. By increasing the waveform capture rate, you see a more complete picture of what is going on with the signal.

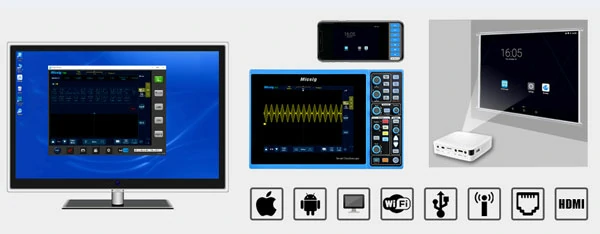

Support PC, Smart phone App (Android & iOS) remote control and HDMI connection for education or public presentation.
Model | STO1102C (Discontinued) | STO1152E (Discontinued) | STO1102E (Discontinued) | STO1152E (Discontinued) |
Bandwidth | 100MHz | 150MHz | 100MHz | 150MHz |
Analog channels | 2 | |||
Real-time sampling rate | 1GSa/s | |||
Memory depth | 28Mpts | 70Mpts | ||
Waveform capture rate (Max) | 80,000 wfms/s | 130,000 wfms/s | ||
Bandwith limitation | 20MHz, High pass, Low pass | |||
Interfaces | Wi-Fi、LAN、HDMI、USB Host、USB Device、GND、DC Power | |||
Display | 8" TFT LCD capacitive touch screen, 800*600 pixels, 14*10 grids | |||
Dimension | 280*180*50mm | |||
User Manual - Smart Oscilloscope STO1000C／E (EOL)
File size： 7.97 MB
Update time： 2026-08-04

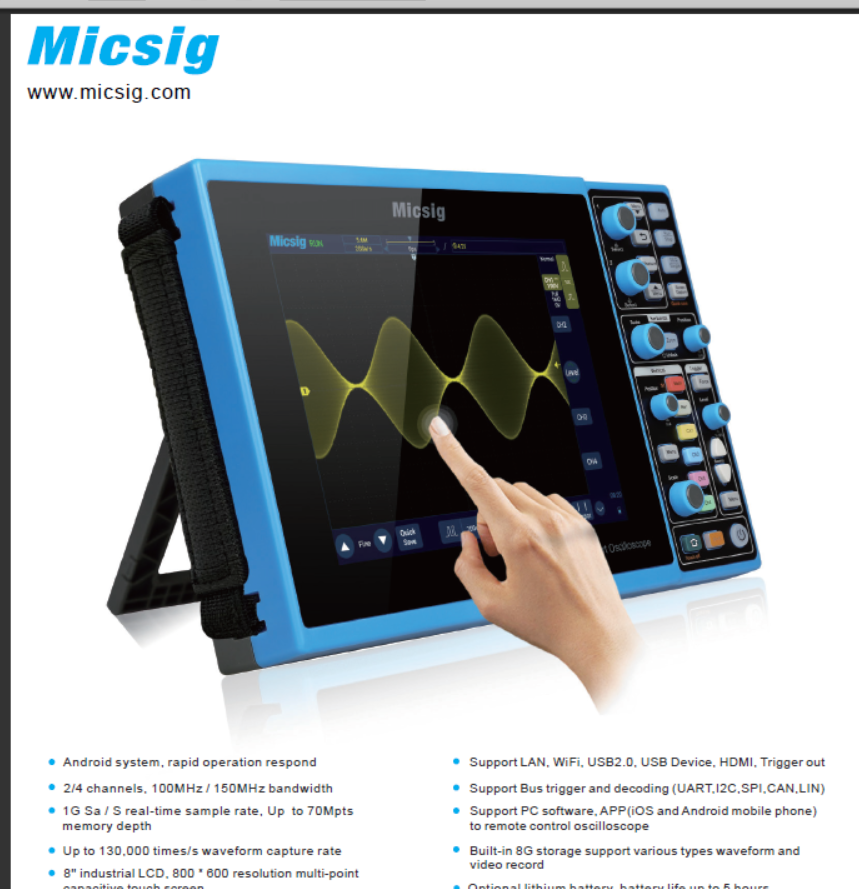

Datasheet - Smart Oscilloscope STO1000C／E (EOL)
File size： 11.23 MB
Update time： 2026-08-04
