AC/DC Current Probe
High Frequency AC/DC Current Probe CP series

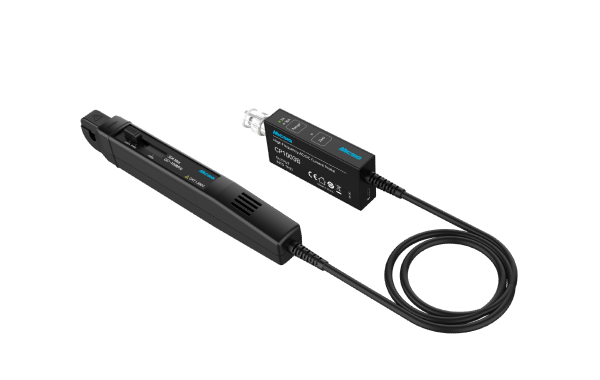

High Frequency AC/DC Current Probe
CP Series (Small Current)

Max. Bandwidth: 150MHz
Max. Measurable Current: 30Arms, 50Apk
Accuracy (typical): 1%
Max. Conductor Diameter: 5mm
Interface: BNC

sales@micsig.com

Overview
Document
Download

Features
Specifications
Documents

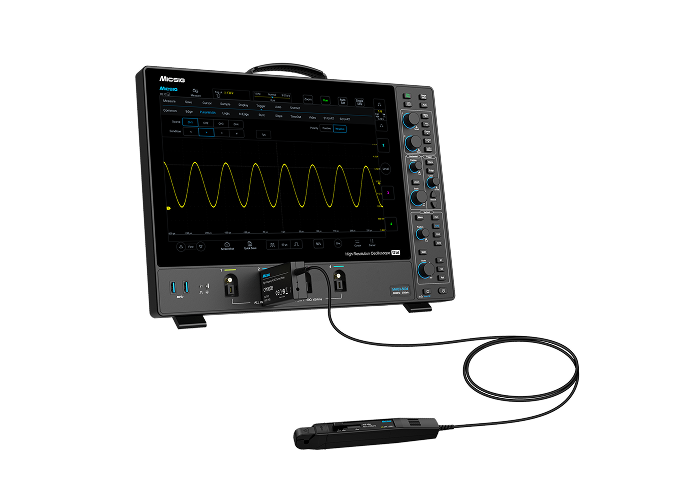

Product Overview

Micsig CP Series features 1% accuracy and 1 mA resolution for precise waveform capture and reliable measurements.A dual-range design covers both small-signal detection and high-current transient analysis, helping engineers optimize their designs. Featuring 5 mm jaw, one-button degauss/auto-zero, and a built-in overcurrent alarm, the CP Series ensures easy operation and safety. The standard BNC interface is compatible with most oscilloscope brands, making it ideal for new energy and industrial electronics testing.

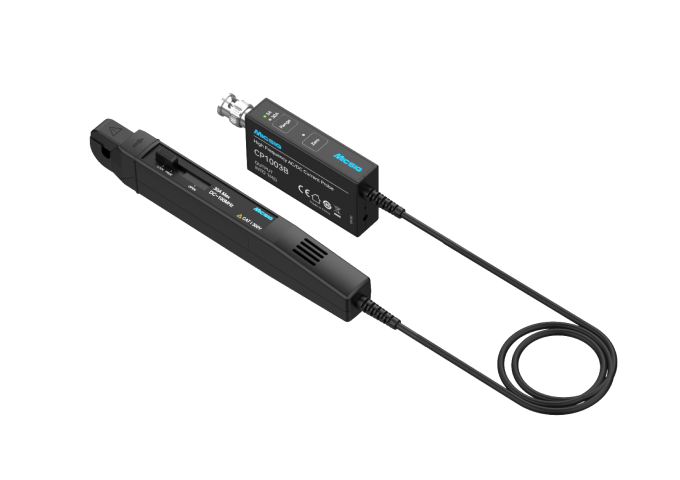

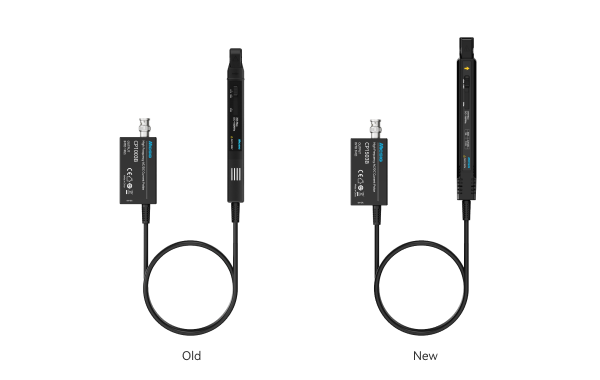

* Product appearance may vary by version without affecting performance or functionality.

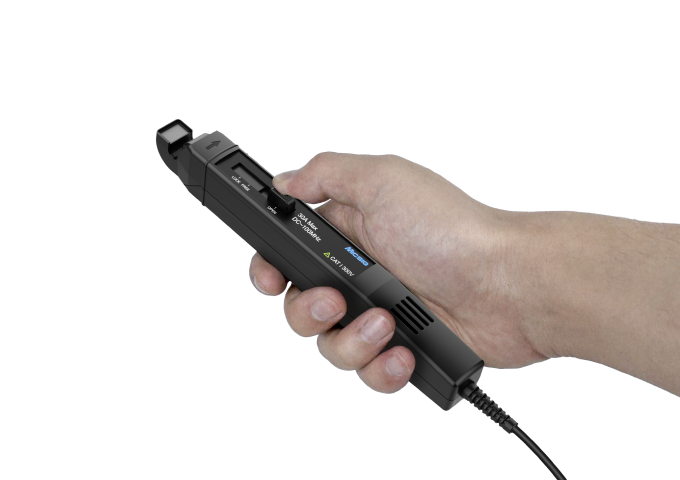

Excellent Design

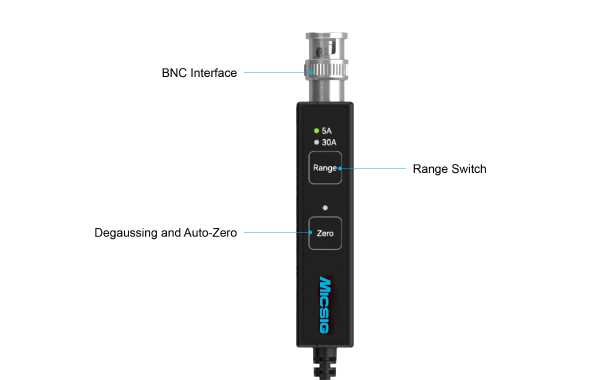

Auto Degaussing and Zero: effortless, efficient, and precise.

Overcurrent alarm for safe range switching and reliable protection.

Standard BNC interface compatible with most oscilloscope brands.

HF Current Signal Measurements

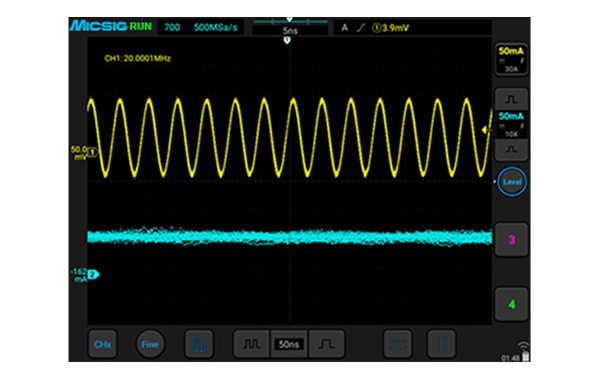

Accurate measurement capability on high-frequency signals >20MHz. (CH1 Yellow, measured with the CP1003B).

Same signal completely distorted when measured by low-frequency probe. (CH2 Blue).

Observe Surge Current

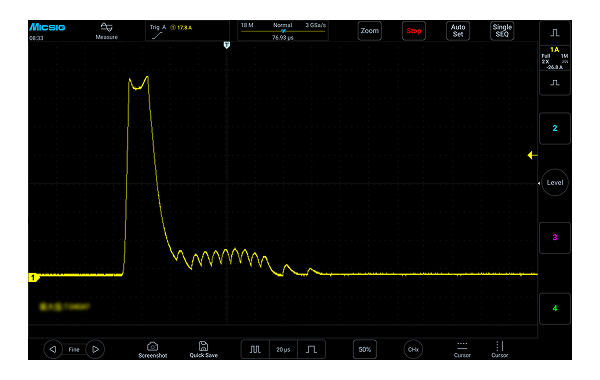

Accurately capture the surge current waveform when the power adapter starts (Measured with the CP503B).

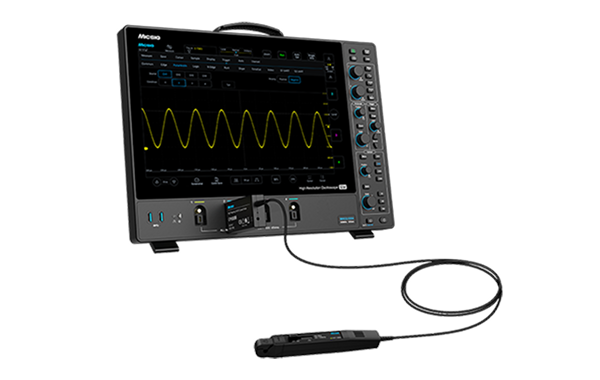

Applications

● Electric vehicle transportation design
● Switching power supply design
● Experiment of electronic engineering
● Semiconductor devices design
● Avionics design
● Inverter/Transformer design
● Electronic ballast design
● Industrial Control / Consumer Electronics design
● Engine driven design
● Power electronics and electric drive experimental design

Model	CP1503B	CP1003B	CP503B
Bandwidth	DC~150MHz	DC~100MHz	DC~50MHz
Rise Time	≤2.67ns	≤ 3.5ns	≤ 7ns
Ranges	5Arms (5A) 30Arms (30A)	5Arms (5A) 30Arms (30A)	5Arms (5A) 30Arms (30A)
Max.current Input	30Arms，50Apk	30Arms, 50Apk	30Arms, 50Apk
Accuracy (Max. continuous current @ DC and 45-66Hz)	±1% ±1mA（5A) ±1% ±10mA（30A)	±1% ±1mA (5A) ±1% ±10mA (30A)	±1% ±1mA (5A) ±1% ±10mA (30A)
Lowest Measurable Current	1mA（5A) 10mA（30A)	1mA (5A) 10mA (30A)	1mA (5A) 10mA (30A)
Noise	≤400μArms (5A) ≤120μArms (30A)	< 4mApp (5A) < 30mApp (30A)	< 4mApp (5A) < 30mApp (30A)
Output Sensitivity	1V / 1A（5A，1X ) 1V / 10A（30A，10X	1V / 1A (5A, 1X) 1V / 10A (30A, 10X)	1V / 1A (5A, 1X) 1V / 10A (30A, 10X)
Overcurrent Alarm Value	≥ 7Apk（5A） ≥ 50ApK（30A）	≥ 7Apk (5A) ≥ 50ApK (30A)	≥ 7Apk (5A) ≥ 50ApK (30A)
Max.conductor Diameter	5mm
Power Supply	DC 12V
Interface	Universal BNC
