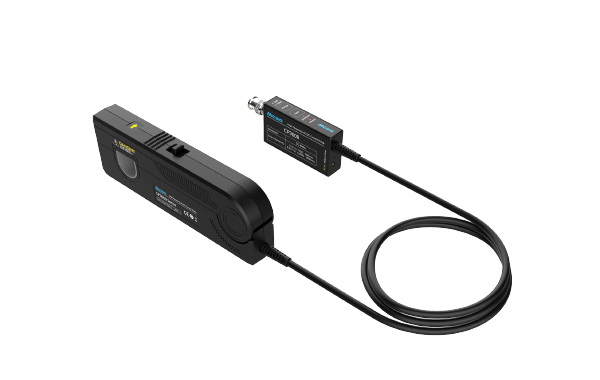

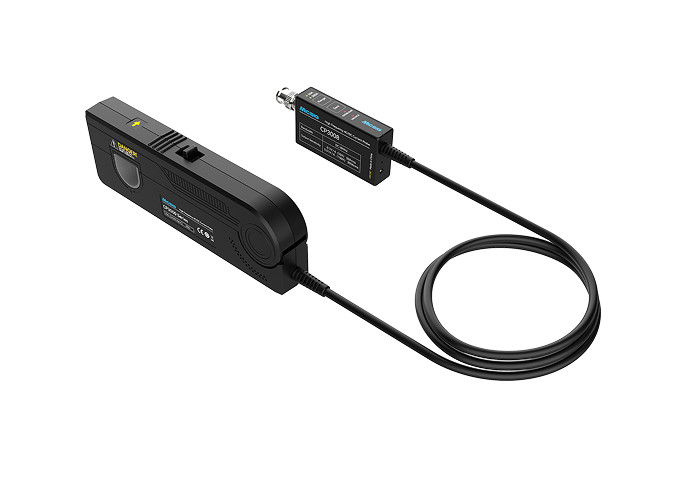

High Frequency AC/DC Current Probe AC/DC Current Probe

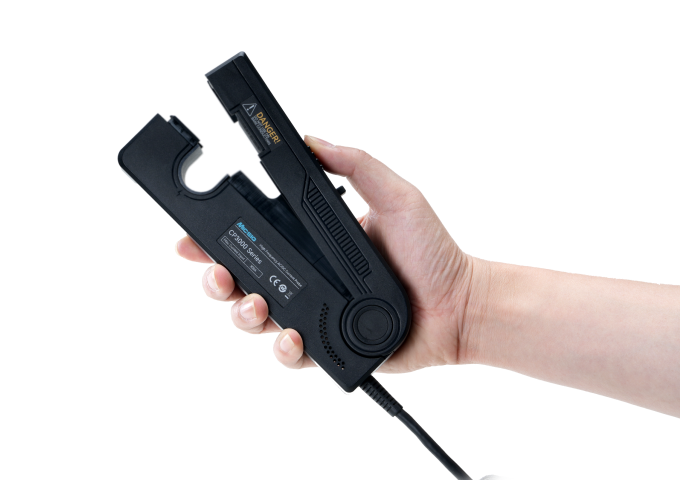

Micsig CP Series features 1% accuracy and 10 mA resolution for precise waveform capture and reliable measurements.A dual-range design covers both small-signal detection and high-current transient analysis, helping engineers optimize their designs. Featuring 20 mm jaw, one-button degauss/auto-zero, and a built-in overcurrent alarm, the CP Series ensures easy operation and safety. The standard BNC interface is compatible with most oscilloscope brands, making it ideal for new energy and industrial electronics testing.

Excellent Design

Auto Degaussing and Zero: effortless, efficient, and precise.

Overcurrent alarm for safe range switching and reliable protection.

Standard BNC interface compatible with most oscilloscope brands.

Easy to Handle Hign Current Measuremnets

It supports the measurement of large currents up to 300Arms and accurately captures AC signals.

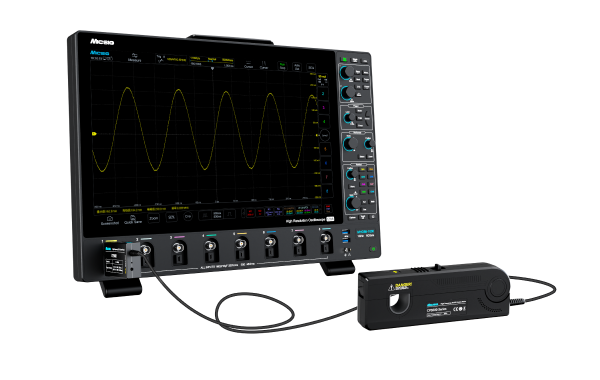

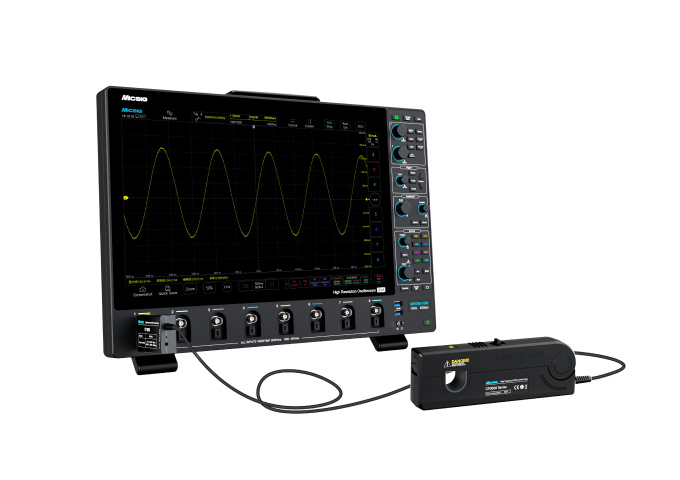

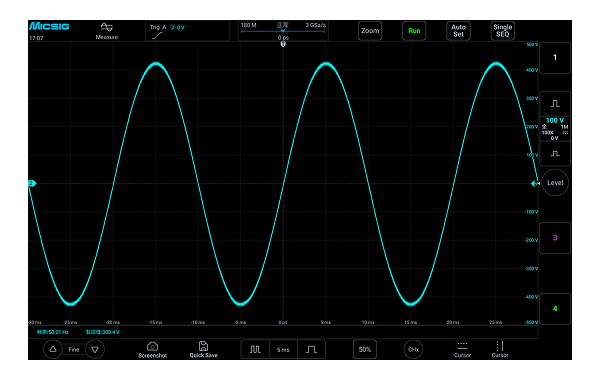

(The figure on the left shows the measurement of 300Arms high-current signals using the CP3008).

Applications

● Electric vehicle transportation design
● Switching power supply design
● Experiment of electronic engineering
● Semiconductor devices design
● Avionics design
● Inverter/Transformer design
● Electronic ballast design
● Industrial Control / Consumer Electronics design
● Engine driven design
● Power electronics and electric drive experimental design
