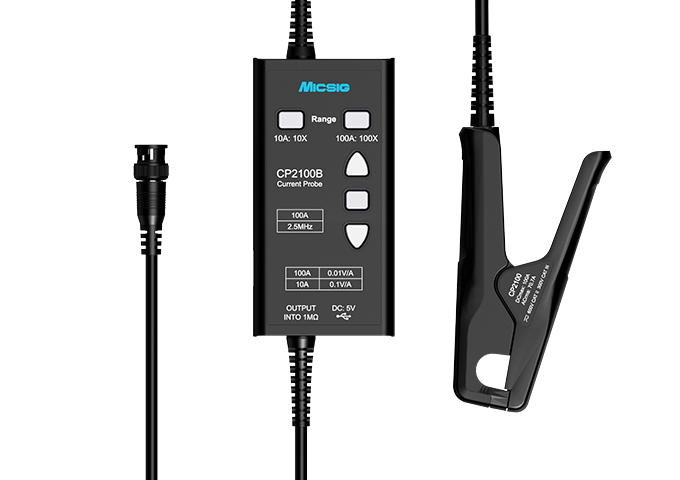

Low Frequency AC/DC Current Probe AC/DC Current Probe
Bandwidth: DC~2.5MHz
Max. measurable Current: 100Apk(70.7Arms)
Power Supply: USB DC 5V
Interface: BNC
-
Features
-
Specifications
-
Documents
Auto & Manual "Zero" function.

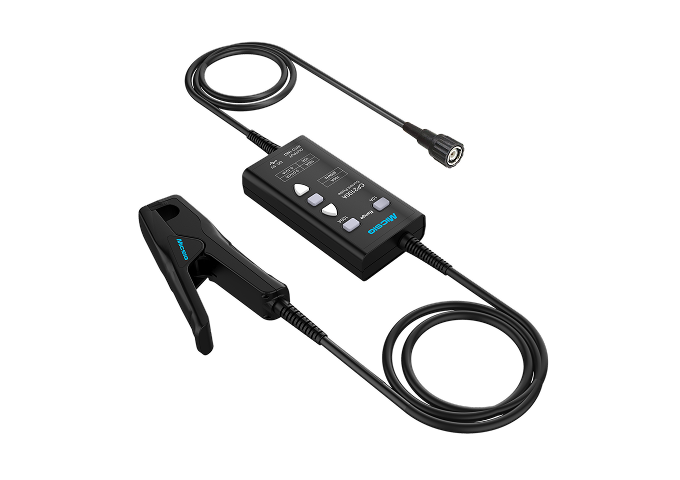

Split design, small and exquisite appearance, easy to test.

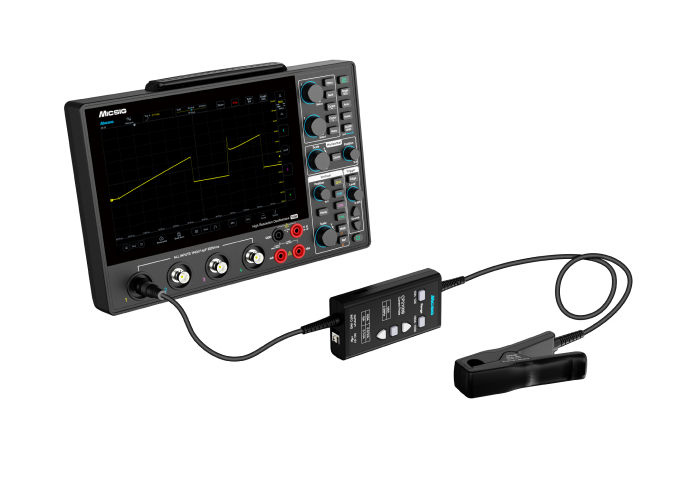

Directly powered by USB port on oscilloscope, no extra adapter needed.

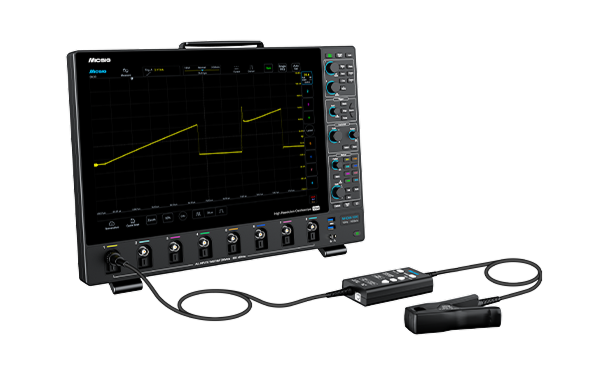

Compatible with all BNC-connected oscilloscopes, adapters can also work with multimeters.

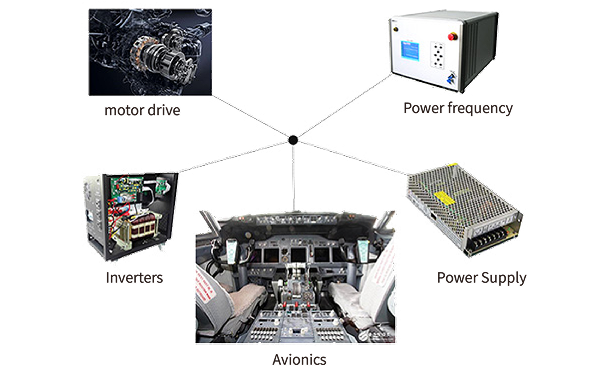

Widely used in motor drives, industrial frequency, inverters, power supplies, avionics and other fields.
Model | CP2100A | CP2100B |
Bandwidth | DC~800kHz | DC~2.5MHz |
Rise Time | ≤ 437.5ns | ≤ 140ns |
Ranges | 10A/100A | 10A/100A |
Output Sensitivity | 0.1V/A (10A) | 0.1V/A (10A) |
DC Accuracy (typical) | 3%±50mA (10A) | 3%±50mA (10A) |
Signal Delay | 100ns | 100ns |
Current Measurement Range | 50mA~10Apk (10A, 10X) | 50mA~10Apk (10A, 10X) |
Max. measuring Current | 100Apk,70.7Arms (DC+ACpk) | 100Apk,70.7Arms (DC+ACpk) |
Max. working Voltage | CAT Ⅲ 300V CAT Ⅱ 600V | CAT Ⅲ 300V CAT Ⅱ 600V |
Max. float Voltage | CAT Ⅲ 300V CAT Ⅱ 600V | CAT Ⅲ 300V CAT Ⅱ 600V |
Max. conductor Diameter | 13mm | 13mm |
Overload Alarm | Buzzer beeps | Buzzer beeps |
Power Supply | DC-5V | DC-5V |
Interface | Universal BNC | Universal BNC |
Remark: The CP2100 series has changed external color from Blue to Black since March 2024, while performance remains unchanged.
Brochure - Low Frequency AC／DC Current Probe CP2100 series
File size： 979.21 KB
Update time： 2026-08-04
Quick Guide -AC pcecurent Probe CP2100 series
File size： 726.71 KB
Update time： 2026-08-04
